Gree FGR20Pd/D1Na-X(Au) 20.0kW Splittable Ducted System Air Conditioner

Gree FGR20Pd/D1Na-X(Au) | FGR20Pd/D1Na-X(Au)O 20.0kW Splittable Ducted System Air Conditioner

Gree FGR20Pd/D1Na-X(Au) | FGR20Pd/D1Na-X(Au)O 20.0kW Splittable Ducted System Air Conditioner indoor

Gree FGR20Pd/D1Na-X(Au) | FGR20Pd/D1Na-X(Au)O 20.0kW Splittable Ducted System Air Conditioner outdoor

Gree FGR20Pd-D1Na-X(Au) -FGR20Pd-D1Na-X(Au)O 20.0kW Splittable Ducted System Air Conditioner controller

Gree FGR20Pd/D1Na-X(Au) 20.0kW Splittable Ducted System Air Conditioner

0 out of 5

$6,599.00

20.0 kW Cooling | 22.4 kW Heating | 3 Phase

Gree FGR20Pd/D1Na-X(Au) | FGR20Pd/D1Na-X(Au)O 20.0kW Inverter Ducted System
Includes Indoor FGR20Pd/D1Na-X(Au)I | Outdoor FGR20Pd/D1Na-X(Au)O | R410A | Splittable
Wired Controller | Higher Efficiency | Anti-Cold Function | Intelligent defrosting | Wide Operation Range
6 Year Manufacturer’s Warranty

SKU: FGR20Pd/D1Na-X(Au)I _ FGR20Pd/D1Na-X(Au)O

Or own it from $253.81 weekly for 6 months*

Or pay in slices, no interest ever

Add to Wishlist

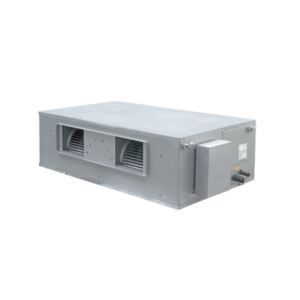

Indoor

Product Group :	Ducted Systems – Gree

Additional Info

Indoor/ Outdoor/ Other :	Indoor	Single Split / Multi Split :	Single Split

Air Volume/Air Flow

Air Volume :	1222 m³/h

Cooling Capacity

Cooling Capacity :	20 kW	Cooling Capacity (Min/Rated/Max) :	10 /20 /25 kW

Electrical

Max Current :	11.3 A	Power Supply :	220-240/1/50 V/Ph/Hz
Voltage :	230 V

Energy Efficiency/Performance

COP :	3.25	EER :	2.55

General Information

Condensate Water Pump Provided :	No	Model Number :	AC5720/I
Remote Control :	ya1PF

Heating Capacity

Heating Capacity :	22.4 kW	Heating Capacity (Min/Rated/Max) :	10/22.4/30 kW

Measurements

Depth :	870 mm	Height :	440 mm
Net Weight :	110 kg	Width :	1690 mm

Pipes

Pipe Dimension :	3/4 in, 3/8 in, 9.52 mm, 19.05 mm

Refrigerant

Refrigerant :	R410A	Refrigerant Pipe Size :	3/8-3/4 in, 9.52-19.05 mm

Sound Power/Pressure

Sound Pressure Level (Low/Medium/High/Quiet) :	52 dB(A)

Wire

Wire Diameter Interconnection Cable :	2C + E

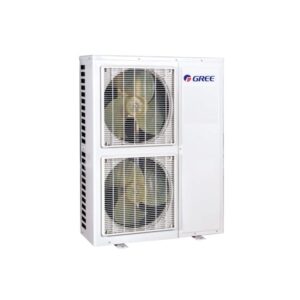

Outdoor

General

Product Group :	Ducted Systems – Gree

Additional Info

Indoor/ Outdoor/ Other :	Outdoor	Indoor Units Connectable (Quantity) :	1
Single Split / Multi Split :	Single split

Cooling Capacity

Cooling Capacity :	20 kW

Electrical

Power Consumption Cooling :	6.06 kW	Power Consumption Heating :	6 kW
Power Input (Heating/Cooling) :	6/6.06 kW	Power Supply :	415/3/50 V/Ph/Hz
Recommended Fuse :	32 A	Voltage :	415 V

Fan

Number Of Fans :	2

General Information

Model Number :	AC5720/O

Heating Capacity

Heating Capacity :	22.4 kW

Measurements

Depth :	460 mm	Height :	1615 mm
Weight :	155 kg	Width :	940 mm

Pipes

Max Height Difference :	30 m	Max Piping Length :	50 m
Pipe Dimension :	3/4 in, 3/8 in, 9.52 mm, 19.0 mm	Total Pipe Length Range :	50 m

Refrigerant

Additional Charge :	54 g/m	Refrigerant :	R410A
Refrigerant Charge :	6.7 kg	Refrigerant Pipe Size :	3/8-3/4 in, 9.52-19.05 mm
Refrigerant precharged up to :	30 m

Sound Power/Pressure

Sound Pressure Level :	60 dB(A)

Temperature

Temperature Range Cooling :	16 – 30 °C	Temperature Range Heating :	16 – 30 °C

Higher Efficiency
Compact structure
CAN Bus communication
High and Adjustable ESP
Wide operation ranges for both temp and voltage
Refrigerant cooling technology
Optimized fan blade and motor support
Condenser simulation design

Description

20.0 kW Cooling
22.4 kW Heating

Higher Efficiency | Anti-Cold Function | Intelligent defrosting | Splittable

Q1: What are the main features of the Gree Splittable Ducted System Air Conditioner?

The Gree Splittable Ducted System Air Conditioner features higher efficiency, a compact structure, high and adjustable ESP, CAN Bus communication, intelligent defrosting, anti-cold function and a wide operating range. It includes a wired controller and is designed as a splittable 3-phase ducted system.

Q2: Is the Gree Splittable Ducted System Air Conditioner energy efficient?

Yes. The Gree Splittable Ducted System Air Conditioner uses inverter technology, optimised fan blade and motor design, refrigerant cooling technology and a condenser simulation design to support efficient operation. It provides 20.0 kW cooling and 22.4 kW heating capacity.

Q3: Does the Gree Splittable Ducted System Air Conditioner have smart control technology?

The Gree Splittable Ducted System Air Conditioner uses CAN Bus communication to support reliable communication between system components and includes a wired controller for convenient operation. Its high and adjustable ESP also provides flexibility when configuring the ductwork.

Q4: Is the Gree Splittable Ducted System Air Conditioner suitable for large spaces?

Yes. The Gree Splittable Ducted System Air Conditioner is designed for larger residential and commercial spaces requiring high-capacity heating and cooling. Its adjustable ESP, wide temperature and voltage operating ranges, compact structure and splittable design provide installation flexibility for different ducted applications.

Q5: Not sure what size air conditioner you need?

Use our free Air Conditioning Calculator & Size Guide as a starting point to estimate the right capacity for your room or home. Please note this calculator is a guide only — actual requirements may vary depending on your ceiling height, insulation, window size, orientation, and local climate conditions.

For a more accurate sizing recommendation tailored to your specific home or office, we recommend booking a quote with our team. Our air conditioning experts will assess your space and help you choose the perfect Gree Splittable Ducted System Air Conditioner unit with confidence — ensuring maximum comfort, efficiency, and value for money.

For more information about the Gree Splittable Ducted System Air Conditioner Series, and available models, click here.
