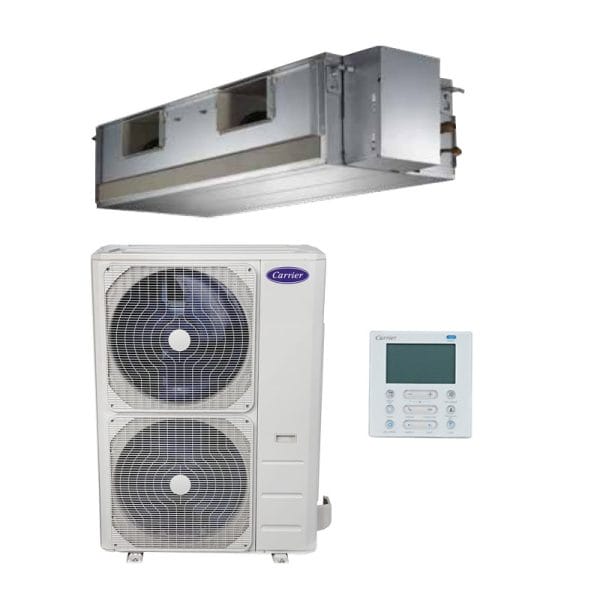

Carrier 42QSH125D8S / 38QSH125D8S 12kW Inverter High Static Ducted System | QSH Series

SKU: 42SHDV125 / 38SHDV125

Carrier 42QSH125D8S / 38QSH125D8S 12kW Inverter High Static Ducted System | QSH Series




  INDOOR   42QSH125D8S
  OUTDOOR   38QSH125D8S
  Refrigerant type   R32
Power supply (Volts-Phase-Hz)   220-240V /1/50Hz






COOLING

Capacity – rated kW 12.00
Capacity – range (min ~ max) kW 4.08 ~ 16.43
Efficiency (rated) EER 3.23
Operating current (rated) A 15.51






HEATING

Capacity – rated kW 12.25
Capacity – range (min ~ max) kW 3.33 ~ 18.42
Efficiency (rated) COP 3.93
Operating current (rated) A 13.11




INDOOR UNIT

Dimension (WxDxH) mm 1200x625x380
Net weight kg 54.3
Airflow volume (H/M/L) m3/h 3545/2740/1845
ESP Rated / max Pa 50 / 200








OUTDOOR UNIT

Dimension (WxDxH) mm 952x415x1333
Net weight kg 97.7
Operating noise (sound power) (H) dBA (@swl)

70

Cooling usable temperature range ˚C 0~50
Heating usable temperature range ˚C -20~24












PIPE SIZE

Liquid line Ø (mm) 9.52
Gas line Ø (mm) 15.9
Coupler style flare
Drain (inside diameter) Ø mm 21
Maximum length m 75
Chargeless length m 15
Maximum height difference m 30

High static ducted are ideal for residential applications, where ducts run to numerous outlets.

  • Concealed installation
  • Static pressure of 200Pa
  • Long ducted connection
  • Constant air volume technology for optimal
    airflow
  • Quiet operation
  • Easy to install and maintain
  • 5 year warranty

Description

12.0 kW Cooling
12.2 kW Heating

Low Profile Design | R32
