Gree GUD140PHS/B-S / GUD140W/NhB-S 13.8kW Inverter Ducted System


Gree GUD140PHS/B-S / GUD140W/NhB-S 13.8kW Inverter Ducted System

Type Ducted


Indoor GUD140PHS/B-S

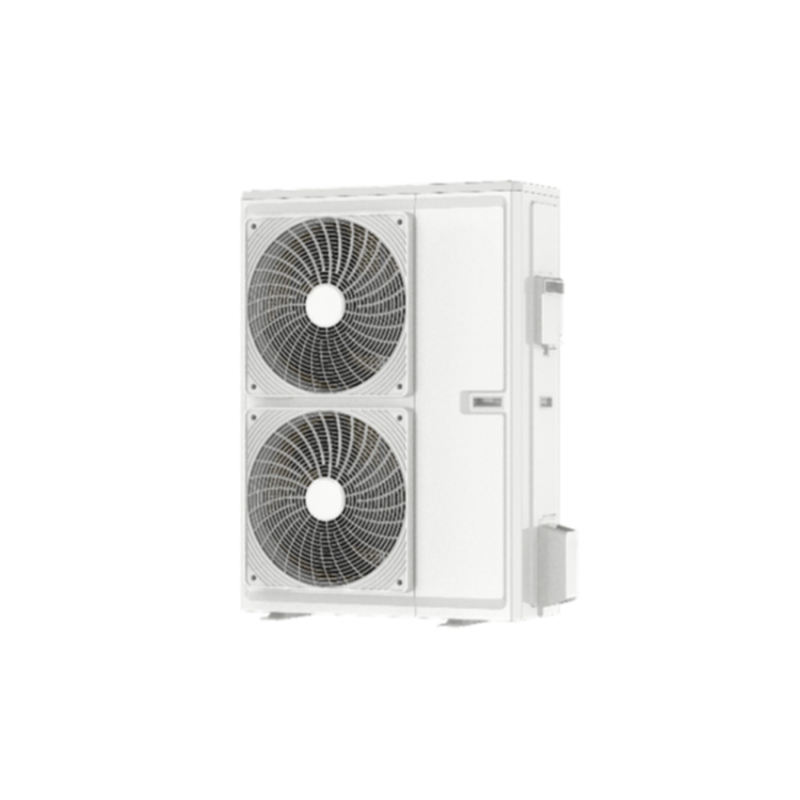

Outdoor GUD140W/NhB-S

Capacity H1

Cooling kW 13.8
Heating kW 16.0


Cooling kW 6.8~16
Heating kW 4.5~17

Power input H1

Cooling kW 4.3
Heating kW 4.35
AEER / ACOP W/W 3.21 / 3.68

SEER Label Stars



Cool Heat 3.0 / 3.0 / 3.0

3.0 / 1.5 / 1.0


Operation temp

Cooling °C –15 ~ 52
Heating °C –15 ~ 24

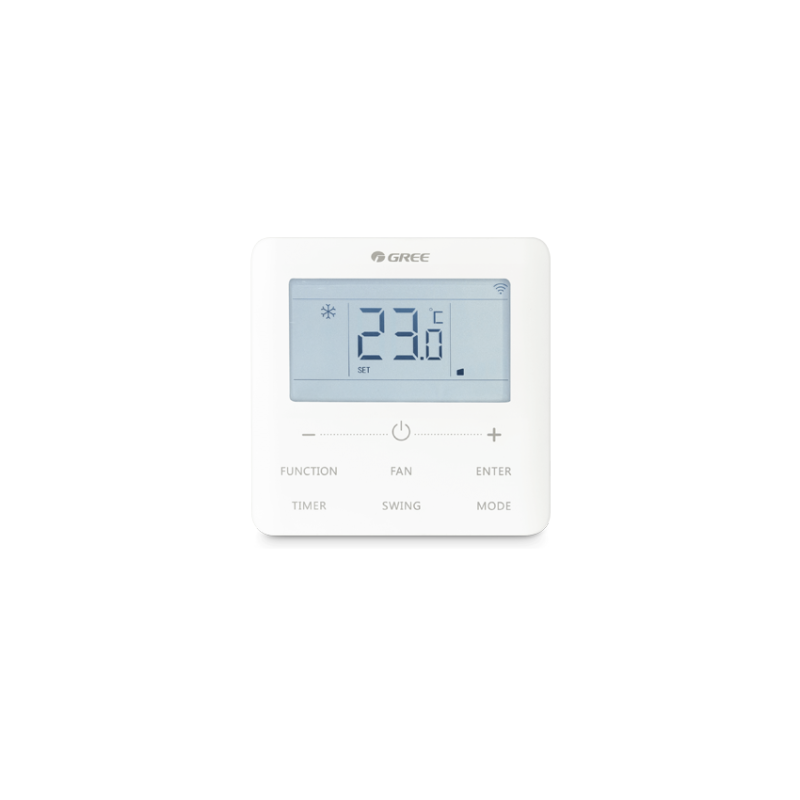

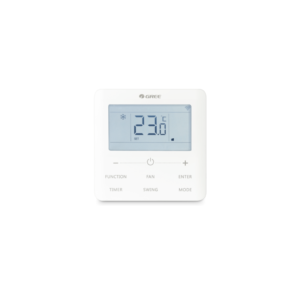

System Operation Control Standard, XE71-42G wired controller
Air Flow Volume (rated ESP) l/s 611


Rated Pa 50
Range Pa 10~200
Sound Pressure Level (L/M/H/SH) dB (A) 41 / 44 / 47 / 49
Sound Power Level Outdoor dB (A) 69
Power Supply V-Hz-Ph 220-240-50 / 60-1
Recommended Circuit Breaker A 40

Input Current

Cooling A 20.1
Heating A 20.3
Indoor Dimensions (W×D×H) mm 1400x700x300
Outdoor Dimensions (W×D×H) mm 900x340x1350
Indoor Net Weight kg 57
Outdoor Net Weight kg 106
Drain Connection mm Pump Φ 25mm, Gravity Drain Φ 20mm
Condensate Pump Lift & Head mm 1000
Connection Type Flare

Outer Diameter

Liquid Pipe mm (in) 9.52 (3 / 8″)
Gas Pipe mm (in) 15.88 (5 / 8″)
Max Pipe Distance Height m 30*
Length m 75


Refrigerant R32

Charge kg 4.1
Pre-charged m 20
Additional gas charge g/m 35
Power Supply Outdoor Unit mm² 3 x 6.0
Power Interconnection mm² 3 x 1.0
Communication wiring mm² 2 x 0.75
Wall Controller wiring mm² 2 x 0.75

Plenum opening

Supply WxH mm 1151 x 197
Return WxH mm 1362 x 264

Adjustable ESP

Indoor units on the Gree Ducted Air Conditioning System all come with adjustable static pressure that can be adjusted on the controller during commissioning to ensure the best air flow and maximum comfort. There are 9 steps ranging from 10 to 200pa.

Superb Comfort Options

The Gree Ducted system comes with several features for greater user comfort. The “I-Feel” mode on the controller allows for accurate temperature sensing around the user. The user can select between this and the return air sensor in the unit to control the operation the air conditioner, therefore selecting the best degree of comfort. Gree Ducted Systems also have the ability to operate using dual controllers, i.e. one controller positioned in the living area and one in the master bedroom, thus providing convenient AC control.

Also Available

The new Gree Zone Control allows you to control the temperature in individual rooms from one central controller. For a quick and easy installation, Gree can supply duct kits (page 15) that include ducts, dampers and diffusers.

Compact and powerful, the Gree Ducted System offer the ultimate in flexibility and discretion.

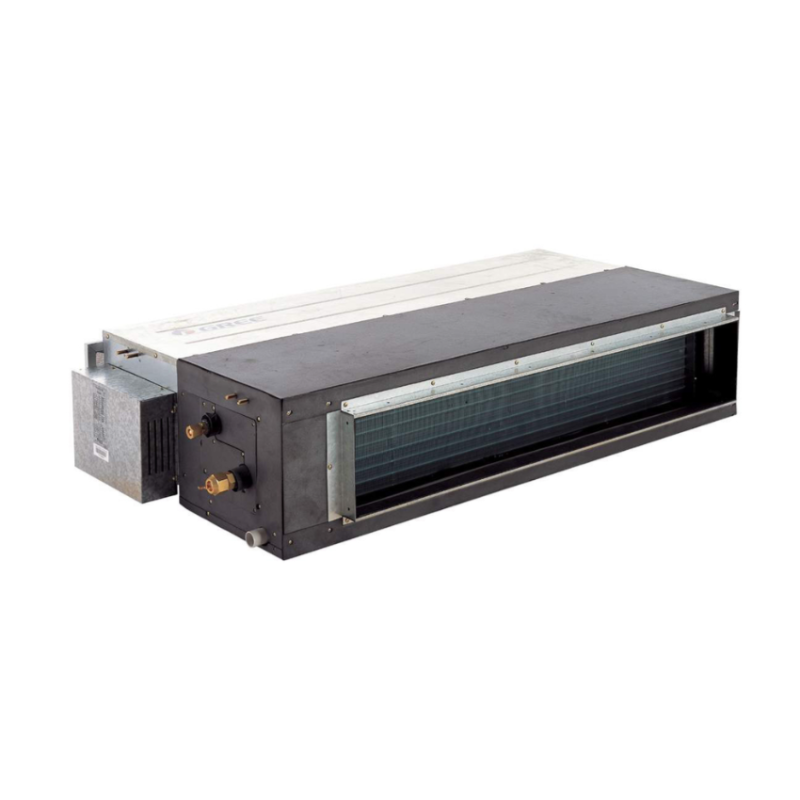

These slim indoor units are designed to be concealed above suspended ceilings or within open closet spaces to deliver conditioned air via ducting and suitable ceiling or wall grilles.


13.8 kW Cooling
16.0 kW Heating

I-Feel Mode | R32 | Low Noise
