Power input H1
|AEER / ACOP||W/W||3.33 / 3.5|
SEER Label Stars
|Cool Heat||3.0 / 3.0 / 3.0
3.0 / 2.0 / 1.5
|Cooling||°C||–15 ~ 52|
|Heating||°C||–15 ~ 24|

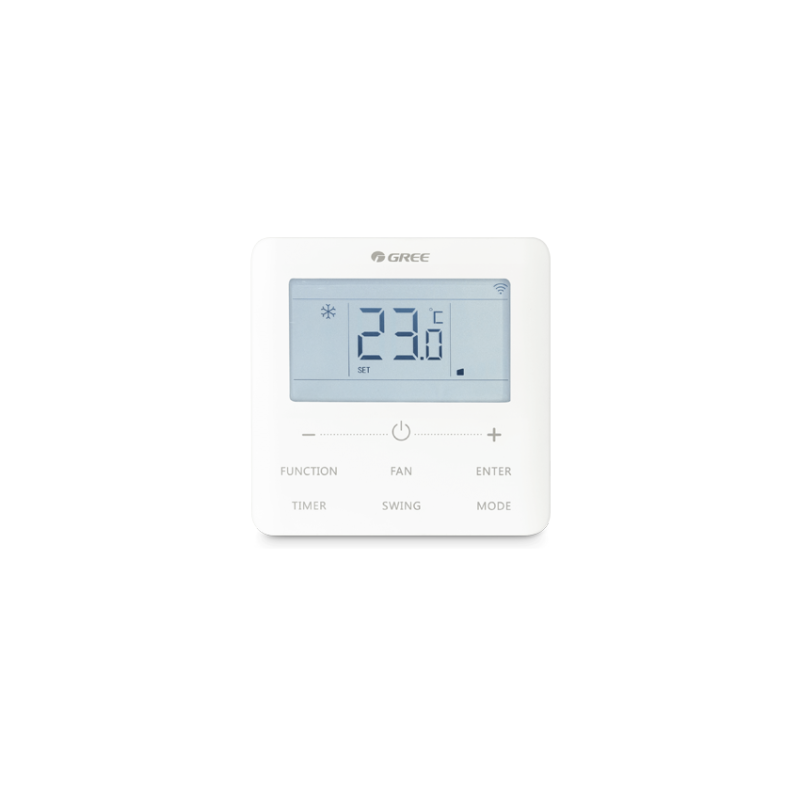

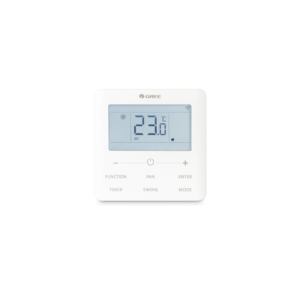

|System Operation Control||–||Standard, XE71-42G wired controller|
|Air Flow Volume (rated ESP)||l/s||555|
|Sound Pressure Level (L/M/H/SH)||dB (A)||41 / 42 / 43 / 47|
|Sound Power Level Outdoor||dB (A)||68|
|Power Supply||V-Hz-Ph||220-240-50 / 60-1|
|Recommended Circuit Breaker||A||32|
|Indoor Dimensions (W×D×H)||mm||1400x700x300|

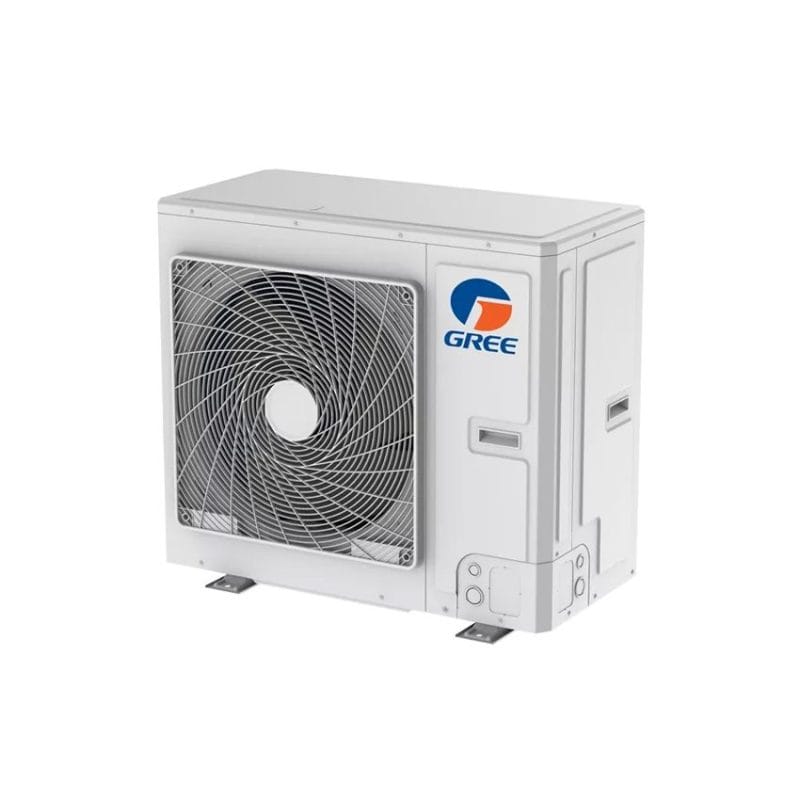

|Outdoor Dimensions (W×D×H)||mm||940x460x820|
|Indoor Net Weight||kg||57|
|Outdoor Net Weight||kg||92|
|Drain Connection||mm||Pump Φ 25mm, Gravity Drain Φ 20mm|
|Condensate Pump Lift & Head||mm||1000|
|Liquid Pipe||mm (in)||9.52 (3 / 8″)|
|Gas Pipe||mm (in)||15.88 (5 / 8″)|
|Max Pipe Distance||Height||m||30*|
|Additional gas charge||g/m||35|
|Power Supply||Outdoor Unit||mm²||3 x 4.0|
|Power Interconnection||mm²||3 x 1.0|
|Communication wiring||mm²||2 x 0.75|
|Wall Controller wiring||mm²||2 x 0.75|
|Supply WxH||mm||1151 x 197|
|Return WxH||mm||1362 x 264|
Indoor units on the Gree Ducted Air Conditioning System all come with adjustable static pressure that can be adjusted on the controller during commissioning to ensure the best air flow and maximum comfort. There are 9 steps ranging from 10 to 200pa.
Superb Comfort Options
The Gree Ducted system comes with several features for greater user comfort. The “I-Feel” mode on the controller allows for accurate temperature sensing around the user. The user can select between this and the return air sensor in the unit to control the operation the air conditioner, therefore selecting the best degree of comfort. Gree Ducted Systems also have the ability to operate using dual controllers, i.e. one controller positioned in the living area and one in the master bedroom, thus providing convenient AC control.
The new Gree Zone Control allows you to control the temperature in individual rooms from one central controller. For a quick and easy installation, Gree can supply duct kits (page 15) that include ducts, dampers and diffusers.

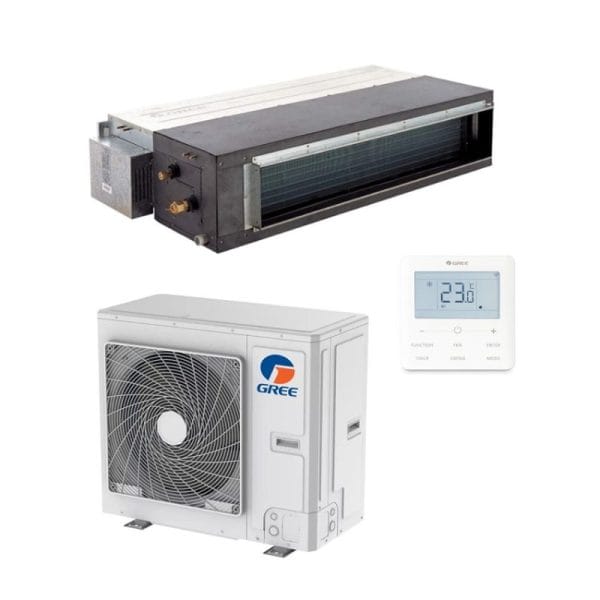

Compact and powerful, the Gree Ducted System offer the ultimate in flexibility and discretion.

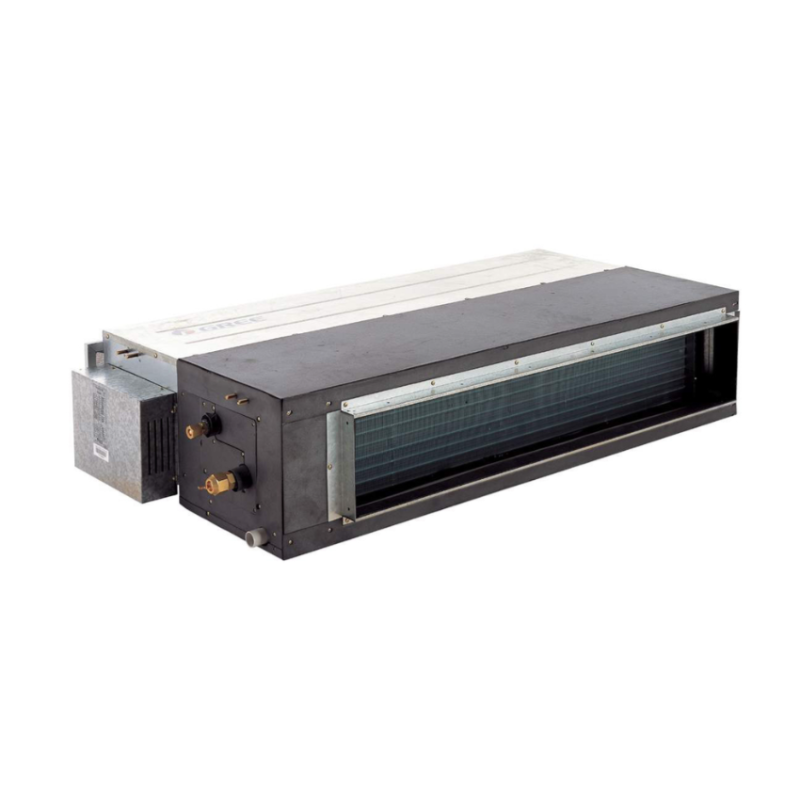

These slim indoor units are designed to be concealed above suspended ceilings or within open closet spaces to deliver conditioned air via ducting and suitable ceiling or wall grilles.
12.5 kW Cooling
13.5 kW Heating
I-Feel Mode | R32 | Low Noise
