Carrier 42QSH090D8S / 38QSH090D8S 8.6kW Inverter High Static Ducted System | QSH Series

SKU: 42QSH090D8S / 38QSH090D8S

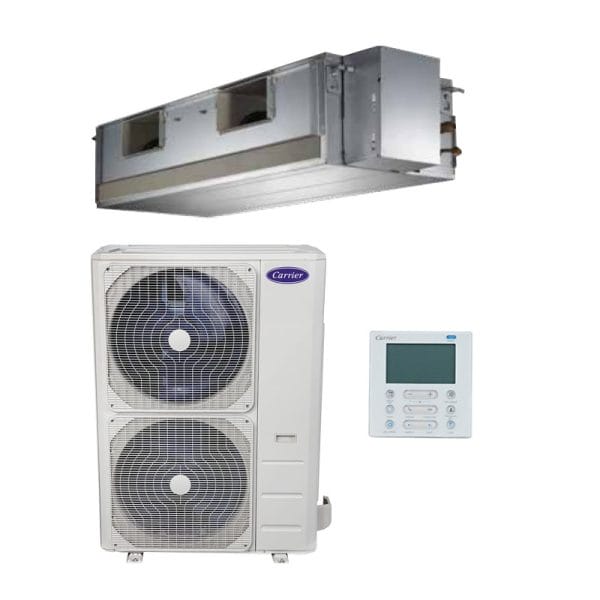

Carrier 42QSH090D8S / 38QSH090D8S 8.6kW Inverter High Static Ducted System








  INDOOR   42QSH090D8S
  OUTDOOR   38QSH090D8S
  Refrigerant type   R32
Power supply (Volts-Phase-Hz)   220-240V /1/50Hz






COOLING

Capacity – rated kW 8.60
Capacity – range (min ~ max) kW 2.40 ~ 11.70
Efficiency (rated) EER 3.37
Operating current (rated) A 11.07






HEATING

Capacity – rated kW 9.14
Capacity – range (min ~ max) kW 2.09 ~ 12.49
Efficiency (rated) COP 3.94
Operating current (rated) A 10.10




INDOOR UNIT

Dimension (WxDxH) mm 1200x625x380
Net weight kg 54
Airflow volume (H/M/L) m3/h 2357/1753/1198
ESP Rated / max Pa 37 / 200








OUTDOOR UNIT

Dimension (WxDxH) mm 946x410x810
Net weight kg 70
Operating noise (sound power) (H) dBA (@swl)

67

Cooling usable temperature range ˚C 0~50
Heating usable temperature range ˚C -20~24












PIPE SIZE

Liquid line Ø (mm) 9.52
Gas line Ø (mm) 15.9
Coupler style flare
Drain (inside diameter) Ø mm 21
Maximum length m 75
Chargeless length m 15
Maximum height difference m 30

High static ducted are ideal for residential applications, where ducts run to numerous outlets.

  • Concealed installation
  • Static pressure of 200Pa
  • Long ducted connection
  • Constant air volume technology for optimal
    airflow
  • Quiet operation
  • Easy to install and maintain
  • 5 year warranty

Description

8.6 kW Cooling
9.1 kW Heating

Long Pipe Runs | R32
