Capacity | 13.4kW | |||
Model Name | Indoor Unit | S-1014PT3E | ||
Outdoor Unit | U-140PZH3R5 | |||
Cooling capacity : Heating capacity |
kW | 13.4 (3.3 – 16.0)
16.0 (3.3 – 18.0) |
||
BTU/h | 45,700 (11,300 – 54,600)
54,600 (11,300 – 61,400) |
|||
EER : COP W/W | 3.21 : 3.48 | |||
COP@H2 condition W/W | 2.37 | |||
Total power input Cooling : Heating kW | 4.17 : 4.60 | |||
TCSPF : HSPF |
Residential |
Hot Climate | 5.07 : 5.26 | |
Average Climate | 4.61 : 4.22 | |||
Cold Climate | 4.82 : 3.58 | |||
Commercial |
Hot Climate | 5.66 : 5.45 | ||
Average Climate | 6.10 : 4.83 | |||
Cold Climate | 6.71 : 4.13 | |||
Indoor Unit | ||||
Power source | Phase/Hz | 1 Phase / 50Hz | ||
V | 230V | 240V | |||
Dimension H x W x D Indoor mm | 235 X 1,590 X 690 | |||
Net weight Indoor kg | 40 | |||
Air volume (H/M/L) Cooling : Heating L/s | 584 / 484 / 417 : 584 / 484 / 417 | |||
Sound pressure level (H/M/L) Cooling : Heating dB(A) | 47 / 41 / 36 : 47 / 41 / 36 | |||
Sound power level (H/M/L) Cooling : Heating dB | 65 / 59 / 54 : 65 / 59 / 54 | |||
Number of fan speeds | 5 | |||
Drain piping mm | VP-20 | |||
Outdoor Unit | ||||
Power source | Phase/Hz | 1 Phase / 50Hz | ||
V | 230V | 240V | |||
Current (rated) Cooling : Heating A | 19.5 : 21.5 | 18.7 : 20.6 | |||
Dimension H × W × D mm | 1,416 x 940 x 340 | |||
Net weight kg | 99 | |||
Air volume Cooling : Heating L/s | 2,154 : 1,937 | |||
Sound pressure level (Silent mode) Cooling : Heating dB(A) | 54 (52) : 54 (52) | |||
Sound power level (Silent mode) Cooling : Heating dB | 70 (68) : 70 (68) | |||
Piping connections Liquid / Gas mm | Ø9.52 / Ø15.88 | |||
Pipe length range min. – max. m | 5 – 85 | |||
Elevation difference (OU located lower, OU located higher) m | 15, 30 | |||
Maximum chargeless length m | 30 | |||
Refrigerant at shipping / Additional gas amount g | R32 3,050 / 45 (g/m) | |||
Operating range Cooling : Heating ˚C | -15 to 48 : -20 to 24 |
Panasonic 13.4kW S-1014PT3E / U-140PZH3R8 Under Ceiling System Three Phase | Deluxe

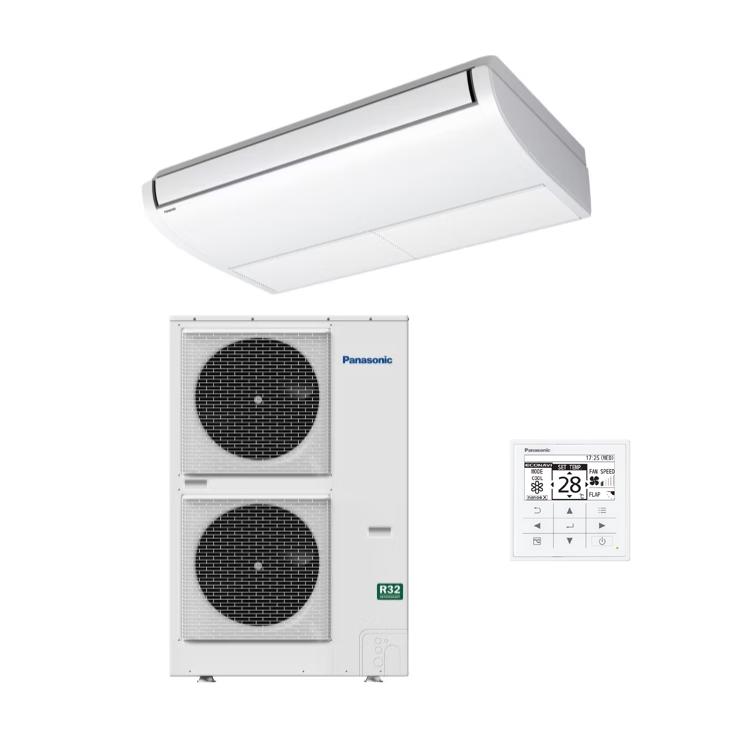

Panasonic 13.4kW S-1014PT3E / U-140PZH3R5 Under Ceiling System Single Phase | Deluxe
CZ-RTC5B WIRED CONTROLLER INCLUDED
Description
13.4 kW Cooling
16.0 kW Heating
R32 – Deluxe | NanoeX
