Capacity | 9.5kW | |||
Model Name | Indoor Unit | S-1014PT3E | ||
Outdoor Unit | U-100PZH3R8 | |||
Cooling capacity : Heating capacity |
kW | 9.5 (3.1 – 12.5)
11.2 (3.1 – 14.0) |
||
BTU/h | 32,400 (10,600 – 42,700)
38,200 (10,600 – 47,800) |
|||
EER : COP W/W | 4.15 : 4.09 | |||
COP@H2 condition W/W | 2.72 | |||
Total power input Cooling : Heating kW | 2.29 : 2.74 | |||
TCSPF : HSPF |
Residential |
Hot Climate | 6.07 : 5.59 | |
Average Climate | 5.25 : 4.74 | |||
Cold Climate | 5.33 : 4.21 | |||
Commercial |
Hot Climate | 6.84 : 5.66 | ||
Average Climate | 6.95 : 5.18 | |||
Cold Climate | 7.54 : 4.66 | |||
Indoor Unit | ||||
Power source | Phase/Hz | 1 Phase / 50Hz | ||
V | 230V | 240V | |||
Dimension H x W x D Indoor mm | 235 X 1,590 X 690 | |||
Net weight Indoor kg | 40 | |||
Air volume (H/M/L) Cooling : Heating L/s | 501 / 417 / 384 : 501 / 417 / 384 | |||
Sound pressure level (H/M/L) Cooling : Heating dB(A) | 42 / 37 / 34 : 42 / 37 / 34 | |||
Sound power level (H/M/L) Cooling : Heating dB | 60 / 55 / 52 : 60 / 55 / 52 | |||
Number of fan speeds | 5 | |||
Drain piping mm | VP-20 | |||
Outdoor Unit | ||||
Power source | Phase/Hz | 3 Phase / 50Hz | ||
V | 400V | 415V | |||
Current (rated) Cooling : Heating A | 3.65 : 4.35 | 3.45 : 4.15 | |||
Dimension H × W × D mm | 1,416 × 940 × 340 | |||
Net weight kg | 99 | |||
Air volume Cooling : Heating L/s | 1,970 : 1,803 | |||
Sound pressure level (Silent mode) Cooling : Heating dB(A) | 52 (50) : 52 (50) | |||
Sound power level (Silent mode) Cooling : Heating dB | 68 (66) : 68 (66) | |||
Piping connections Liquid / Gas mm | Ø9.52 / Ø15.88 | |||
Pipe length range min. – max. m | 5 – 85 | |||
Elevation difference (OU located lower, OU located higher) m | 15, 30 | |||
Maximum chargeless length m | 30 | |||
Refrigerant at shipping / Additional gas amount g | R32 3,050 / 45 (g/m) | |||
Operating range Cooling : Heating ˚C | -15 to 48 : -20 to 24 |

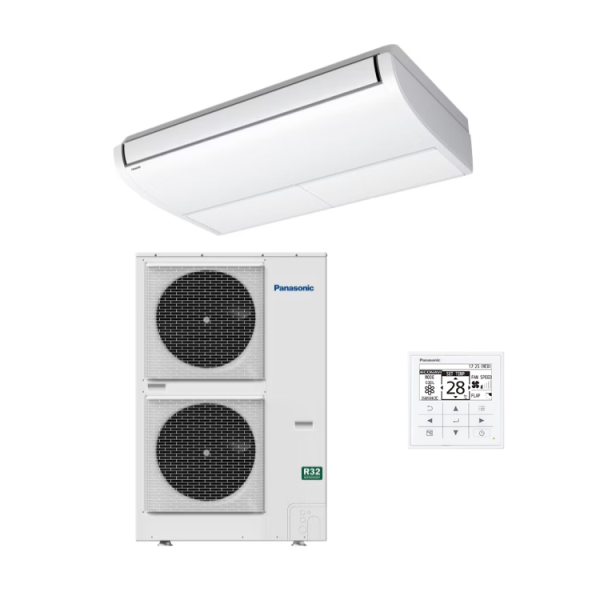

Panasonic 9.5kW S-1014PT3E / U-100PZH3R8 Under Ceiling System Three Phase | Deluxe
Panasonic 10.0kW S-1014PT3E / U-100PZH3R8 Under Ceiling System Three Phase | Deluxe | NanoeX
CZ-RTC5B WIRED CONTROLLER INCLUDED
Description
10.0 kW Cooling
11.2 kW Heating
R32 – Deluxe | NanoeX
