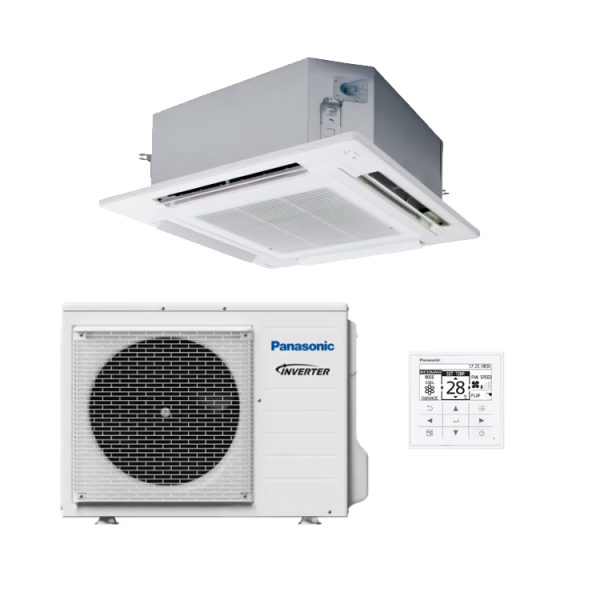

Panasonic S-6071PU3E / U-60PZ3R5 6kW R32 Cassette – Single Phase

SKU: S-6071PU3E / U-60PZ3R5 / CZ-KPU3H / CZ-RTC5B

Indoor : S-6071PU3E

Outdoor: U-60PZ3R5

Controller :  CZ-RTC5B -Deluxe Wired Remote Controller



Cooling (kW): 6.0
Heating (kW): 6.0
Airflow (l/sec) H/M/L: 350/267/217
Indoor Dimensions H x W x D (mm): 256 x 840 x 840
Outdoor Dimensions H x W x D (mm): 695 x 875 x 320
Power Supply (V/Ph/Hz): 240/1/50
Power Supply Connection: Outdoor Unit
Refrigerant Type: R32
Pipe Sizes (Liquid/Gas mm): 6.35/12.7 (indoor unit requires 9.52 to 6.35 reducer liquid and 15.88 to 12.7 reducer suction, supplied in box)
Min/Max Pipe Run (m): 3/40
Pre-Charged Run (m): 30
Add Ref Charge (g/m): 15
Max Elevation – OU Higher/Lower than IU (m): 30/15
Weight Indoor/Outdoor (kg): 20/43

Description

6.0 kW Cooling
6.0 kW Heating

Includes Wired Controller and Fascia
