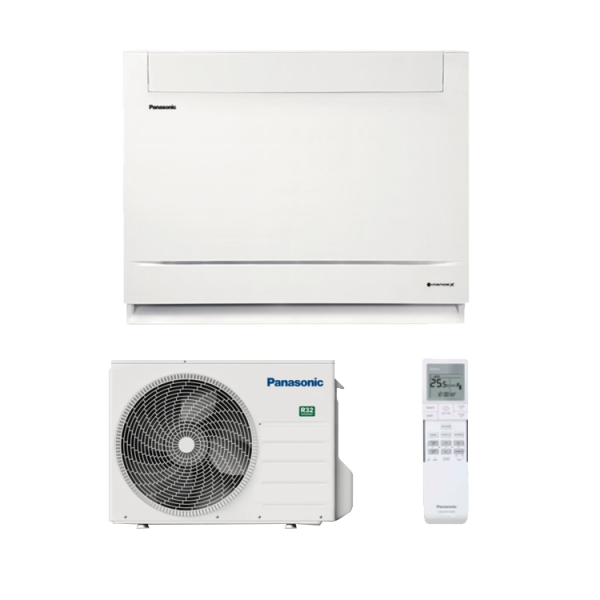

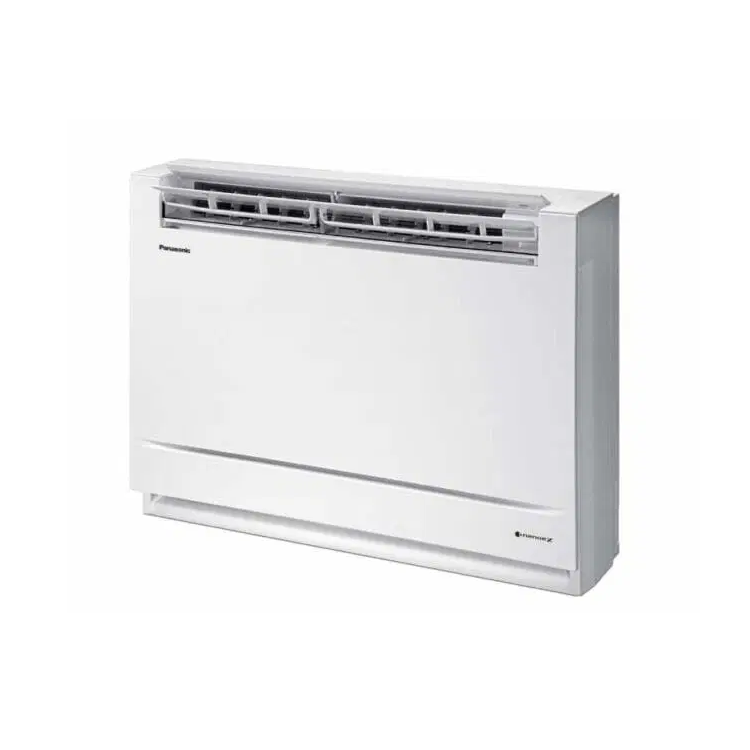

Panasonic CS-Z25UFRAW / CU-Z25UBRA 2.5kW Floor Console System | nanoeX
Panasonic CS-Z25UFRAW / CU-Z25UBRA 2.5kW Floor Console System | nanoeX
| Cooling (kW): | 2.50 |
| Heating (kW): | 3.40 |
| Indoor Dimensions H x W x D (mm): | 600 x 750 x 207 |
| Outdoor Dimensions H x W x D (mm): | 542 x 780 x 289 |
| Power Supply (V/Ph/Hz): | 240/1/50 |
| Power Supply Connection: | Outdoor |
| Max Amp: | 5.9 |
| Refrigerant Type: | R32 |
| Pipe Sizes (Liquid/Gas mm): | 6.35/9.52 |
| Min/Max Pipe Run (m): | 3/20 |
| Pre-Charged Run (m): | 7.5 |
| Add Ref Charge (g/m): | 10 |
| Max Elevation – OU Higher/Lower than IU (m): | 15 |
| Weight Indoor/Outdoor (kg): | 13/33 |
Description
2.5 kW Cooling
3.4 kW Heating
R32 – nanoeX | Super Quiet
