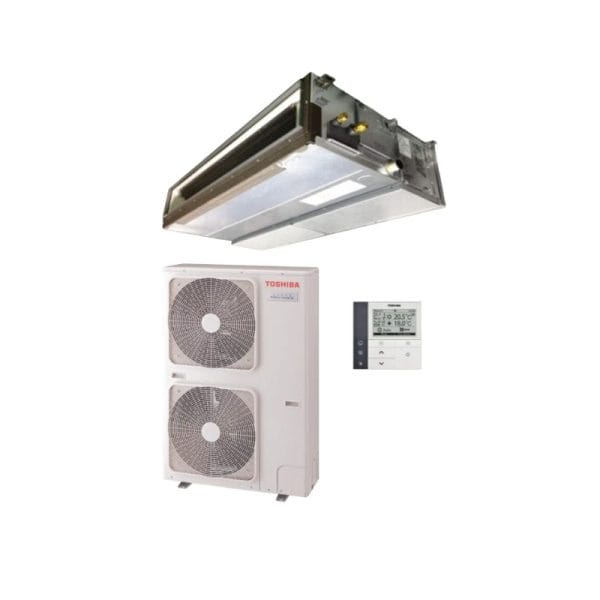

TOSHIBA RAV-GM1601DTP-A / RAV-GP1601AT8P-A 14kW Super Digital Inverter High Static Ducted System R32 | Three Phase

SKU: RAV-GM1601DTP-A / RAV-GP1601AT8P-A/RBC-AMS55E-ES

Indoor: RAV-GM1601DTP-A

Outdoor: RAV-GP1601AT8P-A

Backlit Wired Control with Weekly Timer: RBC-AMS55E-ES


Indoor Model RAV-GM1601DTP-A
Outdoor Model RAV-GP1601AT8P-A
Cooling Capacity (Range) kW 14.0 [2.6 – 16.0]
EER 3.31
Heating Capacity (Range) kW 16.0 [2.4 – 19.0]
COP 3.90
Maximum Operating Current A 16.50
Air flow (H / M / L) l/s 972 / 902 / 597
External Static Pa 50 – 270
Dimensions – Indoor (H x W x D) mm 298 x 1400 x 750
Dimensions – Outdoor (Hx W x D) mm 1340 x 900 x 320
Weight – Indoor / Outdoor kg 42 / 100
Sound Pressure Level Indoor / Outdoor dB(A) 50 / 58
Operating Range Cooling °C db -15 to 52
Operating Range Heating °C db -20 to 24
Pipe Sizes (Liquid / Gas) mm 9.52 / 15.88
Maximum Pipe Length / Lift m 75 / 30
Maximum Pre-charged Length m 30
Power Supply 3ph/380-415V/50Hz



Description

14 kW Cooling
16 kW Heating

SUPER DIGITAL INVERTER HIGH STATIC | R32

air conditioning enquiry
