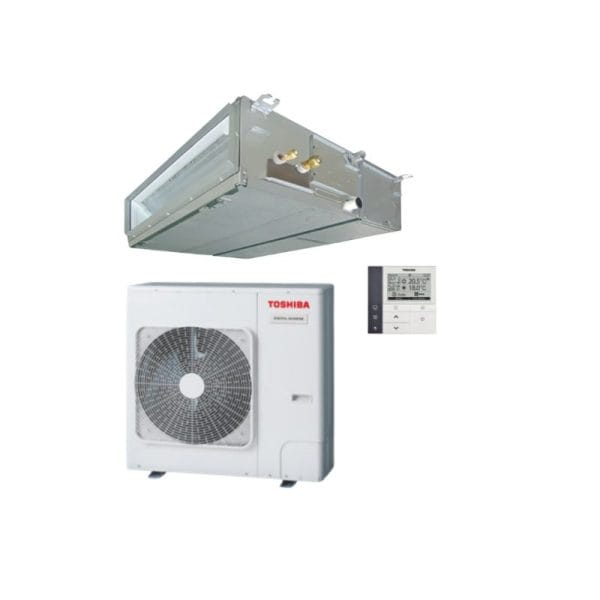

TOSHIBA RAV-GM801BTP-A / RAV-GP801ATP-A 7.1kW Super Digital Inverter Mid-Static Ducted System 1 Phase

SKU: RAV-GM801BTP-A / RAV-GM801BTP-A/RBC-AMS55E-ES

Indoor: RAV-GM801BTP-A

Outdoor: RAV-GP801ATP-A

Backlit Wired Control with Weekly Timer: RBC-AMS55E-ES


Indoor Model RAV-GM801BTP-A
Outdoor Model RAV-GP801ATP-A
Cooling Capacity (Range) kW 7.1 [1.9 – 8.0]
EER 3.70
Heating Capacity (Range) kW 8.0 [1.5 – 11.3]
COP 4.20
Maximum Operating Current A 15.80
Air flow (H / M / L) l/s 472 / 388 / 277
External Static Pa 30 – 180
Dimensions – Indoor (H x W x D) mm 275 x 1000 x 750
Dimensions – Outdoor (Hx W x D) mm 890 x 900 x 320
Weight – Indoor / Outdoor kg 31 / 62
Sound Pressure Level Indoor / Outdoor dB(A) 40 / 52
Operating Range Cooling °C db -15 to 52
Operating Range Heating °C db -20 to 24
Pipe Sizes (Liquid / Gas) mm 9.52 / 15.88
Maximum Pipe Length / Lift m 50 / 30
Maximum Pre-charged Length m 30
Power Supply 1ph/220-240V/50Hz

Description

7.1 kW Cooling
8.0 kW Heating

SUPER DIGITAL INVERTER MID-STATIC | R32
