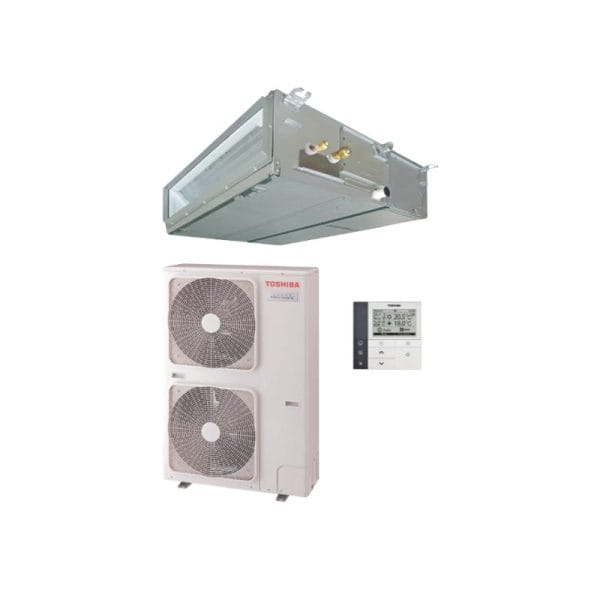

TOSHIBA RAV-GM1601BTP-A / RAV-GP1601ATP-A 14kW Super Digital Inverter Mid-Static Ducted System R32 | Single Phase

SKU: RAV-GM1601BTP-A / RAV-GP1601ATP-A/RBC-AMS41E

Indoor: RAV-GM1401BTP-A

Outdoor: RAV-GP1401ATP-A

Backlit Wired Control with Weekly Timer: RBC-AMS55E-ES


Indoor Model RAV-GM1601BTP-A
Outdoor Model RAV-GP1601ATP-A
Cooling Capacity (Range) kW 14.0 [2.6 – 16.0]
EER 3.23
Heating Capacity (Range) kW 16.0 [2.4 – 19.0]
COP 3.56
Maximum Operating Current A 29.00
Air flow (H / M / L) l/s 652 / 555 / 416
External Static Pa 50 – 200
Dimensions – Indoor (H x W x D) mm 275 x 1400 x 750
Dimensions – Outdoor (Hx W x D) mm 1340 x 900 x 320
Weight – Indoor / Outdoor kg 41 / 102
Sound Pressure Level Indoor / Outdoor dB(A) 42 / 58
Operating Range Cooling °C db -15 to 52
Operating Range Heating °C db -20 to 24
Pipe Sizes (Liquid / Gas) mm 9.52 / 15.88
Maximum Pipe Length / Lift m 75 / 30
Maximum Pre-charged Length m 30
Power Supply 1ph/220-240V/50Hz

Description

14 kW Cooling
16 kW Heating

SUPER DIGITAL INVERTER MID-STATIC | R32
