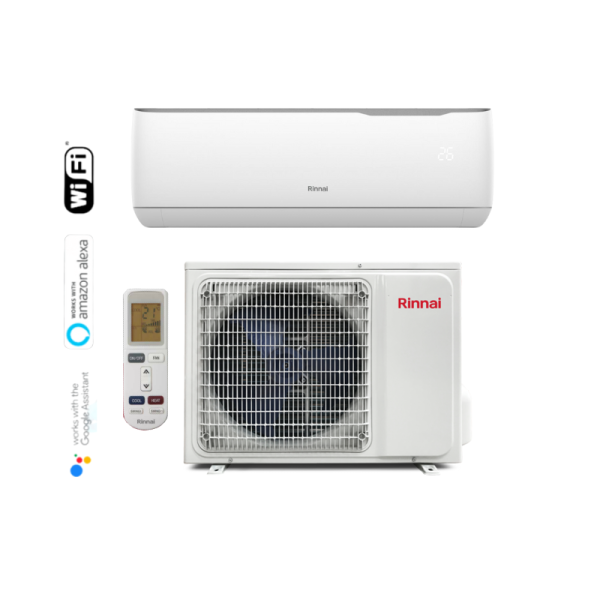

Rinnai HSNRT80B 8.0kW Reverse Cycle Split System WIFI Enabled | T Series

SKU: HSNRT80B

Rinnai HSNRT80B 8.0kW Reverse Cycle Split System WIFI Enabled | T Series

With convenient Wi-Fi control and using a more eco-friendly R32 refrigerant, the Rinnai 2.5kW T Series Reverse Cycle Split System offers complete comfort with added energy-saving.

Wi-Fi Control | Self-Cleaning Function | Long Distance Air Supply | Fresh Function


$1,820.00

zip money
> > >
Rinnai – System Model No. HSNRT80B
Nominal Capacity kW 8.0
Power Supply to Outdoor Unit V – Ph – Hz 220~240 – 1 – 50
Recommended Circuit Breaker A 25.0
Connectivity Wi-Fi Enabled
Demand Response Enabling Device DRED Enabled






Cooling

Rated Capacity

kW

8.00
Capacity Range 2.80-8.50
Rated Power Input W 2400
Rated Current (Range) A 11.00
AEER W/W 3.33
Star Rating: Hot / Average / Cold 3.0 / 2.5 / 3.0






Heating

Rated Capacity

kW

8.4
Capacity Range 2.6-8.8
Rated Power Input W 2550
Rated Current (Range) A 11.0
ACOP W/W 3.29
Star Rating: Hot / Average / Cold 2.5 / 2.0 / 1.5
Maximum Input Power (Cooling / Heating) W 3000
Maximum Input Current (Cooling / Heating) A 18.0
Suitable Area Coverage (up to 2.6m insulated ceiling) m2 40-54
Moisture Removal L/h 2.50
Indoor Unit HINRT80B


Air Flow (Turbo / Hi / Med / Lo / Min)



L/s

347 / 306 / 275 /

236 / 183

Sound Power Level dB(A) 65
Sound Pressure Level @ 1m (Turbo / Hi / Med / Lo / Min) dB(A) 50 / 48 / 44 / 40 / 37
Air Swing Louvres Direction 4-way swing


Dimensions

Dimension (W x H x D)

mm

1132 × 330 × 232
Packing (W x H x D) 1205 × 400 × 317
Net / Gross Weight kg 14.0 / 17.0


Operating Range

Cooling

˚C

16°C
Heating 32°C
Outdoor Unit HONRT80B
Sound Power Level

dB(A)

66
Sound Pressure Level @ 1m 59


Dimensions

Dimension (W x H x D)

mm

970 × 805 × 395
Packing (W x H x D) 1105 × 890 × 495
Net / Gross Weight kg 61 / 66








Refrigerant

Type R32
Charged Volume kg 1.60
Pipe Size: Liquid / Gas mm 6.35 / 15.88
Maximum Pipe Length

m

30
Chargeless Length 10
Extra Charge for Lengths >10m g/m 30
Maximum Vertical Separation m 20
Ambient Temperature Limits Cooling

˚C

-15 ~ 52°C
Heating -15 ~ 24°C



Ideal size for the bedroom

Low indoor noise level

Sleek, modern design

  • Sleek, modern design
  • Energy efficient inverter technology
  • Easy to use remote control
  • Wi-Fi Enabled
  • Delay timer to turn the appliance on or off within a specific time period
  • Intuitive end of season cleaning function
  • Adjustable air flow direction
  • Outdoor operation range for temperatures of up to 52° Celsius
  • Low operating noise levels
  • Boost/turbo mode to reach the set temperature within a shorter period of time
  • R32 Refrigerant
  • 5 year limited warranty

Click here to view the brochure Rinnai Split Air Conditioner System T Series

Description

8.00 kW Cooling
8.40 kW Heating

WIFI Enabled | R32
