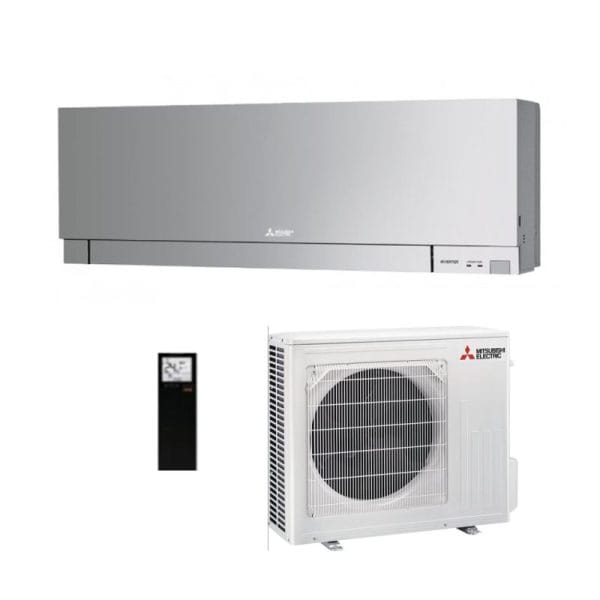

Mitsubishi Electric MSZEF50VGSKIT 4.8kW EF Series Split System | Silver
Mitsubishi Electric MSZEF50VGSKIT 4.8kW EF Series Split System | Silver
Indoor : MSZ-EF50VGS-A1
Outdoor : MUZ-EF50VG-A1
System : MSZEF50VGSKIT
| MSZ-EF Series (Wall Mounted) | ||||
| Indoor Unit | MSZ-EF50VG (W/B/S) -A1 | |||
| Outdoor Unit | MUZ-EF50VG-A1 | |||
| Refrigerant | R32 | |||
|
Cooling |
Capacity [Rated] | kW | 5.00 | |
| Capacity [Min-Max] | kW | 1.40 – 5.40 | ||
| Total Input [Rated] | kW | 1.55 | ||
| Total Input [Min-Max] | kW | 0.30 – 1.98 | ||
| EER | 3.23 | |||
| AEER | 3.22 | |||
| Star Rating |
Hot & Humid |
1.5 | ||
| 3.0 | ||||
| New Star Rating | Mixed | 3.0 | ||
| Cold | 3.0 | |||
| Running Current
[Rated] |
A | 6.90 | ||
|
SPL |
In [Quiet-Lo-
Mid-Hi-SHi] |
dB(A) | 30 – 43 | |
| Out [PWL] | dB(A) | 52 (65) | ||
| Air Volume (In) [Quiet-
SHi] |
L/S | 97 – 188 | ||
| Capacity [Rated] | kW | 5.80 | ||
| Capacity [Min-Max] | kW | 1.40 – 7.50 | ||
| Total Input [Rated] | kW | 1.56 | ||
| Total Input [Min-Max] | kW | 0.30 – 2.64 | ||
| COP | 3.72 | |||
| ACOP | 3.71 | |||
| Star Rating |
Hot & Humid |
2.5 | ||
| Heating | 2.5 | |||
| New Star Rating | Mixed | 2.5 | ||
| Cold | 2.0 | |||
| Running Current
[Rated] |
A | 7.10 | ||
|
SPL |
In [Quiet- SHi] | dB(A) | 30 – 49 | |
| Out [PWL] | dB(A) | 52 (65) | ||
| Air Volume (In) [Quiet-
SHi] |
L/S | 107 – 243 | ||
|
Piping |
Diameter [Gas/Liquid] | mm | ø9.52/ø6.35 | |
| Max. Length/Height | m | 30/15 | ||
| Input (Cooling/
Heating) [Rated] |
W | 23/43 | ||
| Indoor Unit | Dimensions [HxWxD] | mm | 299 × 885 × 195 | |
| Weight | kg | 11.5 | ||
|
Outdoor Unit |
Dimensions [HxWxD] | mm | 714 × 800 × 285 | |
| Weight | kg | 40.0 | ||
| Breaker Size | A | 16 | ||
| Guaranteed
Operating Ra |
nge |
Cooling | °C | |
| [Outdoor] | Heating | °C | ||
| Refrigerant Amount [Pre-Charge] | kg | 0.74 | ||
Mitsubishi Electric introduces the R32 MSZ-EF Series, expanding our line-up in the low Global Warming Potential (GWP) refrigerant. With just one-third of the GWP of the R410A, we aim to help reduce the household carbon footprint. The streamlined wall-mounted indoor units have contemporary clean lines, expressing sophistication and quality, and are available in 3 stylish colours.
Quiet Operation
The “Quiet” fan speed setting ensures super quiet operation below 21dB*. Perfect for the bedroom; it’s so quiet you’ll check to see if it’s on. *Model 25/35 only.
Nano Platinum Filter
The Nano Platinum Deodorising Filter reduces airborne bacteria while improving air quality. The optional Electro Static AntiAllergy Enzyme Filter assists in the reduction of common allergens.
Backlit Controller
With an easy to read backlit display and a variety of operating modes at the touch of a button. This controller features a weekly and 24 hour timer, On/Off timer to set operating times on a daily basis. The ‘i-Save’ mode recalls the preset temperature.
Features
- Capacity Range: 2.5/3.5/4.2/5.0kW
- Built-In Weekly Timer
- Nano Platinum Filter
- Wi-Fi Control*
- Unit Dimensions: 895 (w) x 195 (d) x 299mm (h)
- Quiet 21dB Noise Level in ‘Quiet Mode’ (EF25/35)
- Appealing design matches any room décor
- Colour: Natural White, Matte Silver and Glossy Black
WIFI Control
Unlock the door to smarter heating and cooling systems, for total home comfort. This innovative technology connects your Mitsubishi Electric air conditioner to your smartphone, tablet or online account, giving you the freedom to fully control each unit on-the-go via an internet connection from anywhere in the world.
*1 Optional Wi-Fi adapter required per unit. Requires an internet connection and the App downloaded on your smartphone or tablet with the latest operating system available.
*2 To use Amazon Alexa to control your air conditioner you will need an Amazon Alexa Echo device.
*3 To use Google Assistant to control your air conditioner you will need a Google Home Smart speaker.
Nano Platinum Filter
The Nano Platinum Deodorising Filter reduces airborne bacteria while improving air quality. The optional Electro Static Anti-Allergy Enzyme Filter assists in the reduction of common allergens.*2 *2 Testing Standard JIS L1902.
The streamlined wall-mounted indoor units have contemporary clean lines, expressing sophistication and quality, in a modern design and are available in Natural White, Matte Silver, and Glossy Black.
Backlit controller
An easy-to-read backlit display and a variety of operating modes at the touch of a button. This controller features a weekly and 24 hour timer, On/Off timer to set operating times on a daily basis. The ‘i-Save’ mode recalls the preset temperature.
R32 refrigerant
R32 enables increased energy efficiency compared to R410A, with just one third of the global warming potential, the risk of environmental harm is greatly reduced.
Description
4.8 kW Cooling
5.8 kW Heating
R32 : New Model | Flat Panel Design
