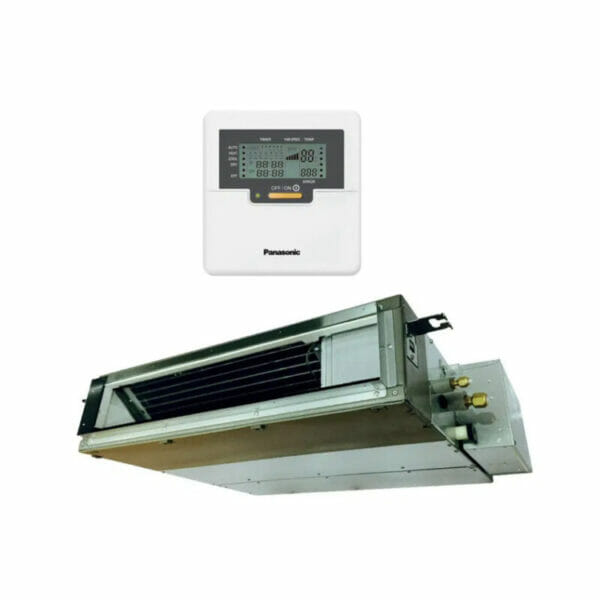

Panasonic CS-Z60UD3RAW 6kW Bulkhead Ultra Slim Ducted Multi Indoor Unit Only
Panasonic CS-Z60UD3RAW 6kW Bulkhead Ultra Slim Ducted Multi Indoor Unit Only
Latest Refrigerant – R32
(Includes wired controller)
R32 BULKHEAD (Ultra Slim Ducted) WITH BUILT IN DRAIN PUMP
| Model | CS- Z60UD3RAW | ||
| Capacity | kW | 6.0kW | |
| Power Source |
Single Phase 240V, 50Hz |
||
| Noise (H/L) | Cooling | dB(A) | 43/32 |
| Heating | dB(A) | 43/34 | |
| Cooling | dB | 59 | |
| Heating | dB | 59 | |
| Airflow | Cooling/Heating | L/S | 262/262 |
| Dimensions | Height | Mm | 200 |
| Width | Mm | 750 | |
| Depth | Mm | 640 | |
| Net Weight | Kg | 19 | |
| Refrigerant Pipe | Liquid Side | Mm | ø 6.35 |
| Gas Side | Mm | ø 12.70*2 | |
Description
6.0 kW Cooling
6.0 kW Heating
Includes Wired Controller
