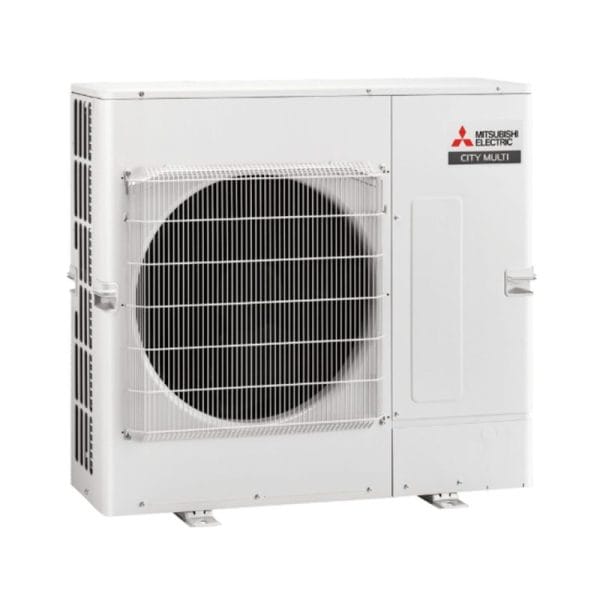

Mitsubishi Electric PUMY-SP140YKMD 15.5 kw Outdoor Unit Only | 3 Phase

SKU: PUMY-SP140YKMD

MODEL PUMY-SP140YKMD
Power Source 3-phase 380-400-415 V, 50Hz; 3-phase 380 V, 60 Hz
Cooling Capacity (Nominal)
*1 kW 15.5
*1 BTU/h 52,886
Power Input kW 4.38
Current Input A 7.00-6.65-6.41, 7.00
AEER/EER kW/kW 3.40*3 / 3.54
Temp Range cooling
Indoor Temp. WB 15 to 24°C
Outdoor Temp. D.W -5 to 52°C *4,*5
Heating Capacity (Nominal)
*2 kW 16.5
*2 BTU/h 56,298
Power Input kW 4.02
Current Input A 6.43-6.11-5.89 , 6.43
ACOP/COP kW/kW 3.55 / 4.10
Temp Range of Heating
Indoor Temp W.B 15 to 27°C
Outdoor Temp W.B -20 to 15°C
Indoor Unit Connectable
Total capacity 50 to 130% of outdoor unit capacity
Model/ Quantity
City Multi P15-P140/12
Branch Box P15-P100/8
Mixed System
Branch Box 1 unit City Multi P15-P140/5
Branch Box P15-P100/5
Branch Box 2 Unit City Multi P15-P140/3
Branch Box P15-P100/8
Sound Pressure Level (Cooling/Heating) db<A> 54/56
Sound Power Level (Cooling) db<A> 74
Refrigerant Piping Diameter
Liquid Piping Mm 9.52 Flare
Gas piping Mm 15.88 Flare
FAN
Type x quantity Propeller Fan × 1
Air flow rate
m³/min 83
L/s 1383
Cfm 2931
External Static Pres 0Pa , 30Pa *9
Compressor Type x Quantity Twin rotary hermetic compressor × 1
Starting method Inverter
Motor Output kW 3.7
External Finish Galvanized Steel Sheet Munsell No. 3Y 7.8/1.1
External Dimensions H x W x D Mm 981 × 1,050 × 330 (+25)
Protection Devices
High Pressure Protection High pressure Switch
Inverter circuit (COP/FAN) Overcurrent detection, Overheat detection (Heat sink thermistor)
Compressor Compressor thermistor, Over current detection
Fan motor Overheating. Voltage protection
Refrigerant
Type R410A
Pre-Charged Quantity (kg) 3.5 kg
Net weight(kg) 94 *7
Heat Exchanger Cross Fin and Copper tube
Defrosting Method Reversed refrigerant circuit
Optional Parts Joint: CMY-Y62-G-E Header: CMY-Y64/68-G-E

Flexibility

With our multi room systems, you have the flexibility to choose the perfect indoor unit for each room. You may want a super quiet, low capacity unit for a smaller bedroom and a stylish, higher capacity unit for the larger living room. With a multi room system, you are able to connect these to a single outdoor unit, rather than requiring one for each indoor – saving outdoor space and maintaining your home’s exterior aesthetics.

Energy Saving

Mitsubishi Electric Inverter control distributes tempered air in the shortest period of time and ensures that the system operates at ideal capacity, minimising energy wastage.

Individual Control

Our multi room systems allow individual control of every heat pump in your home; whether you want to increase the temperature in the kid’s bedroom before bedtime, or turn off the living room heat pump as you head out for dinner. With individual heat pump control, you can adjust the temperature to suit your comfort levels and ensure a heat pump is only operating when needed.

Quiet Operation

Our multi room outdoor units are equipped with a Silent Mode; ensuring outdoor sound levels remain as low as possible during operation.

Mini VRF Single Fan PUMY-SP

The PUMY-SP series allows up to 10 indoor units to be connected to a single outdoor unit, using the standard City Multi branch pipework system or via branch boxes to connect M Series and Mr Slim indoor units. This makes it an economic and efficient answer for multi-room applications, whilst also offering space saving benefits. Each size is available in both single and three phase options.

Compact and out of sight

The Mini VRF Single Fan PUMY-SP compact design has a reduced footprint with a 27% reduction in height and 25% reduction in weight, allowing it to be installed in more confined spaces compared to the dual fan model.

The reduced height (less than one metre) makes this unit suitable for installation on balconies. The weight reduction makes the unit easier facilitates easier installation and transportation.

Flexible connection

The outdoor unit allows piping from any four directions; front, back, bottom, or right. This enables easier horizontal connection for collective layout. The outdoor unit with an expanded piping layout improves piping workability.

Super quiet mode*

Noise level can be reduced up to 10dB(A). This allows you to operate the unit even in the night in a residential zone.

* Capacity reduction differs by mode setting. PAC-SC36NA-E is required to activate Super Quiet mode by external input.

External static pressure of 30Pa

The installation location is flexible, thanks to the 30Pa static pressure. An external static pressure of 30Pa allows outdoor unit to be installed on balconies in high-rise building or spaces near louvers.

Energy efficiency

Despite its compact size and low weight, the new Mini VRF Single Fan PUMY-SP features high efficiency.

Connectivity

Mini VRF Single Fan PUMY-SP single-fan units can be connected to the indoor units of Residential M Series and Commercial Mr. Slim and CITY MULTI series using PAC-MK-BC branch boxes.

It’s possible to mix and match Residential and Commercial indoor units, providing great flexibility for solving system design challenges.

Click here to view the Brochure of the Mitsubishi Electric PUMY-SP Series

Description

15.5 kW Cooling
16.5 kW Heating

Single Fan Heat Pump VRF O/U
