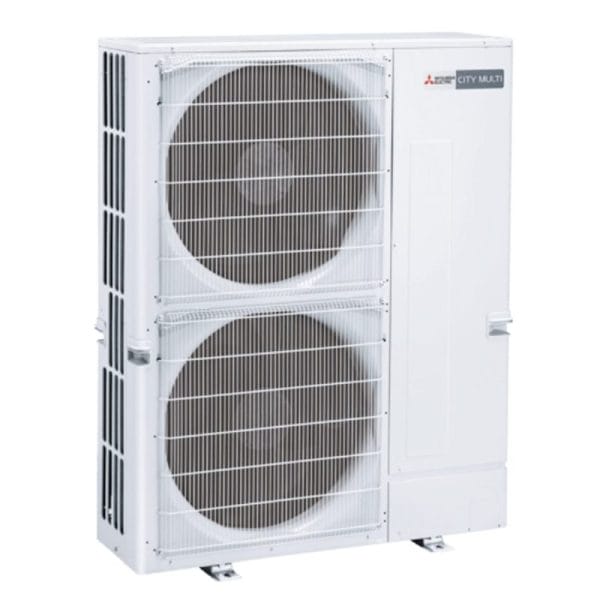

Mitsubishi Electric PUMY-P200YKMD-AR1 22.4 kw Outdoor Unit Only | 3 Phase

SKU: PUMY-P200YKMD-AR1

Mitsubishi Electric PUMY-P200YKMD-AR1 22.4 kw Outdoor Unit Only | 3 Phase




SERIES PUMY-P (Twin Fan)
Model PUMY-P200YKMD
Power Source VKMD: YKMD: 1-phase 220-230-240 V, 50 Hz; 1-phase 220

3-phase 380-400-415 V, 50 Hz; 3-phase 380

V, 60 Hz

V, 60 Hz

Cooling Capacity kW 22.4
(Nominal)*1 Power Input kW 6.22
Current Input A 10.16 – 9.65 – 9.30
EER kW 3.60
AEER kW 3.17
Temperature Range of Cooling Indoor W.B 15.0 ~ 24.0 °C
Outdoor D.B -5.0 ~ 52.0°C *4 *5
Heating Capacity kW 25.0
(Nominal)*2

Temperature Range of Heating

Power Input kW 6.00
Current Input A 9.80 – 9.31 – 8.98
COP kW 4.17
ACOP

Indoor

kW

W.B

3.78
15 ~ 27 °C
Outdoor D.B -20 ~ 15 °C
Indoor Unit

Connectable

Sound Pressure Level

(measured in anechoi

Total Capacity 50% to 130% of Outdoor Unit Capacity
Model/Quantity c room) dB P15-P200/12
57/61
Refrigerant Piping Diameter Liquid Pipe mm (in.) 9.52 (3/8) Flare *8
Gas Pipe mm (in.) 19.05 (3/4) Flare
Fan Type x Quantity Propeller Fan x 2
Airflow Rate m3/min 134
L/s 2,233
cfm 4,732
Control, Driving Mechanism DC Control
Motor Output kW 0.20 + 0.20
Compressor Type x Quantity Scroll Hermetic Compressor x 1
Manufacturer Mitsubishi Electric Corporation
Starting Method Inverter
Motor Output kW 5.3
External Finish

External Dimension (H x W x D)

mm Galvanised Steel Sheet Munsell No. 3Y 7.8/1. 1
1,338 x 1,050 x 330 (+25)
Protection Devices High Pressure Protection High Pressure Switch
Inverter Circuit (COMP./FAN) Overcurre nt Detection, Overheat Detection (Heat Sink Thermistor)
Compressor Compressor Thermistor, Overcurrent Detectio n
Fan Motor Overheating, Voltage Protection
Refrigerant Type x Original Charge R410A x 7.3kg
Control Linear Expansion Valve
Net Weight kg 138 *9
Heat Exchanger Cross Fin and Copper Tube
HIC Circuit (HIC: Heat Inter-Changer) HIC Circuit
Defrosting Method

Drawing

External Reversed Refrigerant Circuit
RK01J635
Wiring VG79J111
Standard Attachment

Optional Parts

Document Installation Manual
Accessory Ground Lead Wire x 1
Joint: CMY-Y62-G-E Header: CMY-Y64/68-G-E

Flexibility

With our multi room systems, you have the flexibility to choose the perfect indoor unit for each room. You may want a super quiet, low capacity unit for a smaller bedroom and a stylish, higher capacity unit for the larger living room. With a multi room system, you are able to connect these to a single outdoor unit, rather than requiring one for each indoor – saving outdoor space and maintaining your home’s exterior aesthetics.

Energy Saving

Mitsubishi Electric Inverter control distributes tempered air in the shortest period of time and ensures that the system operates at ideal capacity, minimising energy wastage.

Individual Control

Our multi room systems allow individual control of every heat pump in your home; whether you want to increase the temperature in the kid’s bedroom before bedtime, or turn off the living room heat pump as you head out for dinner. With individual heat pump control, you can adjust the temperature to suit your comfort levels and ensure a heat pump is only operating when needed.

Quiet Operation

Our multi room outdoor units are equipped with a Silent Mode; ensuring outdoor sound levels remain as low as possible during operation.

Mini VRF Single Fan PUMY-SP

The PUMY-SP series allows up to 10 indoor units to be connected to a single outdoor unit, using the standard City Multi branch pipework system or via branch boxes to connect M Series and Mr Slim indoor units. This makes it an economic and efficient answer for multi-room applications, whilst also offering space saving benefits. Each size is available in both single and three phase options.

Compact and out of sight

The Mini VRF Single Fan PUMY-SP compact design has a reduced footprint with a 27% reduction in height and 25% reduction in weight, allowing it to be installed in more confined spaces compared to the dual fan model.

The reduced height (less than one metre) makes this unit suitable for installation on balconies. The weight reduction makes the unit easier facilitates easier installation and transportation.

Flexible connection

The outdoor unit allows piping from any four directions; front, back, bottom, or right. This enables easier horizontal connection for collective layout. The outdoor unit with an expanded piping layout improves piping workability.

Super quiet mode*

Noise level can be reduced up to 10dB(A). This allows you to operate the unit even in the night in a residential zone.

* Capacity reduction differs by mode setting. PAC-SC36NA-E is required to activate Super Quiet mode by external input.

External static pressure of 30Pa

The installation location is flexible, thanks to the 30Pa static pressure. An external static pressure of 30Pa allows outdoor unit to be installed on balconies in high-rise building or spaces near louvers.

Energy efficiency

Despite its compact size and low weight, the new Mini VRF Single Fan PUMY-SP features high efficiency.

Connectivity

Mini VRF Single Fan PUMY-SP single-fan units can be connected to the indoor units of Residential M Series and Commercial Mr. Slim and CITY MULTI series using PAC-MK-BC branch boxes.

It’s possible to mix and match Residential and Commercial indoor units, providing great flexibility for solving system design challenges.

Click here to view the Brochure of the Mitsubishi Electric PUMY-SP Series

Description

22.4 kW Cooling
25.0 kW Heating

Twin Fan Heat Pump VRF O/U
