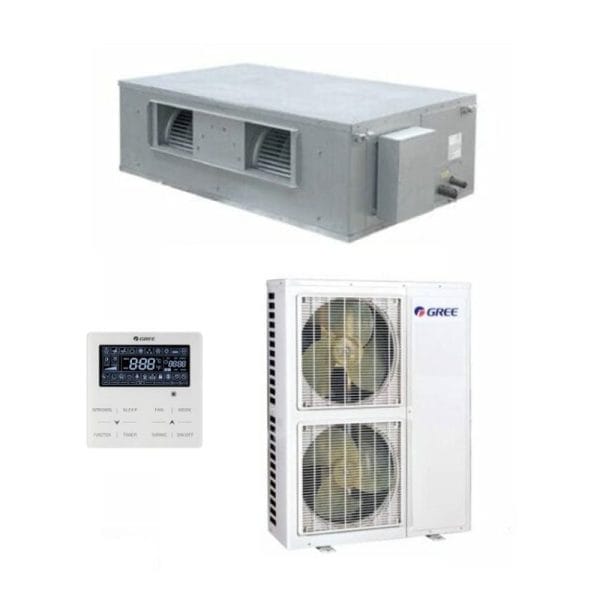

Gree FGR20Pd/D1Na-X(Au) | FGR20Pd/D1Na-X(Au)O 20.0kW Splittable Ducted System Air Conditioner
20.0 kW Cooling | 22.4 kW Heating | 3 Phase
Gree FGR20Pd/D1Na-X(Au) | FGR20Pd/D1Na-X(Au)O 20.0kW Inverter Ducted System
Includes Indoor FGR20Pd/D1Na-X(Au)I | Outdoor FGR20Pd/D1Na-X(Au)O | R410A | Splittable

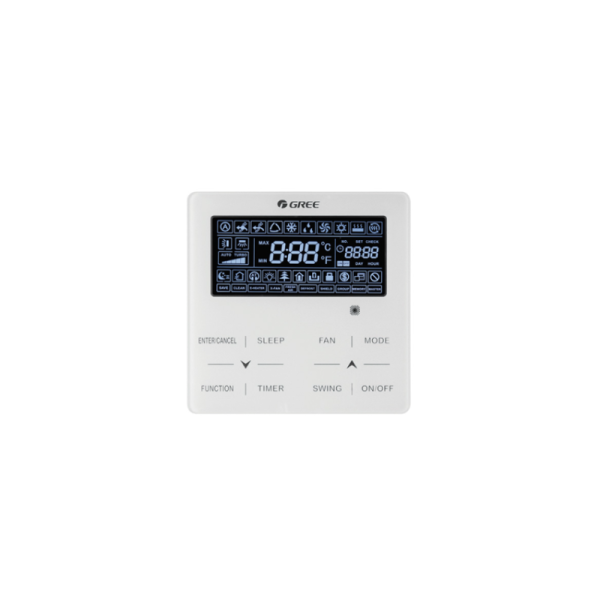

Wired Controller | Higher Efficiency | Anti-Cold Function | Intelligent defrosting | Wide Operation Range
6 Year Manufacturer’s Warranty

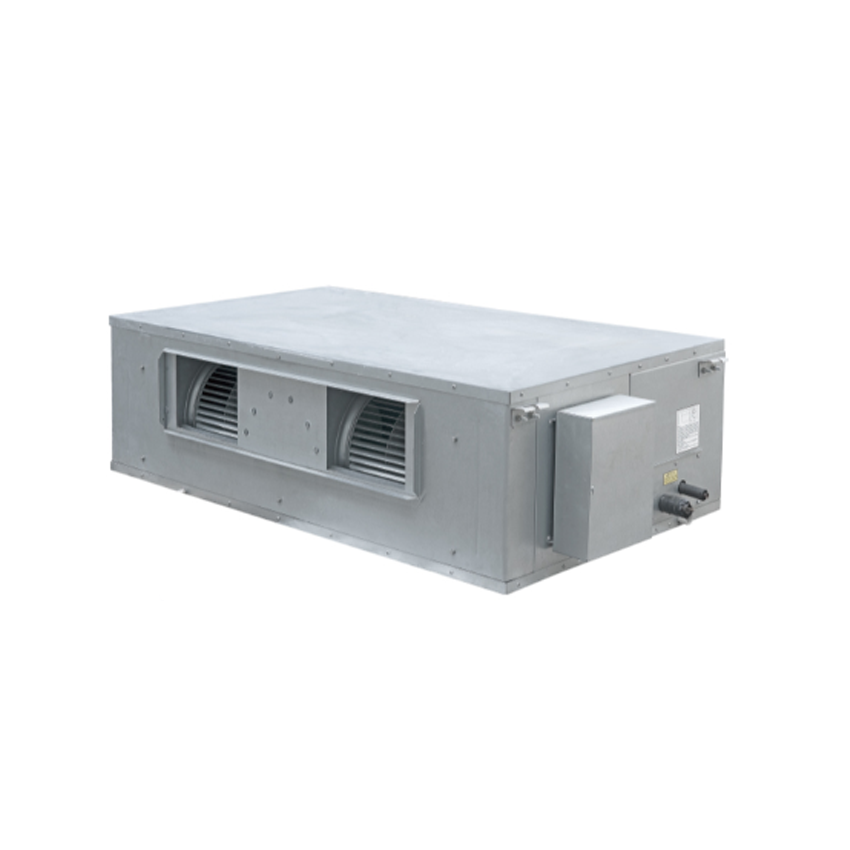

Indoor
| Product Group : | Ducted Systems – Gree |
|---|
Additional Info
| Indoor/ Outdoor/ Other : | Indoor | Single Split / Multi Split : | Single Split |
|---|
Air Volume/Air Flow
| Air Volume : | 1222 m³/h |
|---|
Cooling Capacity
| Cooling Capacity : | 20 kW | Cooling Capacity (Min/Rated/Max) : | 10 /20 /25 kW |
|---|
Electrical
| Max Current : | 11.3 A | Power Supply : | 220-240/1/50 V/Ph/Hz |
|---|---|---|---|
| Voltage : | 230 V |
Energy Efficiency/Performance
| COP : | 3.25 | EER : | 2.55 |
|---|
General Information
| Condensate Water Pump Provided : | No | Model Number : | AC5720/I |
|---|---|---|---|
| Remote Control : | ya1PF |
Heating Capacity
| Heating Capacity : | 22.4 kW | Heating Capacity (Min/Rated/Max) : | 10/22.4/30 kW |
|---|
Measurements
| Depth : | 870 mm | Height : | 440 mm |
|---|---|---|---|
| Net Weight : | 110 kg | Width : | 1690 mm |
Pipes
| Pipe Dimension : | 3/4 in, 3/8 in, 9.52 mm, 19.05 mm |
|---|
Refrigerant
| Refrigerant : | R410A | Refrigerant Pipe Size : | 3/8-3/4 in, 9.52-19.05 mm |
|---|
Sound Power/Pressure
| Sound Pressure Level (Low/Medium/High/Quiet) : | 52 dB(A) |
|---|
Wire
| Wire Diameter Interconnection Cable : | 2C + E |
|---|

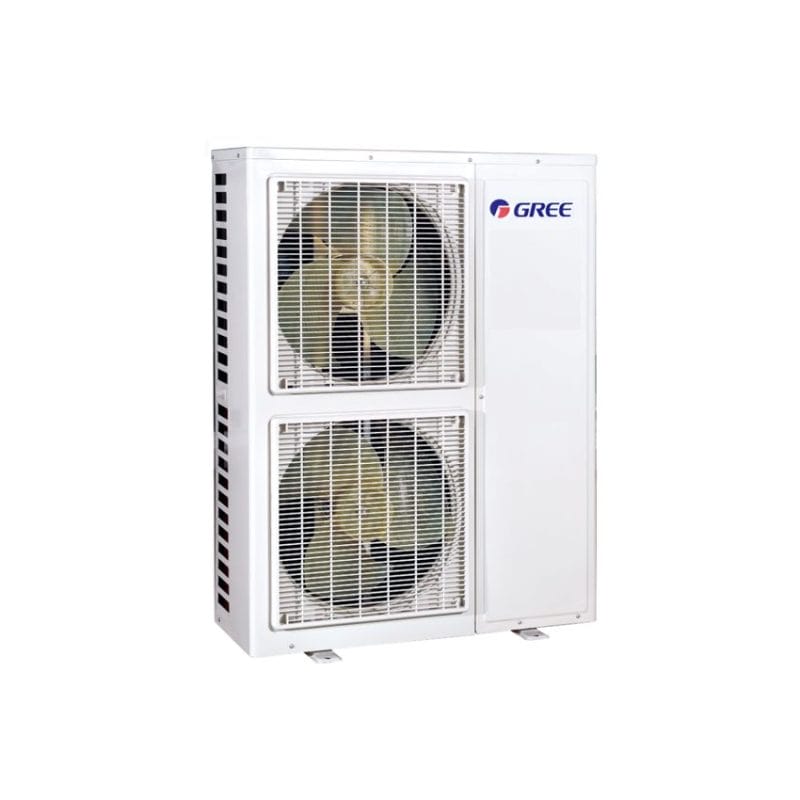

Outdoor
General
| Product Group : | Ducted Systems – Gree |
|---|
Additional Info
| Indoor/ Outdoor/ Other : | Outdoor | Indoor Units Connectable (Quantity) : | 1 |
|---|---|---|---|
| Single Split / Multi Split : | Single split |
Cooling Capacity
| Cooling Capacity : | 20 kW |
|---|
Electrical
| Power Consumption Cooling : | 6.06 kW | Power Consumption Heating : | 6 kW |
|---|---|---|---|
| Power Input (Heating/Cooling) : | 6/6.06 kW | Power Supply : | 415/3/50 V/Ph/Hz |
| Recommended Fuse : | 32 A | Voltage : | 415 V |
Fan
| Number Of Fans : | 2 |
|---|
General Information
| Model Number : | AC5720/O |
|---|
Heating Capacity
| Heating Capacity : | 22.4 kW |
|---|
Measurements
| Depth : | 460 mm | Height : | 1615 mm |
|---|---|---|---|
| Weight : | 155 kg | Width : | 940 mm |
Pipes
| Max Height Difference : | 30 m | Max Piping Length : | 50 m |
|---|---|---|---|
| Pipe Dimension : | 3/4 in, 3/8 in, 9.52 mm, 19.0 mm | Total Pipe Length Range : | 50 m |
Refrigerant
| Additional Charge : | 54 g/m | Refrigerant : | R410A |
|---|---|---|---|
| Refrigerant Charge : | 6.7 kg | Refrigerant Pipe Size : | 3/8-3/4 in, 9.52-19.05 mm |
| Refrigerant precharged up to : | 30 m |
Sound Power/Pressure
| Sound Pressure Level : | 60 dB(A) |
|---|
Temperature
| Temperature Range Cooling : | 16 – 30 °C | Temperature Range Heating : | 16 – 30 °C |
|---|
- Higher Efficiency
- Compact structure
- CAN Bus communication
- High and Adjustable ESP
- Wide operation ranges for both temp and voltage
- Refrigerant cooling technology
- Optimized fan blade and motor support
- Condenser simulation design
$7,957.00 Bundle Price for Selected items
Description
20.0 kW Cooling
22.4 kW Heating
Higher Efficiency | Anti-Cold Function | Intelligent defrosting | Splittable
