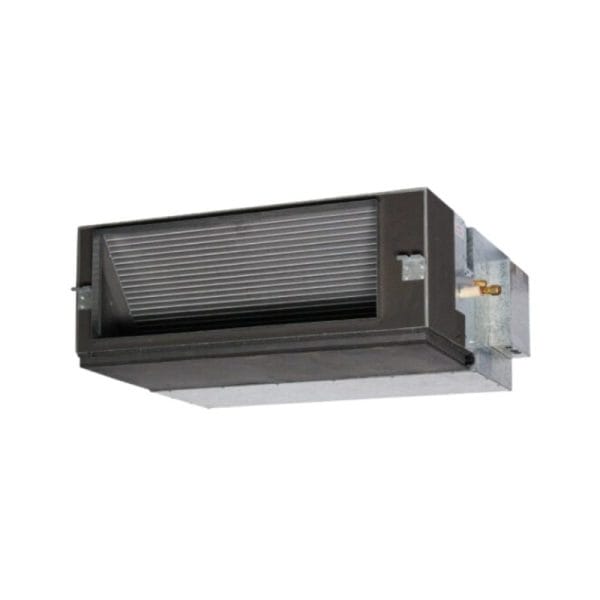

Daikin FXMQ250PV1A 28.0kW Ceiling Concealed Ducted Indoor Unit Only | R410A
28 kW Cooling
31.5 kW Heating
Daikin FXMQ250PV1A 28kW Ceiling Concealed Ducted Indoor Unit Only | R410A
The FXDYQ-MAV1 series are high static, high sensible ducted units that allow for greater
flexibility when designing duct layouts. The indoor unit can also be separated into two segments
for convenient handling and facilitate easier installation through openings in the ceiling.
| MODEL | FXMQ250PV1A | ||
| Power supply | 1 -phase, 220-240 V, 50 Hz | ||
| Cooling capacity | Btu/h | 95,500 | |
| kW | 28 | ||
| Heating capacity | Btu/h | 107,500 | |
| kW | 31.5 | ||
| Power consumption | Cooling | kW | 0.81 |
| Heating | kW | 0.81 | |
| Casing | Galvanized steel plate | ||
| Airflow rate (HH/H/L) | l/s | 1,400/1,200/1 ,ooo | |
| m3/min | 84.0/72.0/60.0 | ||
| External static pressure*2 | pa | 50-250 (150) | |
| Sound level (HH/H/L) | dB(A) | 46/42.5/39 | |
| Sound power (H) | dB(A) | 74 | |
| Dimensions (HxWxD) | mm | 470×1,333×919 | |
| Machine weight | kg | 85 | |
| Piping connections | Liquid | mm | 9.5 (Brazing) |
| Gas | mm | 22.2 (Brazing) | |
| Drain | mm | BSP 3/4 internal thread (OD 32.7) | |
| Note: Specifications are based on the following conditions; •Cooling: Indoor temp.: 27°CDB, 19°CWB, Outdoor temp.: 35°CDB, Equivalent piping length: 7.5 m, Level difference: 0 m. •Heating: Indoor temp.: 20°CDB, Outdoor temp.: 7°CDB, 6°CWB, Equivalent piping length: 7.5 m, Level difference: 0 m. •Capacity of indoor unit is only for reference. Actual capacity of indoor unit is based on the total capacity index. (See Engineering Data Book for details.) •Sound level: Anechoic chamber conversion value, measured at a point 1.5 m downward from the unit centre. During actual operation, these values are normally somewhat higher as a result of ambient conditions. 1: Power consumption values are based on conditions of rated external static pressure. 2: External static pressure can be modified using a remote controller that offers seven (FXMQ20-32PA), thirteen (FXMQ40PA), fourteen (FXMQ50-125PA), ten (FXMQ140PA) or fifteen (FXMQ160-250P) levels of control. These values indicate the lowest and highest possible static pressures. The rated static pressure is 50 Pa for FXMQ20-32PA 100 Pa for FXMQ40-140PA, 138 Pa for FXMQ160P, 130 Pa for FXMQ180P and 150 Pa for FXMQ200-250P. |
|||
Click here to download the brochure of Daikin FXMQ250PV1A 28kW Ceiling Concealed Ducted Indoor Unit Only | R410A
FXMQ-PV1A
-
Available in : Reverse Cycle (Heating & Cooling)
-
Capacities : 18.0kW, 20.0kW, 22.4kW, 28.0kW
-
Refrigerant : R410A
The FXMQ-PV1A series is Daikin’s new range of large capacity ducted VRV units. They feature a height of only 470mm, DC fan motor and ESP of up to 250Pa. Furthermore to facilitate installation they can also be separated into 2 sections for easier handling. The FXMQ-PV1A series is truly efficient yet powerful.
All Daikin air conditioners exceed MEPS requirements, in line with Daikin’s commitment to providing energy efficient, quiet, simple to use and reliable air conditioning solutions.
Description
28.0kW Cooling
31.5kW Heating
Separable | High Static
VRV Indoor Unit
