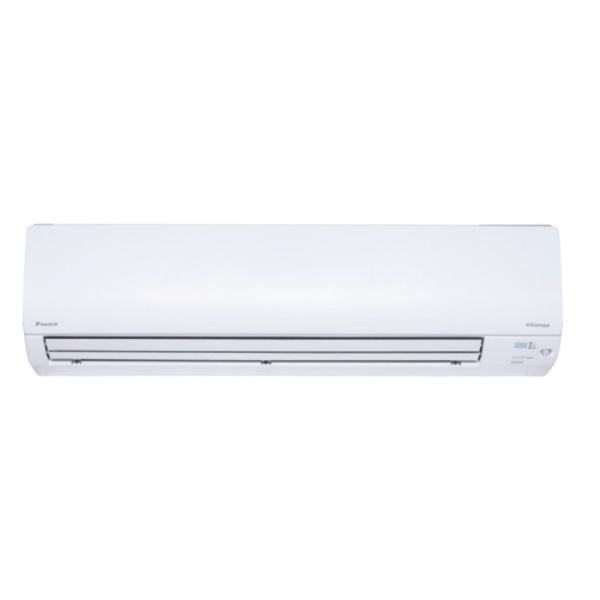

DAIKIN CTXM95RVMA 9.5kW Multi Reverse Cycle Indoor Unit Only

SKU: CTXM95RVMA

9.5 kW Cooling
10.3 kW Heating

DAIKIN CTXM95RVMA 9.5kW Multi Reverse Cycle Wall Indoor Unit Only R32 refrigerant
Wireless Controller

Note: It is part of multi split system.




> > > > Compare


Model name

CTXM95RVMA
Power supply 1 phase, 220-240 V, 50 Hz / 1 phase, 220-230 V, 60 Hz
Front panel colour White
Indoor air ow rate H Cooling l/s 400 (848)
Heating (cfm) 413 (876)
Indoor sound pressure level H/L/SL Cooling dB(A) 53/42/38
Heating 52/38/35
Indoor sound power level H Cooling dB(A) 67
Heating 66
Fan speed 5 steps, quiet and automatic
Temperature control Microcomputer control
Dimensions H x W x D mm 340 x 1,200 x 259
Machine weight kg 18
Piping connections Liquid ( are)

mm

ø6.4
Gas ( are) ø15.9
Drain ø16.0
Heat insulation Both liquid and gas pipes

Heating and Cooling the Modern Home

Features:
1. Outdoor unit connectable to five indoor units
2. Low environmental impact R-32 refrigerant
3. Energy-saving and powerful multi-split system
4. Comfort functions with individual control
5. Wide indoor unit lineup from 2.0 to 9.5 kW

Next-Generation R-32 Refrigerant
As the sole worldwide manufacturer of both air conditioning equipment and refrigerants, Daikin is continuously researching refrigerants as well as new technologies that can reduce energy consumption. Use of refrigerants with a lower impact on global warming is urgently required as climate change has become one of the most critical global issues. Daikin has now adopted R-32. This next-generation refrigerant does not deplete the ozone layer and has a lower impact on global warming.

Small yet Powerful Multi System Connectable at up to 181%
In most homes, people shift between large living areas during the day and the bedrooms at night. As this happens, Super Multi NX seamlessly redistributes capacity. This allows one powerful outdoor unit to support indoor units up to 181% of its rated capacity, economically air conditioning your entire home.

Lower Power Consumption
Super Multi NX achieves EERs of 3.91 to 4.95 for cooling operation and COPs of 4.38 to 5.15 for heating operation thanks to Daikin’s DC Inverter control and next-generation R-32 refrigerant.

Efficient Operation with No Further Setting
Daikin inverter air conditioners automatically operate at low capacity most of the time. Turning your system on and off means it has to operate at higher capacity to heat or cool a room. To save electricity, it is more efficient to continue operation at low capacity.
Super Multi NX can automatically adjust the temperature and air volume while suppressing humidity to boost efficiency.

Individual Control with Less Energy Wastage
Super Multi NX provides both individual and centralised control. Selecting individual control allows you to operate each unit from its remote controller for more precise setting of air volume and temperature. The ability to maintain comfort without changing the set temperature or turning the unit on/off is highly effective for cutting energy wastage.

Timer and Set Temperature: Critical Points for Energy Savings
The Schedule Timer allows up to five actions to be programmed for each day of the week. You can easily schedule on/off times and also set temperatures in advance for each of these periods. Once the weekly timer is set, the air conditioner operates each day without controller input. This means your system will constantly maintain a comfortable temperature and automatically turn itself off when you go out.

Quiet Nights in Your Neighbourhood
Naturally you want to reduce operating sound to a minimum while sleeping and your neighbours also appreciate a quiet outdoor environment. Wall-mounted CTKM20/25/35R and CTXM20/25/35R indoor units each provide a low sound pressure level of just 19 dB(A) while 3MKM52R and 3MXM52R outdoor units are also extremely quiet at 43 dB(A).

Wide Indoor Lineup Suitable for All Your Rooms
Daikin multi-split indoor units include wall-mounted, duct-connected and ceiling-mounted cassette types. The wide lineup helps you achieve the interior design as well as the cooling and heating you want. These series also have capacities from 2.0 right up to 9.5 kW class. It is so easy to choose the right unit for every room in your home.

Download the brochure of DAIKIN CTXM95RVMA 9.5kW Multi Reverse Cycle Indoor Unit Only

Daikin Multi-Split Air Conditioner

As a global air conditioning leader, Daikin is continually researching and identifying new and innovative ways to improve the performance of our products while simultaneously reducing their environmental impact. Our Super Multi NX multi-split system utilises R-32 refrigerant, which provides higher energy efficiency and lower global warming impact than R410A-based air conditioning.

The Super Multi NX outdoor unit is also capable of efficiently sharing capacity between several indoor units. Each indoor unit can be individually controlled to suit your specific requirements. This means airflow, temperature settings and scheduling can all be adjusted to meet personal preferences, delivering whole house comfort for everyone.

Description

9.5 kW Cooling
10.3 kW Heating

New Two-Area Intelligent Eye
