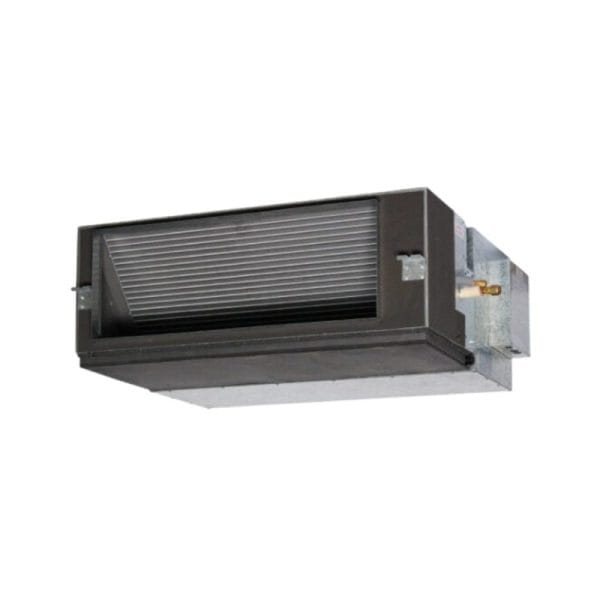

Daikin FXMQ180PV1A 20kW Ceiling Concealed Ducted AC

Daikin FXMQ180PV1A 20kW Ceiling Concealed Ducted Air Conditioner Indoor Unit Only | R410A

Daikin FXMQ180PV1A 20kW Ceiling Concealed Ducted Air Conditioner Indoor Unit Only | R410A

0 out of 5

( There are no reviews yet. )

Price range: $3,645.00 through $3,789.00

Daikin FXMQ180PV1A 20kW Ceiling Concealed Ducted AC

Indoor Unit FXMQ180PV1A | Controller BRC1E63
R410A Refrigerant | FXDYQ-MAV1 series
Part of a Multi System
5 Years Manufacturer’s Warranty

SKU: FXMQ180PV1A

Price Per Estate

Clear

Insulated Copper Pair Coil

Or own it from $138.00 weekly for 6 months*

Or pay in slices, no interest ever

Add to Wishlist

MODEL			FXMQ180PV1A
Power supply			1 -phase, 220-240 V, 50 Hz
Cooling capacity		Btu/h	68,200
Cooling capacity		kW	20
Heating capacity		Btu/h	76,400
Heating capacity		kW	22.4
Power consumption	Cooling	kW	0.65
Power consumption	Heating	kW	0.65
Casing			Galvanized steel plate
Airflow rate (HH/H/L)		l/s	1 ,160/995/820
Airflow rate (HH/H/L)		m3/min	69.6/59.7/49.2
External static pressure*2		pa	50-210 (130)
Sound level (HH/H/L)		dB(A)
Sound power (H)		dB(A)	73
Dimensions (HxWxD)		mm	470×1 ,133×919
Machine weight		kg	70
Piping connections	Liquid	mm	9.5 (Brazing)
	Gas	mm	19.1 (Brazing)
	Drain	mm	BSP 3/4 internal thread (OD 32.7)

Note: Specifications are based on the following conditions; •Cooling: Indoor temp.: 27°CDB, 19°CWB, Outdoor temp.: 35°CDB, Equivalent piping length: 7.5 m, Level difference: 0 m. •Heating: Indoor temp.: 20°CDB, Outdoor temp.: 7°CDB, 6°CWB, Equivalent piping length: 7.5 m, Level difference: 0 m. •Capacity of indoor unit is only for reference. Actual capacity of indoor unit is based on the total capacity index. (See Engineering Data Book for details.) •Sound level: Anechoic chamber conversion value, measured at a point 1.5 m downward from the unit centre. During actual operation, these values are normally somewhat higher as a result of ambient conditions. 1: Power consumption values are based on conditions of rated external static pressure. 2: External static pressure can be modified using a remote controller that offers seven (FXMQ20-32PA), thirteen (FXMQ40PA), fourteen (FXMQ50-125PA), ten (FXMQ140PA) or fifteen (FXMQ160-250P) levels of control. These values indicate the lowest and highest possible static pressures. The rated static pressure is 50 Pa for FXMQ20-32PA 100 Pa for FXMQ40-140PA, 138 Pa for FXMQ160P, 130 Pa for FXMQ180P and 150 Pa for FXMQ200-250P.

Design Flexibility
Using a DC fan motor, the external static pressure can be controlled within a range of 30 Pa* to 150 Pa.

Comfort
3-step fan speed and Auto are available for control of the airflow rate. Auto airflow rate control can be selected with wired remote controller (BRC1E63).

Flexible Installation
Slim Design with a height of only 245 mm, installation is possible even in buildings with narrow ceiling spaces. DC drain pump is equipped as standard accessory with 850 mm lift. Air suction direction can be altered from rear to bottom suction.

Automatic Airflow Adjustment
“Airflow rate auto adjustment function” at field setting (local setting by remote controller). This function can only be set via wired remote controller.

Easy Maintenance
Inspection and cleaning is facilitated by separating the drain pipe and inspection opening and by the drain pan maintenance check hole.

Daikin FXMQ180PV1A 20kW Ceiling Concealed Ducted Air Conditioner Indoor Unit Only | R410A – Brochure

FXMQ-PV1A

Available in : Reverse Cycle (Heating & Cooling)
Capacities : 18.0kW, 20.0kW, 22.4kW, 28.0kW
Refrigerant : R410A

The FXMQ-PV1A series is Daikin’s new range of large capacity ducted VRV units. They feature a height of only 470mm, DC fan motor and ESP of up to 250Pa. Furthermore to facilitate installation they can also be separated into 2 sections for easier handling. The FXMQ-PV1A series is truly efficient yet powerful.

All Daikin air conditioners exceed MEPS requirements, in line with Daikin’s commitment to providing energy efficient, quiet, simple to use and reliable air conditioning solutions.

Description

20 kW Cooling
22.4 kW Heating

Separable | High Static
VRV Indoor Unit

Q1: What are the main features of the Daikin Ceiling Concealed Ducted FXMQ-PV1A Series?

The Daikin Ceiling Concealed Ducted FXMQ-PV1A Series is a large-capacity VRV ducted solution designed for powerful and efficient climate control. The Daikin Ceiling Concealed Ducted FXMQ-PV1A Series features a compact 470mm height, high external static pressure up to 250Pa, a DC fan motor, and a split-unit design for easier installation and handling.

Q2: Is the Daikin Ceiling Concealed Ducted FXMQ-PV1A Series suitable for large commercial spaces?

Yes. The Daikin Ceiling Concealed Ducted FXMQ-PV1A Series is specifically engineered for large commercial and high-demand applications. The Daikin Ceiling Concealed Ducted FXMQ-PV1A Series delivers strong airflow performance and high-capacity operation, making it ideal for offices, retail spaces, and large buildings.

Q3: Does the Daikin Ceiling Concealed Ducted FXMQ-PV1A Series offer flexible installation options?

Yes. The Daikin Ceiling Concealed Ducted FXMQ-PV1A Series is designed with installation flexibility in mind. The Daikin Ceiling Concealed Ducted FXMQ-PV1A Series can be separated into two sections, making it easier to transport and install in tight ceiling spaces or challenging site conditions.

Q4: How does the Daikin Ceiling Concealed Ducted FXMQ-PV1A Series improve performance and efficiency?

The Daikin Ceiling Concealed Ducted FXMQ-PV1A Series uses a high-efficiency DC fan motor and advanced airflow design to deliver powerful yet controlled air distribution. The Daikin Ceiling Concealed Ducted FXMQ-PV1A Series combines high static pressure capability with energy-efficient operation for consistent indoor comfort.

Q5: Not sure what size air conditioner you need?

Use our free Air Conditioning Calculator & Size Guide as a starting point to estimate the right capacity for your room or home. Please note this calculator is a guide only — actual requirements may vary depending on your ceiling height, insulation, window size, orientation, and local climate conditions.

For a more accurate sizing recommendation tailored to your specific home or office, we recommend booking a quote with our team. Our air conditioning experts will assess your space and help you choose the perfect Daikin Ceiling Concealed Ducted FXMQ-PV1A Series unit with confidence — ensuring maximum comfort, efficiency, and value for money.

For more information about the Daikin FXMQ-PV1A Series, and available models, click here.
