INDOOR | 42QSH170D8S | ||
OUTDOOR | 38QSH170D8S | ||
Refrigerant type | R32 | ||
Power supply (Volts-Phase-Hz) | 220-240V /1 /50Hz | ||
Max input current | A | 31 | |
COOLING | Capacity – rated | kW | 16.2 |
Capacity – range (min max) | kW | 3.52 – 20.80 | |
Efficiency (rated) | EER | 3.29 | |
Operating current (rated) | A | 22.5 | |
HEATING | Capacity – rated | kW | 17 |
Capacity – range (min max) | kW | 2.93 ~ 21.10 | |
Efficiency (rated) | COP | 3.91 | |
Operating current (rated) | A | 19.5 | |
INDOOR UNIT | Dimension (WxDxH) | mm | 1400x858x440 |
Net weight | kg | 81.1 | |
Airflow volume (H/M/L) | l/s | 1056/833/635 | |
ESP Rated / max | pa | 50/200 | |
Air inlet duct flange | mm | 1188 / 385 | |
Air outlet duct flange | mm | 1188 / 385 | |
OUTDOOR UNIT | Dimension (WxDxH) | mm | 952x415x1333 |
Net weight | kg | 97.7 | |
Operating noise (sound power) (H) | dBA (@ swl) | 71 | |
Cooling usable temperature range | oc | 0 – 50 | |
Heating usable temperature range | oc | -20 – 24 | |
PIPE SIZE | Liquid line Ø | (m m) | 9.52 |
Gas line Ø | (m m) | 19 | |
Coupler style | – | flare | |
Drain (inside diameter) Ø | mm | 21 | |
Maximum length | m | 75 | |
Pre-charged length | m | 15 | |
Maximum height difference | m | 30 |
Carrier 42QSH170D8S / 38QSH170D8S 16.2kW Inverter High Static Ducted AC 1 Phase
16.2 kW Cooling
17.0 kW Heating
Long Pipe Runs | R32

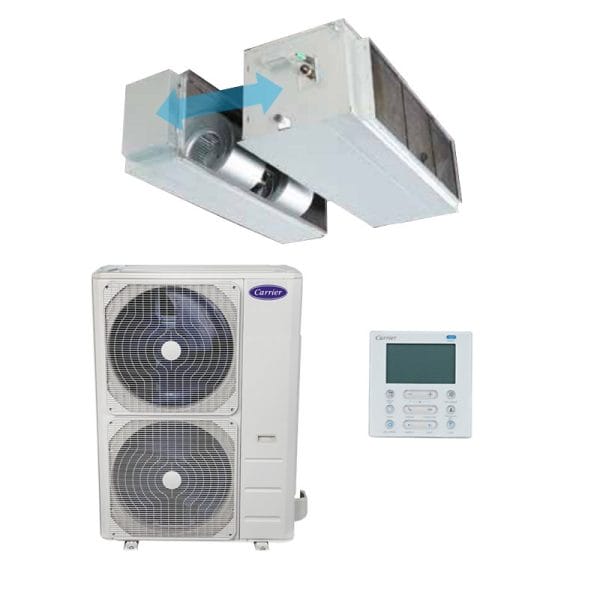

Carrier 42QSH170D8S / 38QSH170D8S 16.2kW Inverter High Static Ducted System
Includes KJR-120C Wired Controller with Weekly timer
High static ducted are ideal for residential applications, where ducts run to numerous outlets.
- Concealed installation
- Static pressure of 200Pa
- Long ducted connection
- Constant air volume technology for optimal
airflow - Quiet operation
- Easy to install and maintain
- 5 year warranty
Carrier High Static Ducted – QSH series
High static ducted AC systems are ideal for residential applications where ducts will be run to numerous outlets. With ducted air conditioning there is an indoor unit, which is hidden in the roof and ducts positioned throughout the home to distribute the air. Drawing in the air is the outdoor unit that is located outside the home.
Ducted Air Conditioning consists of an indoor and outdoor unit. The indoor unit is concealed in the roof with ducts around the home distributing the air. The outdoor unit is situated outside of the building. These solutions are perfectly concealed to not impact the design of your rooms and are flexible to install.
The High Static Inverter Ducted AC systems are ideal for residential purposes across multiple rooms. The Slimline Inverter Ducted AC system is fit for commercial ceiling spaces such as apartments or small offices.
Description
16.2 kW Cooling
17.0 kW Heating
Long Pipe Runs | R32
