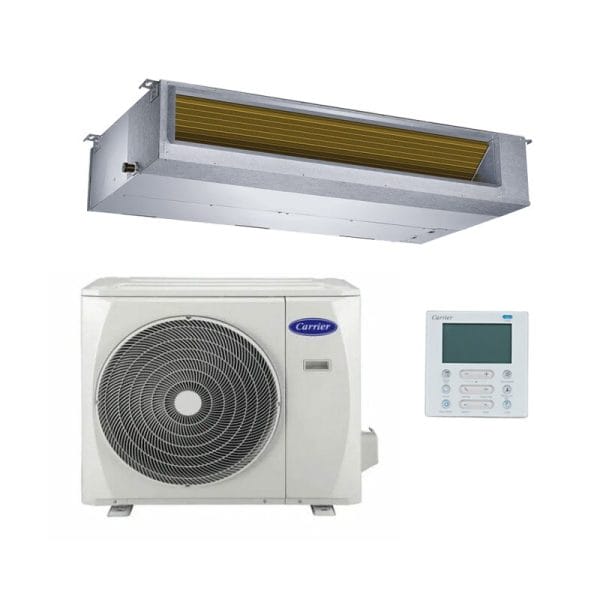

Carrier 42QSM090D8S / 38QSM090D8S 8.7kW Inverter Slim Ducted System | QSM Series

SKU: 42QSM090D8S / 38QSM090D8S

Carrier 42QSM090D8S / 38QSM090D8S 8.7kW Inverter Slim Ducted System | QSM Series


  INDOOR   42QSM090D8S
  OUTDOOR   38QSM090D8S
  Refrigerant type   R32
Power supply (Volts-Phase-Hz)   220-240V

/1/50Hz







COOLING

Capacity – rated kW 8.70
Capacity – range (min

~ max)



kW



2.95 ~ 12.05

Efficiency (rated) EER 3.28
Operating current (rated)

A



11.29







HEATING

Capacity – rated kW 9.28
Capacity – range (min

~ max)



kW



2.43 ~12.82

Efficiency (rated) COP 4.00
Operating current (rated)

A



10.14





INDOOR UNIT

Dimension (WxDxH) mm 1360x774x249
Net weight kg 39.9
Airflow volume (H/M/L)

m3/h



2213/1761/1173

ESP Rated / max Pa 37 / 160








OUTDOOR UNIT

Dimension (WxDxH) mm 946x410x810
Net weight kg 70
Operating noise (sound power) (H) dBA (@ swl)

67

Cooling usable temperature range ˚C 0~50
Heating usable temperature range ˚C -20~24










PIPE SIZE

Liquid line Ø (mm) 9.52
Gas line Ø (mm) 15.9
Coupler style flare
Drain (inside diameter) Ø

mm



21

Maximum length m 75
Chargeless length m 15
Maximum height difference

m



30

Slimline ducted provide solutions in light commercial applications and are ideal for hotels, offices, and apartments.

  • Compact design to fit into most ceiling space
  • Static pressure of up to 160Pa
  • Constant air volume technology for optimal
    airflow
  • New eccentric fan design for improved
    performance
  • Easy to install and maintain
  • 5-year warranty

Description

8.7 kW Cooling
9.3 kW Heating

Low Profile Design | R32
