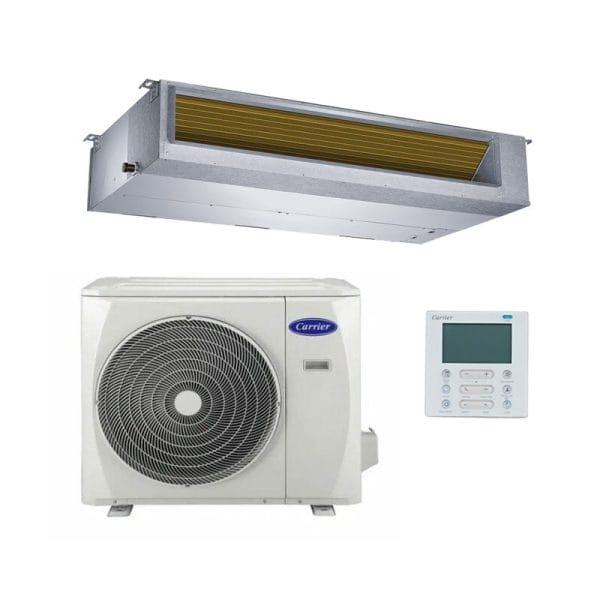

Carrier 42QSM060D8S / 38QSM060D8S 5.8kW Inverter Slim Ducted System | QSM Series

SKU: 42QSM060D8S / 38QSM060D8S

Carrier 42QSM060D8S / 38QSM060D8S 5.8kW Inverter Slim Ducted System | QSM Series


  INDOOR   42QSM060D8S
  OUTDOOR   38QSM060D8S
  Refrigerant type   R32
Power supply (Volts-Phase-Hz)   220-240V

/1/50Hz







COOLING

Capacity – rated kW 5.83
Capacity – range (min

~ max)



kW



2.65 ~ 8.83

Efficiency (rated) EER 3.35
Operating current (rated)

A



7.27







HEATING

Capacity – rated kW 6.47
Capacity – range (min

~ max)



kW



1.76 ~ 10.52

Efficiency (rated) COP 4.02
Operating current (rated)

A



6.57





INDOOR UNIT

Dimension (WxDxH) mm 1100x774x249
Net weight kg 31.6
Airflow volume (H/M/L)

m3/h



1498/1298/1044

ESP Rated / max Pa 25 / 160








OUTDOOR UNIT

Dimension (WxDxH) mm 890x342x673
Net weight kg 45
Operating noise (sound power) (H) dBA (@ swl)

66

Cooling usable temperature range ˚C 0~50
Heating usable temperature range ˚C -20~24










PIPE SIZE

Liquid line Ø (mm) 9.52
Gas line Ø (mm) 15.9
Coupler style flare
Drain (inside diameter) Ø

mm



21

Maximum length m 50
Chargeless length m 15
Maximum height difference

m



25

Slimline ducted provide solutions in light commercial applications and are ideal for hotels, offices, and apartments.

  • Compact design to fit into most ceiling space
  • Static pressure of up to 160Pa
  • Constant air volume technology for optimal
    airflow
  • New eccentric fan design for improved
    performance
  • Easy to install and maintain
  • 5-year warranty

Description

5.8 kW Cooling
6.5 kW Heating

Low Profile Design | R32
