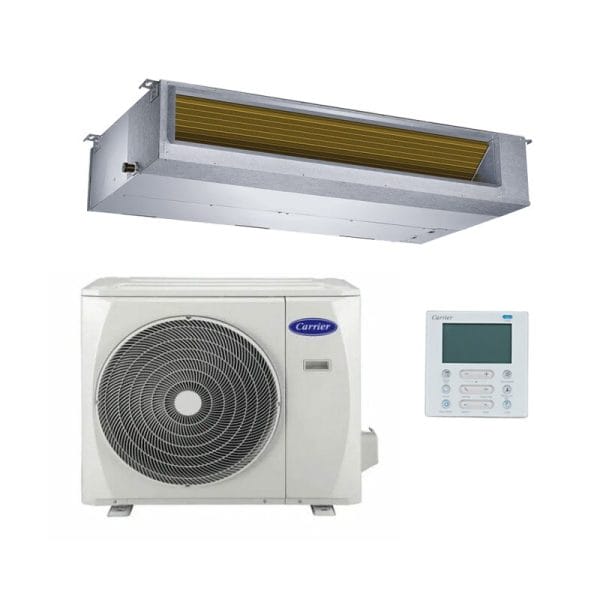

Carrier 42QSM070D8S / 38QSM070D8S 7.1kW Inverter Slim Ducted System | QSM Series

SKU: 42QSM070D8S / 38QSM070D8S

Carrier 42QSM070D8S / 38QSM070D8S 7.1kW Inverter Slim Ducted System | QSM Series


$2,260.00

zip money
  INDOOR   42QSM070D8S
  OUTDOOR   38QSM070D8S
  Refrigerant type   R32
Power supply (Volts-Phase-Hz)   220-240V

/1/50Hz







COOLING

Capacity – rated kW 7.08
Capacity – range (min

~ max)



kW



2.65 ~ 8.83

Efficiency (rated) EER 3.22
Operating current (rated)

A



9.16







HEATING

Capacity – rated kW 7.08
Capacity – range (min

~ max)



kW



1.76 ~ 10.52

Efficiency (rated) COP 3.87
Operating current (rated)

A



7.44





INDOOR UNIT

Dimension (WxDxH) mm 1100x774x249
Net weight kg 31.6
Airflow volume (H/M/L)

m3/h



1498/1298/1044

ESP Rated / max Pa 25 / 160








OUTDOOR UNIT

Dimension (WxDxH) mm 890x342x673
Net weight kg 45
Operating noise (sound power) (H) dBA (@ swl)

66.5

Cooling usable temperature range ˚C 0~50
Heating usable temperature range ˚C -20~24










PIPE SIZE

Liquid line Ø (mm) 9.52
Gas line Ø (mm) 15.9
Coupler style flare
Drain (inside diameter) Ø

mm



21

Maximum length m 50
Chargeless length m 15
Maximum height difference

m



25

Slimline ducted provide solutions in light commercial applications and are ideal for hotels, offices, and apartments.

  • Compact design to fit into most ceiling space
  • Static pressure of up to 160Pa
  • Constant air volume technology for optimal
    airflow
  • New eccentric fan design for improved
    performance
  • Easy to install and maintain
  • 5-year warranty

Description

7.1 kW Cooling
7.1 kW Heating

Low Profile Design | R32

air conditioning enquiry
