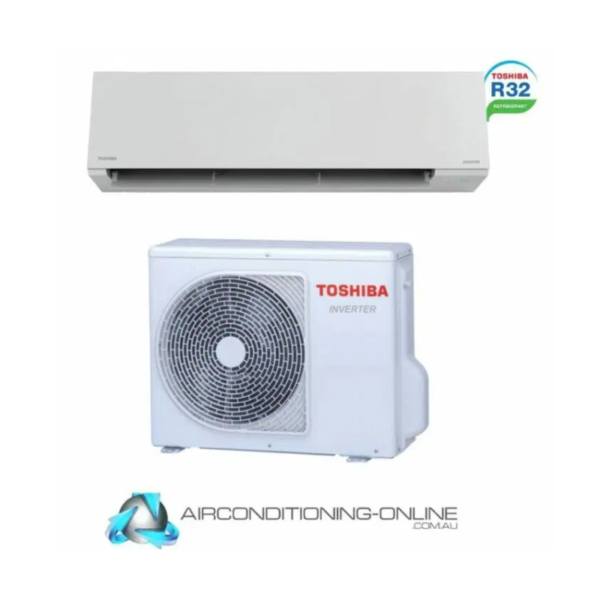

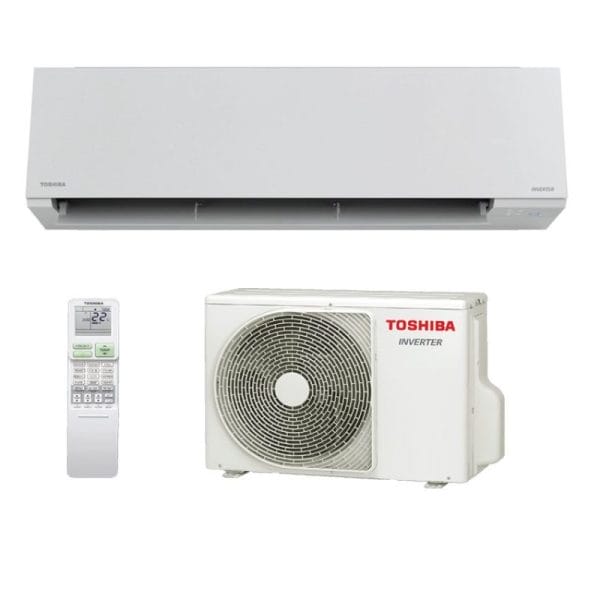

Toshiba Shorai Edge E2KVSG24 7.1kW High Wall Air Conditioner
7.1 kW Cooling | 8.0 kW Heating
Toshiba Shorai Edge E2KVSG24 7.1kW High Wall Air Conditioner
System E2KVSG24 Indoor RAS-24E2KVSG-A Outdoor RAS-24E2AVSG-A
Wireless Controller | Ultra-Pure Filter [PM2.5 Purification] | Silent Operation [Outdoor] | 3D Airflow
7 Years Manufacturer’s Warranty
| Indoor | RAS-24E2KVSG-A | ||
| Outdoor | RAS-24E2AVSG-A | ||
| Cooling Capacity – Rated | CO | kW | 7.10 |
| Cooling Capacity – Range | CO | kW | 1.50 – 8.20 |
| Power input [rated (min – max)] | CO | kW | 2.0 (0.30 – 2.60) |
| Operating current [rated (min – max)] | CO | A | 9.65 (1.80 – 12.70) |
| AEER | CO | 3.41 | |
| Heating Capacity – Rated | RC | kW | 8.00 |
| Heating Capacity – Range | RC | kW | 1.70 – 9.20 |
| Power input [rated (min – max)] | RC | kW | 2.07 (0.30 – 2.40) |
| Operating current [rated (min – max)] | RC | A | 9.97 (1.80 – 11.75) |
| ACOP | RC | 3.71 | |
| Indoor Unit | |||
| Airflow Volume (High/Mid/Low) | CO | m³/hr | 1370/1120/740 |
| Mositure removal | l/hr | 4.00 | |
| Dimension (WxLxH) | mm | 320 x 1053 x 245 | |
| Net Weight | kg | 14 | |
| Sound Power at Cooling Operation (high) | CO | dB | 62 |
| Outdoor Unit | |||
| Dimension (WxLxH) | mm | 300 x 800 x 630 | |
| Net Weight | kg | 41 | |
| Cooling Operating range (Outside) | CO | ◦C | `-10 ~ 46 |
| Heating Operating range | RC | ◦C | `-15 ~ 24 |
| Sound Power at Cooling Operation (high) | CO | dB | 68 |
| Pipe Size | |||
| Liquid Side | (mm) | 6.35 | |
| Gas Side | (mm) | 12.70 | |
| Maximum Piping Length | (m) | 25 | |
| Maximum Piping Height difference | (m) | 15 | |
| Chargeless Length | (m) | 15 | |
| Compressor type | Twin Rotary | ||
| Power Supply | V/ph/Hz | 220-240V/1Ph/50Hz |
Design and reliability
Innovation, efficiency, high reliability, energy savings – these powerful values are at the heart of everything we do at Toshiba. For over 50 years, Toshiba has been providing its clients with the precision and expertise of Japanese quality.
Toshiba’s Twin-Rotary Compressor
This compressor enables the adoption of a high-pressure refrigerant. High efficiency is evident in low speed operation ranges. It can reduce energy consumption when operated in long stable conditions. Rotating with two rollers at the same time makes accurate compressor rotation possible with less energy loss. As a result, it offers a great reduction in energy consumption with powerful operation.
MAGIC COIL ACRYLIC RESIN COATED
Shorai is equipped with an acrylic resin coated coil, which helps to prevent water and dust from sticking to the coil.
Ultra-Pure Filter
PM2.5 purification
• PM2.5 refers to particulate
matter coming from atmospheric pollution, that have a diameter of less than 2.5 micrometers
• Toshiba Ultra-Pure filter captures up to 94% of PM2.5, creating healthy living spaces at home (1)
• Prevents formation of mould and fungi
(1) Nantong deli purification equipment factory Co, Ltd
Self-Cleaning
After shutting down the system, moisture stays trapped inside. The 30 min fan operation after shutting down helps dry the water droplets keeping the coils dry and clean
- Reduces Moisture.
- Reduces mould formation.
- Fan will turn off after 30 mins.
Description
7.1 kW Cooling
8.0 kW Heating
Ultra-Pure Filter [PM2.5 Purification] | Silent Operation [Outdoor] | 3D Airflow
