Indoor | RAS-13E2KVSG-A | ||
Outdoor | RAS-13E2AVSG-A | ||
Cooling Capacity – Rated | CO | kW | 3.50 |
Cooling Capacity – Range | CO | kW | 0.80 – 4.20 |
Power input [rated (min – max)] | CO | kW | 0.85 (0.22 – 1.13) |
Operating current [rated (min – max)] | CO | A | 4.75 (1.35 – 5.50) |
AEER | CO | 3.98 | |
Heating Capacity – Rated | RC | kW | 3.70 |
Heating Capacity – Range | RC | kW | 0.90 – 5.60 |
Power input [rated (min – max)] | RC | kW | 0.82 (0.19 – 1.54) |
Operating current [rated (min – max)] | RC | A | 4.65 (1.14 – 7.30) |
ACOP | RC | 4.38 | |
Indoor Unit | |||
Airflow Volume (High/Mid/Low) | CO | m³/hr | 820/560/360 |
Mositure removal | l/hr | 1.80 | |
Dimension (WxLxH) | mm | 293 x 800 x 226 | |
Net Weight | kg | 10 | |
Sound Power at Cooling Operation (high) | CO | dB | 58 |
Outdoor Unit | |||
Dimension (WxLxH) | mm | 290 x 780 x 550 | |
Net Weight | kg | 34 | |
Cooling Operating range (Outside) | CO | ◦C | `-10 ~ 46 |
Heating Operating range | RC | ◦C | `-15 ~ 24 |
Sound Power at Cooling Operation (high) | CO | dB | 62 |
Pipe Size | |||
Liquid Side | (mm) | 6.35 | |
Gas Side | (mm) | 9.52 | |
Maximum Piping Length | (m) | 20 | |
Maximum Piping Height difference | (m) | 12 | |
Chargeless Length | (m) | 15 | |
Compressor type | Twin Rotary | ||
Power Supply | V/ph/Hz | 220-240V/1Ph/50Hz |

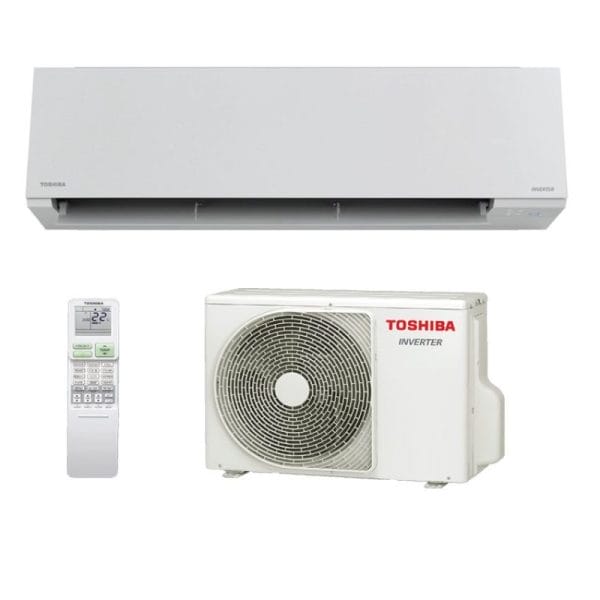

Toshiba Shorai Edge RAS-13E2KVSG-A/RAS-13E2AVSG-A 3.5kW Reverse Cycle Inverter Split System Air Conditioner
Toshiba Shorai Edge RAS-13E2KVSG-A/RAS-13E2AVSG-A 3.5kW Reverse Cycle Inverter Split System Air Conditioner
Ultra-Pure Filter [PM2.5 Purification]
Click here to view the brochure of Toshiba Shorai Edge Air Conditioning System
Description
3.5 kW Cooling
3.7 kW Heating
Ultra-Pure Filter [PM2.5 Purification] | R32
Free Shipping Metro Areas
