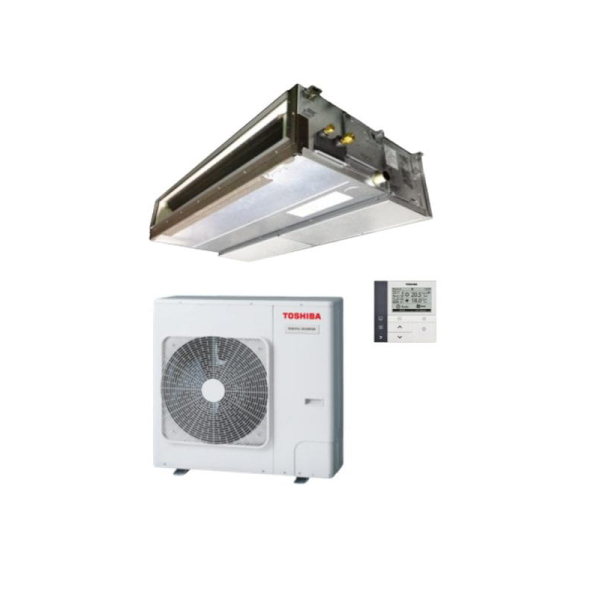

Fully Installed TOSHIBA RAV-GM1401DTP-A / RAV-GM1401ATP-A 12.5kW Ducted System 1 Phase

SKU: RAV-GM1401DTP-A / RAV-GM1401ATP-A / RBC-AMS41E | Fully Installed

Fully Installed TOSHIBA RAV-GM1401DTP-A / RAV-GM1401ATP-A 12.5kW Ducted System 1 Phase

  • 6 outlets and 2 zones
  • Based on Single Storey dwelling
  • Installed by License and Arctick Certified Installers
  • Outdoor unit to be placed on Concrete slab | PVC Slab | PVC Mounting Blocks.
  • Weatherproof isolator placed at outdoor.
  • Use of PVC or Colourbond Ducts.
  • Includes electrical circuit up to 15 metres.
  • 5 years full manufacturer warranty on Parts and Labour.
  • Sydney, Central Coast, and Newcastle Only.
    *T and C Applies

Indoor Model RAV-GM1401DTP-A
Outdoor Model RAV-GM1401ATP-A
Cooling Capacity (Range) kW 12.5 [3.0 – 14.0]
EER 3.20
Heating Capacity (Range) kW 14.0 [3.0 – 16.0]
COP 3.61
Maximum Operating Current A 26.00
Air flow (H / M / L) l/s 875 / 716 / 569
External Static Pa 50 – 270
Dimensions – Indoor (H x W x D) mm 298 x 1400 x 750
Dimensions – Outdoor (Hx W x D) mm 890 x 900 x 320
Weight – Indoor / Outdoor kg 42 / 68
Sound Pressure Level Indoor / Outdoor dB(A) 49 / 57
Operating Range Cooling °C db -15 to 46
Operating Range Heating °C db -15 to 24
Pipe Sizes (Liquid / Gas) mm 9.52 / 15.88
Maximum Pipe Length / Lift m 50 / 30
Maximum Pre-charged Length m 30
Power Supply 1ph/220-240V/50Hz

Description

12.5 kW Cooling
14.0 kW Heating
Includes Weekly Timer Wired Controller
