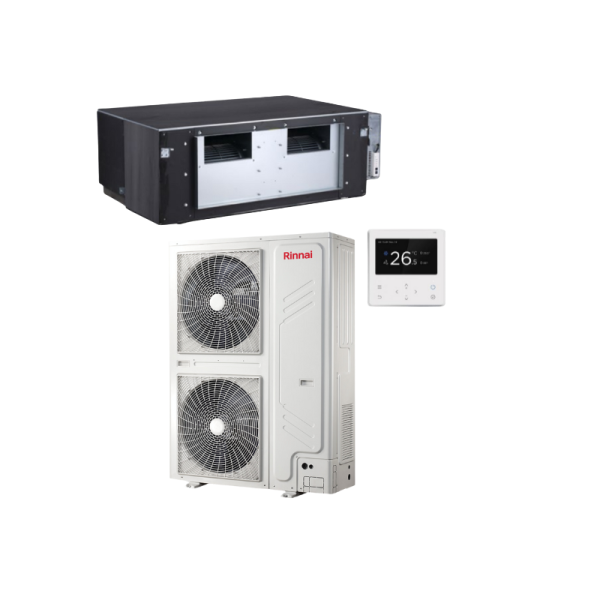

Rinnai DINLR20Z7 / DONSR20Z9 20kW Ducted Systems Three Phase

SKU: DINLR20Z7 / DONSR20Z9

20 kW Cooling  / 20 kW Heating Three Phase

Indoor : DINLR20Z7

Outdoor: DONSR20Z9

DRC FCU INV  20kW 3 Phase

Includes Wired Programmable Controller


Rinnai – System Model No. 20
Nominal Capacity kW 20
Power Supply (To Outdoor Unit) V- Ph-Hz 415 – 3 – 50
Maximum Input Power kW 10.35
Maximum Input Current

A

18.0
Recommended Circuit Breaker Size 30






Cooling

Rated Capacity

kW

20
Capacity Range 10.0 – 26.0
Rated Input Power kW 5.95
Rated Input Current A 9.09
AEER W/W 3.29
Rated Capacity

Capacity Range



kW

20

10.0 ~ 23.7

Heating Rated Input Power kW 5.90
Rated Input Current A 8.9
ACOP W/W 3.32
Indoor Unit DINLR20Z7
Rated Input W 990
Rated Current A 4.48
Air Flow High Speed L/s (ESP) 1203 (170 Pa)
Maximum External Static Pressure (ESP) Pa 250
Noise Level Sound Pressure @ 1.4m (Hi / Med / Lo) dB(A) 57 / 54 / 50


Dimensions

Net (W × D × H)

mm

1454 x 931 x 515
Packing (W × D × H) 1509 x 990 x 550
Net / Gross weight kg 130 / 142
Duct Connections Supply Air (W × H)

Return Air (W × H)

936 x 378

1122 x 342

Condensate Drain Pipe Diameter mm OD 32
Refrigerant Piping Liquid / Gas Connections 12.7 / 22.20
Moisture Removal L/h 14.0
Controller Type
Operating Range °C 10-40
Outdoor Unit DONSR20Z9
Power Supply V-Ph-Hz
Starting Current A 5.0
Compressor Type Rotary
Sound Pressure Level @ 1m

dB(A)

59
Sound Power Level 70


Dimensions

Net (W × D × H)

mm

1120 x 528 x 1558
Packing (W × D × H) 1270 x 565 x 1720
Net / Gross weight kg 137 /153
Type
Pre-Charged Length m 7.5
Charge Adjustment (Add or Remove) g/m 54
Refrigerant Piping Liquid / Gas Connections mm 9.52 / 22.2
Maximum Pipe Length 60
Maximum Vertical Separation (Outdoor above) m 25
Ambient Temperature Limits °C Cooling: -15 ~ 46. Heating -15 ~ 24

Click here to view the brochure of the Rinnai Ducted Air Conditioning System

Description

20 kW Cooling
20 kW Heating
