Rinnai DINLR18B1 / DONSR18B1 18kW Ducted Systems Single Phase R32
17.0 kW Cooling / 18.0 kW Heating

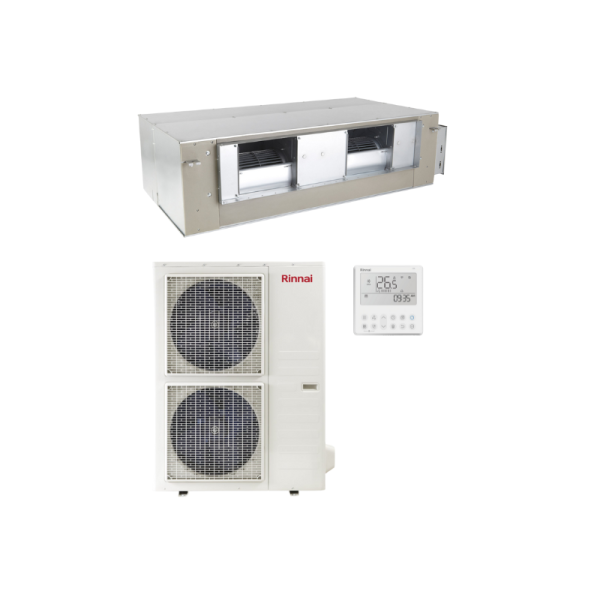

Rinnai DINLR18B1 / DONSR18B1 18kW Ducted Systems Single Phase R32
Indoor : DINLR18B1
Outdoor: DONSR18B1
Controller with WIFI built in: CNTRLDRCINW
| Rinnai – System Model No | 18 | ||
| Nominal Capacity | kW | 18 | |
| Power Supply (To Outdoor Unit) | V- Ph-Hz | 220~240 – 1 – 50 | |
| Maximum Input Power | W | 7000 | |
| Maximum Input Current | A | 31.0 | |
| Recommended Circuit Breaker Size | 32 | ||
| Cooling | Rated Capacity | kW | 17 |
| Capacity Range | 6.80 – 19.50 | ||
| Rated Input Power | W | 5250 | |
| Rated Input Current | A | 22.5 | |
| AEER | W/W | 3.2 | |
| Heating | Rated Capacity | kW | 18.0 |
| Capacity Range | 6.90 – 21.10 | ||
| Rated Input Power | W | 4.55 | |
| Rated Input Current | A | 19.5 | |
| ACOP | W/W | 3.9 | |
| Indoor Unit | DINLR18B1 | ||
| Rated Input | W | 420 | |
| Rated Current | A | 3.0 | |
| Air Flow (With Filter) | High Speed | L/s (ESP) | 1080 (150Pa) |
| Air Flow (Minimum) | L/s (ESP) | 410 | |
| Maximum External Static Pressure (ESP) | Pa | 200 | |
| Noise Level | Sound Pressure @ 1.4m (Hi / Med / Lo) |
dB(A) | 53/49.5/45.3 |
| Dimensions | Net (W × D × H) | mm | 1400x858x440 |
| Packing (W × D × H) | 1605x910x515 | ||
| Net / Gross weight | kg | 81/92 | |
| Duct Connections |
Supply Air (W × H) | mm | 1188 x 385 |
| Return Air (W × H) | 1188 x 385 | ||
| Condensate Drain Pipe Outer Diameter |
25 | ||
| Refrigerant Piping |
Liquid / Gas Connections | 9.5 / 19.0 | |
| Moisture Removal | L/h | 3.5 | |
| Controller | Type | Wired Programmable Controller with Wi-Fi Contro | |
| Operating Range | °C | Cooling: 17 ~ 32, Heating: 0 ~ 30 | |
| Outdoor Unit | DONSR18B1 | ||
| Power Supply | V-Ph-Hz | 220 – 240 – 1 – 50 | |
| Starting Current | A | 4 | |
| Compressor | Type | Twin Rotary | |
| Sound Pressure Level @ 1m | dB(A) | 60.5 | |
| Sound Power Level | 72 | ||
| Dimensions | Net (W × D × H) | mm | 952 x 415 x 1333 |
| Packing (W × D × H) | 1095 x 495 x 1380 | ||
| Net / Gross weight | kg | 96 / 111 | |
| Refrigerant Piping |
Type | R32 | |
| Pre-Charged Length | mm | 15m | |
| Charge Adjustment (Add or Remove) |
g/m | 24 | |
| Liquid / Gas Connections | mm | 9.5 / 19.0 | |
| Maximum Pipe Length | mm | 75 | |
| Minimum Pipe Length | 3 | ||
| Maximum Vertical Separation |
30 | ||
| Ambient Temperature Limits | °C | Cooling: -15 ~ 50. Heating -20 ~ 24 | |
Rinnai’s Ducted Air Conditioning system discreetly delivers powerful home heating and cooling, keeping you comfortable regardless of the extremes outside.
Concealed in your roof cavity, the efficient indoor fans & DC compressor quietly operate and the advanced ducted inverter control mechanisms ensure a controlled warm-up and cool down with outstanding energy efficiency ratings.
Enjoy the exceptional benefits of a Reverse Cycle Air Conditioner without the hassle of installing and the sight of multiple indoor units. Condition and filter the air in your whole home, or choose to zone specific areas tailored to individual comfort levels.
3 times more efficient than conventional heating, Rinnai’s Ducted Air Conditioning system features optional Wi-Fi, programmable controller, and slimline design.
Features:
- 8 zones
- Zone temperature control
- Sleep timer
- AC Unit control
- Favourites and schedules
- 5% Airflow control adjustments
- WI-FI & Remote access
- ‘Filter Clean’ reminder with adjustable frequency
- Heating & Cooling
- Slimline Design
- Wi-Fi Control
- Programmable Controller
- Fast Temperature Control
- Reduced Operational Costs
- Quiet Operation
- Zoning Option
Click here to view the brochure of the Rinnai Ducted Air Conditioning System
Description
17.0 kW Cooling
18.0 kW Heating
