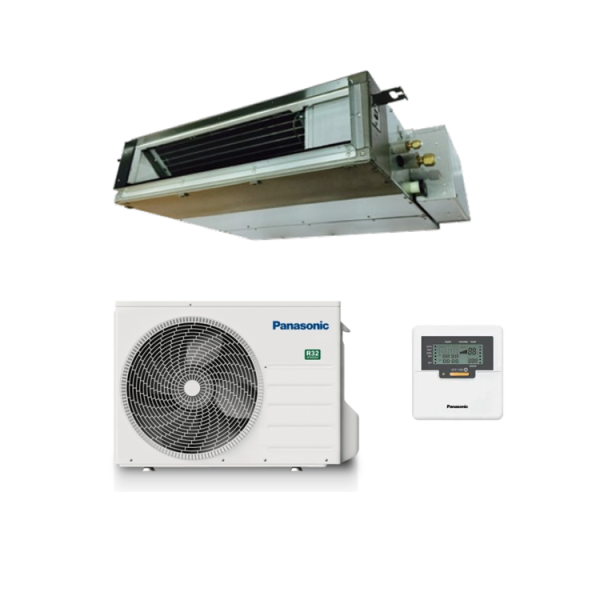

Panasonic Inverter Ultra Slim Ducted 3.5 kW CS-Z35UD3RAW / CU-Z35UBRA Bulkhead -R32

SKU: CS-Z35UD3RAW / CU-Z35UBRA

3.5 kw Cooling
4.0 kw Heating

Indoor : CS-Z35UD3RAW
Outdoor: CU-Z35UBRA
Includes Wired Controller

With a height of just 200mm, the Panasonic Ultra Slim Ducted unit is the perfect solution to any application where space is limited. In an increasingly energy conscious world, Panasonic strives to create air conditioners with class leading energy efficiency. Panasonic’s Premium Inverter technology features the ability to regulate room temperature with little fluctuation, and reduce wasteful operation, resulting in increased energy savings. Achieved with rear or bottom return air, coupled with a built in drain pump, the Ultra Slim Ducted unit is the perfect solution for commercial and residential applications with limited space for a ducted indoor unit.



$1,905.00

> > > > > Compare
Indoor Unit CS-Z35UD3RAW
Outdoor Unit CU-Z35UBRA
Function Cooling + Heating
Cooling Capacity Rated Conditions kW 3.7
Cooling Capacity Range – Min ~ Max kW 0.85 ~ 4.00
EER w/w 3.85
Heating Capacity Rated Conditions kW 4.2
Heating Capacity Range – Min ~ Max kW 0.85 ~ 5.60
COP w/w 4.08
Sound Pressure Indoor – Cool – Hi / Med / Lo dB(A) 33 / 26 / 23
Sound Pressure Indoor – Heat – Hi / Med / Lo dB(A) 35 / 27 / 24
Sound Power Outdoor – Cool – Hi / Med / Lo dB(A) 49 / 42 / 39
Sound Power Outdoor – Heat – Hi / Med / Lo dB(A) 51 / 43 / 40
Air Flow – Cool / Heat L/s 187 / 187
Indoor Dimensions – H x W x D mm 750 x 200 x 640
Outdoor Dimensions – H x W x D mm 619 x 824 x 299
Weight – Indoor kg 19
Weight – Outdoor kg 35
Refrigerant Pipe Diameter – Liquid Side / Gas Side mm Ø6.35 / Ø9.52
Piping Extension Length Min ~ Max m 3 ~ 20
Elevation Difference m 15
Operating Temperature Range – Outdoor – Cooling °C -10 ~ 46
Operating Temperature Range – Outdoor – Heating °C -15 ~ 24

Compact Design

With a height of just 200mm, the Panasonic Ultra Slim Ducted unit is the perfect solution to any application where space is limited.

High Energy Efficiency

In an increasingly energy conscious world, Panasonic strives to create air conditioners with class leading energy efficiency. Panasonic’s Premium Inverter technology features the ability to regulate room temperature with little fluctuation, and reduce wasteful operation, resulting in increased energy savings.

Flexible Installation

Achieved with rear or bottom return air, coupled with a built in drain pump, the Ultra Slim Ducted unit is the perfect solution for commercial and residential applications with limited space for a ducted indoor unit.

High Performance

Panasonic’s Premium Inverter technology is designed for high performance, keeping you comfortable all year round. With a superior operating range, our air conditioning systems provide comfort with ease, regardless of indoor or outdoor conditions.

Anti Corrosion

All heat exchangers feature our Blue Fin technology, which increases resistance to corrosion compared to non-Blue Fin models.

* Refer to the installation instructions for further details.
* Graphics are for illustrative purposes only.

A Smarter Way to Control Your Air

The Panasonic Comfort Cloud App & WLAN Smart Adaptor deliver convenient control, connectivity and comfort. Seamlessly adjust temperature, monitor energy consumption, change modes, etc. all from just one mobile device*.

* CZ-TACG1 WLAN Adaptor required per unit. Requires an Internet connection and the App downloaded from the App Store or GooglePlay Store on your smartphone or tablet with the latest Operating System available.
*Functionality may vary depending on models.

Intuitive Voice Control

Introducing intuitive voice control with Google Assistant and Amazon Alexa control compatibility*. Using your existing Google assistant or Alexa devices, control your air conditioner with just your voice.

* CZ-TACG1 or CZ-CAPWFC1 WLAN Adaptor required per unit. Requires an Internet connection and the App downloaded from the App Store or GooglePlay Store on your smartphone or tablet with the latest Operating System available.
*To use Amazon Alexa to control your air conditioner, you will need an Amazon Echo device.
*To use Google Assistant to control your air conditioner, you will need an Google Assistant device.
*Google is a trademark of Google LLC. Amazon, Alexa and all related logos are trademarks of Amazon.com,Inc. or its affiliates.
*Functionality may vary depending on models.

Click here to download the brochure of Panasonic Inverter Ultra Slim Ducted 3.5 kW CS-Z35UD3RAW / CU-Z35UBRA Bulkhead -R32

Panasonic Ultra Slim Ducted

Slim, discrete, and perfectly suited to bulkhead installations.

  • WLAN Control Possible (CZ-TACG1 is needed) • Market-leading Energy Efficiency
  • Only 200mm High
  • Rear or Bottom Return Air Options
  • Built-in Drain Pump
  • -15°C to +46°C Operating Range

Description

3.5 kw Cooling
4.0 kw Heating

Includes Wired Remote Controller
