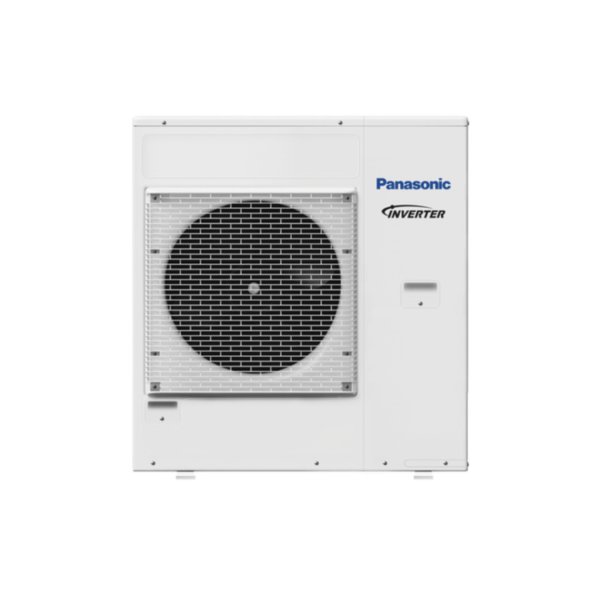

Panasonic CU-5Z100VBR 10.0kW Multi Split Outdoor Unit Only


Panasonic CU-5Z100VBR 10kW Multi Split Reverse Cycle System

Max Connectable 18.3kW

Max Connectable Heads: 5

Cooling (kW): 10.0
Heating (kW): 12.0
Outdoor Dimensions H x W x D (mm): 999 x 940 x 340
Power Supply (V/Ph/Hz): 240/1/50
Power Supply Connection: Outdoor
Max Amp: 21.3
Refrigerant Type: R32
Pipe Sizes (Liquid/Gas mm): 6.35/9.52
Min/Max Pipe Run (m): 3/80
Pre-Charged Run (m): 45
Add Ref Charge (g/m) 20
Max Elevation – OU Higher/Lower than IU (m): 15
Weight Outdoor (kg) 81

View the brochure of Panasonic Multi Split System Air Conditioners


10.0 kW Cooling
12.0 kW Heating

Max Indoor Connectable 18.3kW
