Capacity | 6.8kW | |||
Model Name | Indoor Unit | S-6071PT3E | ||
Outdoor Unit | U-71PZ3R5 | |||
Cooling capacity : Heating capacity |
kW | 6.8 (2.6 – 7.7)
6.8 (2.1 – 8.1) |
||
BTU/h | 23,200 (8,900 – 26,300)
23,200 (7,200 – 27,600) |
|||
EER : COP W/W | 3.33 : 4.22 | |||
COP@H2 condition W/W | 3.24 | |||
Total power input Cooling : Heating kW | 2.04 : 1.61 | |||
TCSPF : HSPF |
Residential |
Hot Climate | 5.02 : 5.60 | |
Average Climate | 4.45 : 4.76 | |||
Cold Climate | 4.60 : 4.09 | |||
Commercial |
Hot Climate | 5.57 : 5.63 | ||
Average Climate | 5.69 : 5.14 | |||
Cold Climate | 6.18 : 4.53 | |||
Indoor Unit | ||||
Power source | Phase/Hz | 1 Phase / 50Hz | ||
V | 230V | 240V | |||
Dimension H x W x D Indoor mm | 235 X 1,275 X 690 | |||
Net weight Indoor kg | 34 | |||
Air volume (H/M/L) Cooling : Heating L/s | 350 / 300 / 258 : 350 / 300 / 258 | |||
Sound pressure level (H/M/L) Cooling : Heating dB(A) | 39 / 35 / 30 : 39 / 35 / 30 | |||
Sound power level (H/M/L) Cooling : Heating dB | 57 / 53 / 48 : 57 / 53 / 48 | |||
Number of fan speeds | 5 | |||
Drain piping mm | VP-20 | |||
Outdoor Unit | ||||
Power source | Phase/Hz | 1 Phase / 50Hz | ||
V | 230V | 240V | |||
Current (rated) Cooling : Heating A | 9.45 : 7.15 | 9.05 : 6.85 | |||
Dimension H × W × D mm | 695 x 875 x 320 | |||
Net weight kg | 50 | |||
Air volume Cooling : Heating L/s | 746 : 766 | |||
Sound pressure level (Silent mode) Cooling : Heating dB(A) | 49 (47) : 49 (47) | |||
Sound power level (Silent mode) Cooling : Heating dB | 67 (65) : 67 (65) | |||
Piping connections Liquid / Gas mm | Ø6.35 / Ø15.88*2 | |||
Pipe length range min. – max. m | 3 – 40 | |||
Elevation difference (OU located lower, OU located higher) m | 15, 30 | |||
Maximum chargeless length m | 30 | |||
Refrigerant at shipping / Additional gas amount g | R32 1,320 / 17 (g/m) | |||
Operating range Cooling : Heating ˚C | -10 to 46 : -15 to 24 |

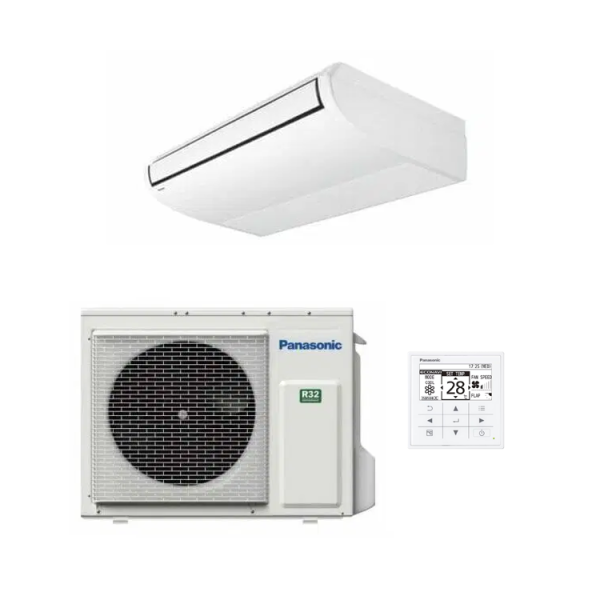

Panasonic 7.1kW S-6071PT3E / U-71PZ3R5 Under Ceiling System Single Phase | Compact
Panasonic 6.8kW S-6071PT3E / U-71PZ3R5 Under Ceiling System Single Phase | Compact | NanoeX
CZ-RTC5B WIRED CONTROLLER INCLUDED
Description
6.8 kW Cooling
6.8 kW Heating
R32 Compact | NanoeX
