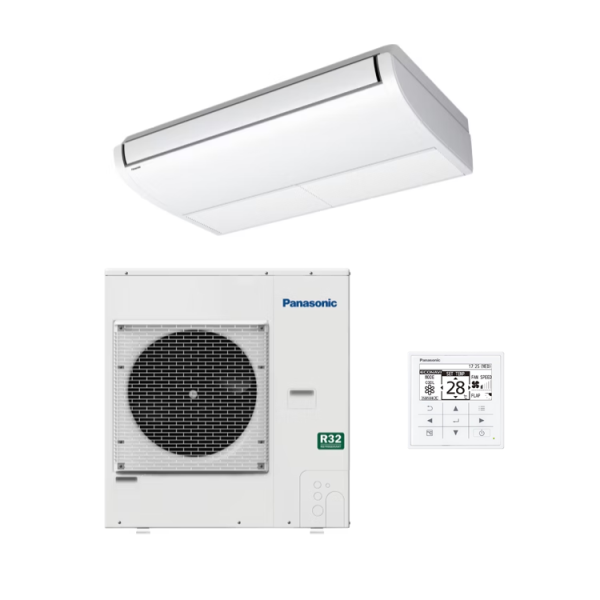

Panasonic 13.6kW S-1014PT3E / U-140PZ3R8 Under Ceiling System Three Phase | Compact

SKU: S-1014PT3E / U-140PZ3R8 / CZ-RTC5B

Panasonic 13.6kW S-1014PT3E / U-140PZ3R8 Under Ceiling System Three Phase | Compact | NanoeX

CZ-RTC5B WIRED CONTROLLER INCLUDED



Capacity 13.6kW
Model Name Indoor Unit S-1014PT3E
Outdoor Unit U-140PZ3R8


Cooling capacity : Heating capacity

kW 13.6 (3.3 – 15.0)

14.0 (3.4 – 16.0)

BTU/h 46,400 (11,300 – 51,200)

47,800 (11,600 – 54,600)

EER : COP                                                                                           W/W 3.15 : 3.70
COP@H2 condition                                                                            W/W 2.53
Total power input                                       Cooling : Heating  kW 4.32 : 3.78




TCSPF : HSPF



Residential

Hot Climate 4.81 : 5.25
Average Climate 4.33 : 4.25
Cold Climate 4.48 : 3.55


Commercial

Hot Climate 5.35 : 5.39
Average Climate 5.67 : 4.80
Cold Climate 6.20 : 4.09
Indoor Unit
Power source Phase/Hz 1 Phase / 50Hz
V 230V | 240V
Dimension                      H x W x D            Indoor                             mm 235 X 1,590 X 690
Net weight                                                   Indoor                             kg 40
Air volume (H/M/L)                                     Cooling : Heating  L/s 584 / 484 / 417 : 584 / 484 / 417
Sound pressure level (H/M/L)                  Cooling : Heating  dB(A) 47 / 41 / 36 : 47 / 41 / 36
Sound power level (H/M/L)                      Cooling : Heating  dB 65 / 59 / 54 : 65 / 59 / 54
Number of fan speeds 5
Drain piping                                                                                         mm VP-20
Outdoor Unit
Power source Phase/Hz 3 Phase / 50Hz
V 400V | 415V
Current (rated)                                            Cooling : Heating  A 6.65 : 5.80 | 6.40 : 5.60
Dimension                                                   H × W × D                     mm 996 x 980 x 370
Net weight                                                                                           kg 87
Air volume                                                    Cooling : Heating  L/s 1,402 : 1,369
Sound pressure level (Silent mode)  Cooling : Heating  dB(A) 56 (54) : 56 (54)
Sound power level (Silent mode)            Cooling : Heating  dB 74 (72) : 74 (72)
Piping connections                                     Liquid / Gas                  mm Ø9.52 / Ø15.88
Pipe length range                                       min. – max.                    m 5 – 50
Elevation difference (OU located lower, OU located higher) m 15, 30
Maximum chargeless length                                                           m 30
Refrigerant at shipping / Additional gas amount                          g R32 2,800 / 45 (g/m)
Operating range                                         Cooling : Heating  ˚C -10 to 46 : -15 to 24

View the brochure of Panasonic Under Ceiling Air Conditioner System | Compact Model

Description

13.6 kW Cooling
14.0 kW Heating

R32 Compact | NanoeX
