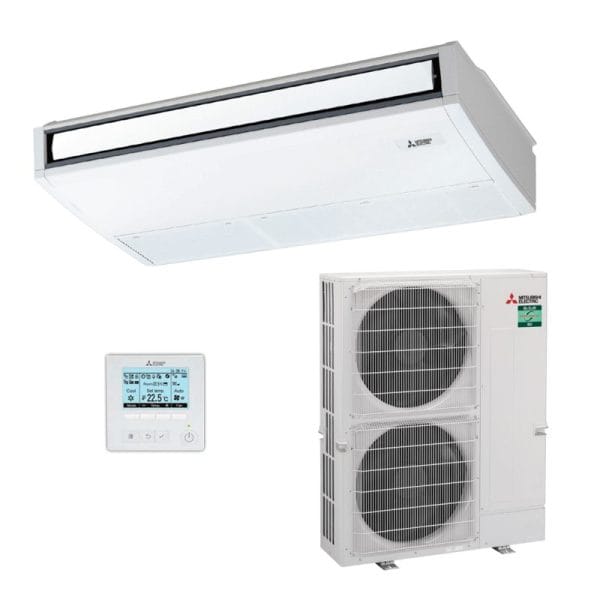

MITSUBISHI ELECTRIC PCA-M125KA / PUZ-ZM125VKA-A.TH 12.5kW Under Ceiling System Single Phase / Backlit Controller
MITSUBISHI ELECTRIC PCA-M125KA / PUZ-ZM125VKA-A.TH 12.5kW Under Ceiling System Single Phase / Backlit Controller
| Unit | PKA-M125KAL | |||
| Indoor Unit | PKA-M125KAL | |||
| Outdoor Unit | PUZ-ZM125VKA | |||
| Cooling | Capacity | Rated | kW | 12.5 |
| Min – Max | kW | 5.5 – 14.0 | ||
| Total Input | kW | 3.77 | ||
| Running current | A | 17.12 | ||
| AEER/EER | Rated Conditions | 3.22/3.31 | ||
| Air Flow | Low – Mid – Hi | L/s | 383 – 417 – 450 – 483 | |
| Sound Pressure Levels | Indoor (Lo-Mid-Hi) | dBA | 39 – 41 – 43 – 45 | |
| Outdoor | dBA | 50 | ||
| Heating | Capacity | Rated | kW | 14.0 |
| Min – Max | kW | 5.0 – 16.0 | ||
| Total Input | kW | 4.22 | ||
| Running Current | A | 19.46 | ||
| ACOP/COP | Rated Conditions | 3.23 / 3.31 | ||
| Air Flow | Low – Mid – Hi | L/s | 383 – 417 – 450 – 483 | |
| Sound Pressure Levels | Indoor (Lo-Mid-Hi) | dBA | 39 – 41 – 43 – 45 | |
| Outdoor | dBA | 52 | ||
| Dimensions | Indoor | HxWxD | mm | 230 x 1600 x 680 |
| Outdoor | HxWxD | mm | 1338 x 1050 x 330 | |
| Weight | Indoor | kg | 38 | |
| Outdoor | kg | 113 | ||
| Electrical Supply | V / Ph / Hz | 230 / 1 / 50 | ||
| Breaker Size | A | 32 | ||
| Piping | Maximum Length | m | 75 | |
| Maximum Height | m | 30 | ||
| Guaranteed Operating Range | Cooling | °C | -5(-15) to 52 | |
| Heating | °C | -20 to 21 | ||
Description
12.5 kW Cooling
14.0 kW Heating
Power Inverter | R32
