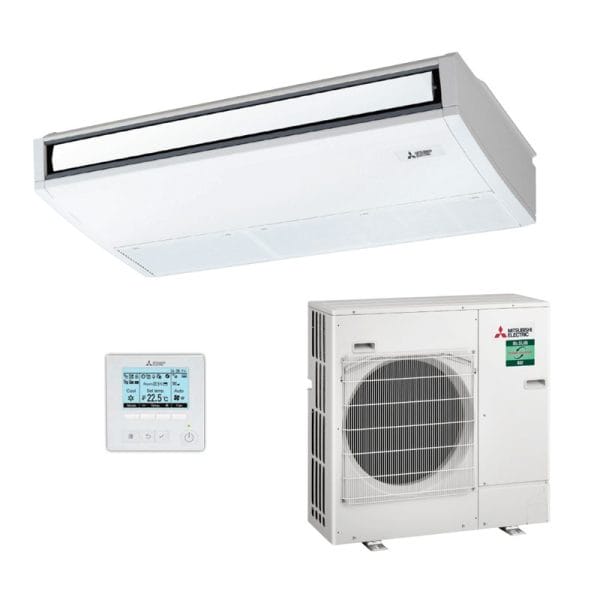

MITSUBISHI ELECTRIC PCA-M71KA / PUZ-ZM71VHA-AR1 7.1kW Under Ceiling System | Single Phase / Backlit Controller
7.1kW Cool – 8.0kW Heat / Indoor PCA-M71KA – Outdoor PUZ-ZM71VHA-AR1 Single Phase. Power inverter R32 . PAR-40MAA Backlit Controller
| Kit | PCA-M71KAKIT-R32 | |||
| Indoor Unit | PCA-M71KA | |||
| Outdoor Unit | PUZ-ZM71VHA | |||
| Cooling | Capacity | Rated | kW | 7.1 |
| Min – Max | kW | 3.3 – 8.1 | ||
| Total Input | kW | 1.82 | ||
| Running current | A | 8.30 | ||
| AEER/EER | Rated Conditions | 3.69/3.90 | ||
| Air Flow | Lo – Mid2 – Mid1 – Hi | L/s | 267 – 283 – 300 – 333 | |
| Sound Pressure Levels | Indoor (Lo – Mid2 – Mid1 – Hi) | dBA | 35 – 37 – 39 – 41 | |
| Outdoor | dBA | 47 | ||
| Heating | Capacity | Rated | kW | 8.0 |
| Min – Max | kW | 3.5 – 10.2 | ||
| Total Input | kW | 2.15 | ||
| Running Current | A | 10.06 | ||
| ACOP/COP | Rated Conditions | 3.55 / 3.72 | ||
| Air Flow | Lo – Mid2 – Mid1 – Hi | L/s | 267 – 283 – 300 – 333 | |
| Sound Pressure Levels | Indoor (Lo – Mid2 – Mid1 -Hi) | dBA | 35 – 37 – 39 – 41 | |
| Outdoor | dBA | 51 | ||
| Dimensions | Indoor | HxWxD | mm | 230 x 1280 x 680 |
| Outdoor | HxWxD | mm | 943 x 950 x 330 | |
| Weight | Indoor | kg | 32 | |
| Outdoor | kg | 70 | ||
| Electrical Supply | V / Ph / Hz | 230 / 1 / 50 | ||
| Breaker Size | A | 25 | ||
| Piping | Diameter | Gas | mm | ø15.88 |
| Liquid | mm | ø9.52 | ||
| Maximum Length | m | 30 | ||
| Maximum Height | m | 30 | ||
| Guaranteed Operating Range | Cooling | °C | -15 to 52 | |
| Heating | °C | -15 to 24 | ||
Description
7.1 kW Cooling
8.0 kW Heating
Power Inverter | R32
