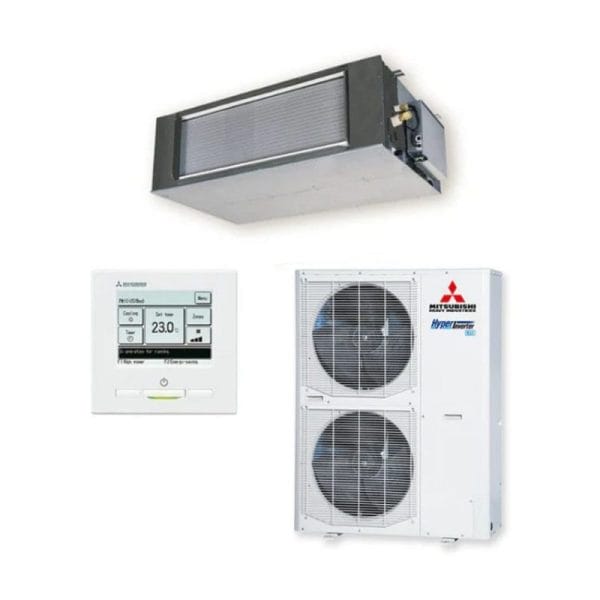

Mitsubishi Heavy Industries FDUA125AVSXWVH 12.5kW High Static Ducted System | 3 Phase

SKU: FDUA125AVSXWVH / RC-EXZ3A

Mitsubishi Heavy Industries FDUA125AVSXWVH 12.5kW High Static Ducted System | 3 Phase

Indoor: FDUA125VH | Outdoor: FDCA125VSX-W

Backlit Controller: RC-EXZ3A

Refrigerant R32 Weight: 4kg

Precharged: 30m

Max Pip length: 100m



$4,599.00

> > > > Compare
CAPACITY 12.5KW
Set FDUA125AVSXWVH
Indoor FDUA125VH
Outdoor FDCA125VSX-W
Power Source (Outdoor Unit) 3 Phase 380-415V 50Hz


















*Operation Data



Nominal Capacity Range

Cooling T1





kW

12.5 (5.0-14.0)
Heating H1 14.0 (4.0-18.0)
Heating H2 14.20


Power Consumption

Cooling T1 3.83
Heating H1 3.68
Max Power Consumption 7.66


Running Current

Cooling T1

A

6.4
Heating H1 6.2
Inrush Current, Maximum Current 5, 18
EER Cooling T1 3.26
COP Heating H1 3.80
Sound Power Level (JS C9612) Outdoor



dB(A)

70
Sound Pressure Level (JS C9612) Indoor P-Hi:46 Hi:44 Me:42 Lo:38
Outdoor 54


External Dimensions (HXWXD)

Indoor

mm

398x1150x650
Outdoor 1300x970x370


Net Weight

Indoor

Kg

52
Outdoor 99
Supply Air Connection

mm

348×898
Return Air Connection 348×898
External Static Pressure (Max) Pa 200
Airflow Indoor (Cooling) l/s P-Hi:717 Hi:650

Me:600 Lo:500

Indoor (Heating)


Refrigerant (Type, Amount, Pre-charge Length)

Quantity kg (R32) 4.0
Pre Charged To Pipe

Length

m 30






Installation Data



Refrigerant Piping

Liquid Line

mm

Ø9.52
Gas Line Ø15.88
Connection Method Flare connection
Maximum Pipe Length (One Way)

m

100
Max vertical height diff. between O.U. and I.U. 30 ( O.U. above I.U. ) / 15 ( O.U. below I.U. )
Controller RC-E5, RC-EXZ3A, RCH-E3 or RCN-KIT4-E2
Safety Pan (Optional) UA-SP2-E
Motion Sensor (Optional) LB-KIT2
Demand response (AS4755) Yes
Outdoor air temperature (upper, lower limits) Cooling

oC

-15 to 50
Heating -20 to 20

■ R32 REFRIGERANT
■ LIGHTER, MORE COMPACT OUTDOOR UNIT
■ EXTERNAL PIPE CONNECTION FOR EASE OF ACCESS
■ QUIETER OPERATION
■ DUCTED UNITS COMPATIBLE WITH FLEXIZONE

View the brochure of Mitsubishi Heavy Industries Ducted System

Description

12.5 kW Cooling
14.0 kW Heating

R32 | RC-EXZ3A Backlit Controller
max pipe length 100 mtrs
