CAPACITY | 10.0 KW | |||
Set | FDU100AVNAWVH | |||
Indoor | FDU100VH | |||
Outdoor | FDCA100VNA-W | |||
Power Source (Outdoor Unit) | 1 Phase 240V 50Hz | |||
*Operation Data |
Nominal Capacity Range |
Cooling T1 |
kW |
10.0 (4.0-11.2) |
Heating H1 | 11.2 (4.0-12.5) | |||
Heating H2 | 10.00 | |||
Power Consumption |
Cooling T1 | 2.99 | ||
Heating H1 | 2.66 | |||
Max Power Consumption | 6.40 | |||
Running Current |
Cooling T1 |
A |
14.3 | |
Heating H1 | 12.7 | |||
Inrush Current, Maximum Current | 5, 26 | |||
EER | Cooling T1 | 3.35 | ||
COP | Heating H1 | 4.21 | ||
Sound Power Level (JS C9612) | Outdoor |
dB(A) |
70 | |
Sound Pressure Level (JS C9612) | Indoor | P-Hi:44 Hi:38 Me:36 Lo:30 | ||
Outdoor | 55 | |||
External Dimensions (HXWXD) |
Indoor |
mm |
280×1370×740 | |
Outdoor | 845x970x370 | |||
Net Weight |
Indoor |
Kg |
54 | |
Outdoor | 77 | |||
Supply Air Connection |
mm |
170×1200 | ||
Return Air Connection | 235×1280 | |||
External Static Pressure (Max) | Pa | 200 | ||
Airflow | Indoor (Cooling) | l/s | P-Hi: 600 Hi:467 Me:417 Lo:317 | |
Indoor (Heating) | ||||
Refrigerant (Type, Amount, Pre-charge Length) |
Quantity | kg | (R32) 3.3 | |
Pre Charged To Pipe
Length |
m | 30 | ||
Installation Data |
Refrigerant Piping |
Liquid Line |
mm |
Ø9.52 |
Gas Line | Ø15.88 | |||
Connection Method | Flare Connection | |||
Maximum Pipe Length (One Way) |
m |
50 | ||
Max vertical height diff. between O.U. and I.U. |
50 ( O.U. above I.U. ) / 15 ( O.U. below I.U. ) |
|||
Controller | RC-E5, RC-EXZ3A, RCH-E3 or RCN-KIT4-E2 | |||
Motion Sensor (Optional) | LB-KIT2 | |||
Demand response (AS4755) | Yes | |||
Outdoor air temperature (upper, lower limits) | Cooling |
oC |
-15 to 50 | |
Heating | -20 to 20 |

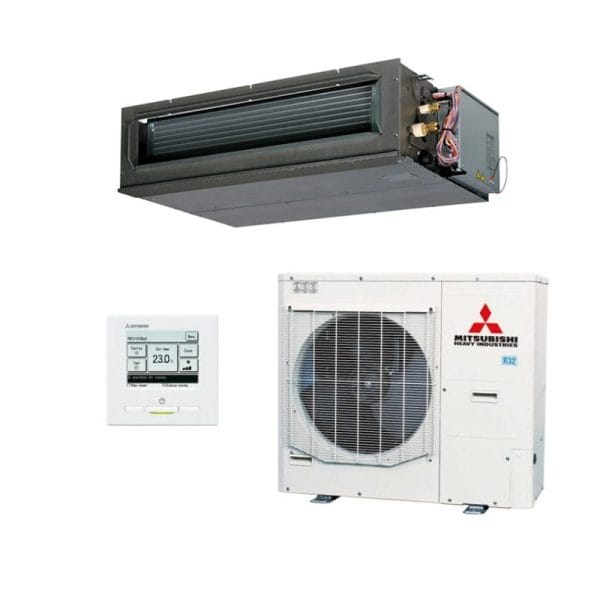

Mitsubishi Heavy Industries FDU100AVNAWVH 10kW Ducted System Single Phase
Mitsubishi Heavy Industries FDU100AVNAWVH 10kW Ducted System | Single Phase
Indoor: FDU100VH
Outdoor: FDCA100VNA-W
Backlit Controller: RC-EXZ3A
Refrigerant R32 Weight: 3.3kg
Precharged: 15m
Max Pipe Length: 50m
■ R32 REFRIGERANT
■ LIGHTER, MORE COMPACT OUTDOOR UNIT
■ EXTERNAL PIPE CONNECTION FOR EASE OF ACCESS
■ QUIETER OPERATION
■ DUCTED UNITS COMPATIBLE WITH FLEXIZONE
INCREASED ENERGY EFFICIENCY
SPLITTABLE INDOOR UNIT
QUIET OPERATION
BUILT-IN DRAIN PUMP
View the brochure of Mitsubishi Heavy Industries Ducted System
Description
10.0 kW Cooling
11.2 kW Heating
R32 | RC-EXZ3A Backlit Controller
