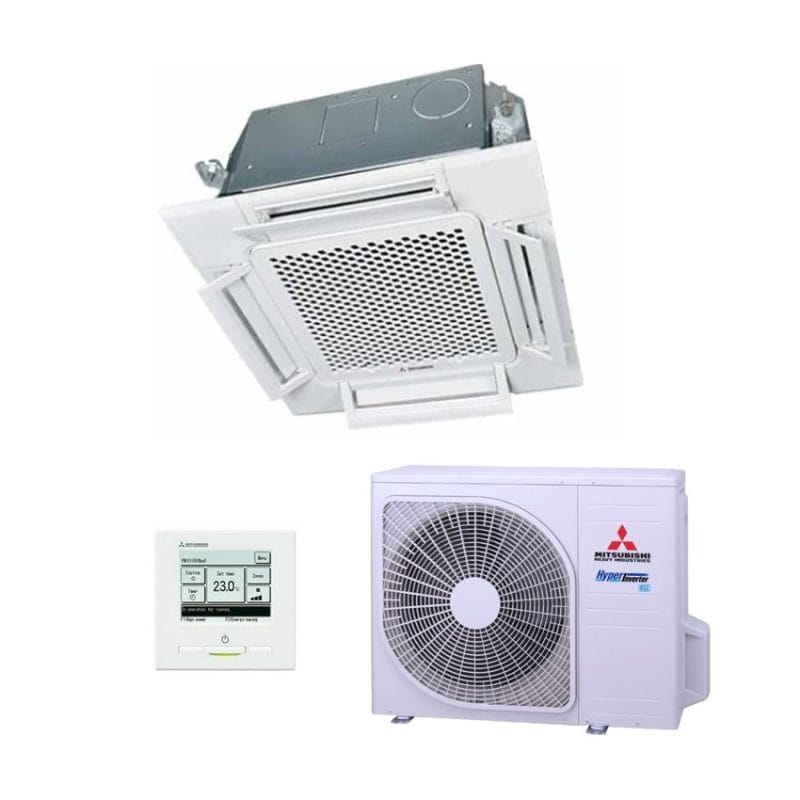

Mitsubishi Heavy Industries FDTC60ZSXAWVH 5.6kW Four Way Compact Cassette Air Conditioner
5.6 kW Cooling | 6.7 kW Heating
Mitsubishi Heavy Industries FDTC60ZSXAWVH 5.6kW Four Way Compact Cassette Air Conditioner
Includes Indoor FDTC60VH | Outdoor SRC60ZSXA-W
Panel TC-PSAE-5AW-E (Honeycomb) or TC-PSAGE-5AW-E (Grid)
Includes RC-EXZ3A Wired Controller | 600mm Built-In Drain Pump | 600mm Built-In Drain Pump
5 Years Manufacturer’s Warranty | Max Pipe length: 30m
| CAPACITY | 5.6kW | |||
| Set | FDTC60ZSXAWVH | |||
| Indoor | FDTC60VH | |||
| Outdoor | SRC60ZSXA-W | |||
| Power Source (Outdoor Unit) | 1 Phase 240V 50Hz | |||
|
*Operation Data
|
Nominal Capacity (Range)
|
Cooling T1 |
kW
|
5.6 (1.1-6.3) |
| Heating H1 | 6.7 (0.6-6.7) | |||
| Heating H2 | 5.8 | |||
|
Power Consumption
|
Cooling T1 | 1.73 | ||
| Heating H1 | 2.14 | |||
| Maximum Power Consumption | 2.9 | |||
|
Running Current
|
Cooling T1 |
A
|
7.6 | |
| Heating H1 | 9.4 | |||
| Inrush Current, Maximum Current | 5, 15 | |||
| EER | Cooling T1 | 3.23 | ||
| COP | Heating H1 | 3.13 | ||
| Sound Power Level (JIS C9612) | Outdoor |
dB(A)
|
65 | |
|
Sound Pressure Level (JIS C9612)
|
Indoor | P-Hi:46 Hi:42 Me:38 Lo:31 | ||
| Outdoor | 53 | |||
|
External dimensions (HXWXD)
|
Indoor |
mm
|
248x570x570 | |
| Panel | 10X620X620 TC-PSAE-5AW-E (Honeycomb) / TC-PSAGE-5AW-E (Grid) | |||
| Outdoor | 640×800(+71)x290 | |||
|
Net weight
|
Indoor |
kg
|
Unit 14 Panel 2.5 | |
| Outdoor | 45 | |||
|
Airflow
|
Cooling (Indoor) |
l/s
|
P-Hi: 233 Hi: 200 Me: 167 Lo: 133
|
|
| Heating (Indoor) | ||||
|
Installation Data
|
Refrigerant (R32)
|
Quantity | kg | 1.3 |
| Pre-Charged to Pipe | m | 15 | ||
|
Refrigerant Piping
|
Liquid Line |
mm
|
Ø6.35 | |
| Gas Line | Ø12.7 | |||
| Connection Method | Flare Connection | |||
| Maximum Pipe Length (One Way) |
m
|
30 | ||
| Max Vertical Height Diff. Between O.U. and I.U. | 20 ( O.U. above I.U. ) / 20 ( O.U. below I.U. ) | |||
| Controller | RC-E5, RC-EXZ3A, RCH-E3 or RCN-TC-5AW-E2 / RCN-TC-5AW-E3 (Fine Snow) | |||
| Motion Sensor (Optional) | LB-TC-5W-E | |||
| Demand Response (AS4755) | Yes | |||
|
Outdoor air temperature (upper, lower limits)
|
Cooling |
oC
|
-15 to 46 | |
| Heating | -20 to 20 | |||
With a compact design, quiet operation and Draught Control Technology, the FDTC series of compact ceiling cassettes offer the perfect solution for a range of commercial applications. At only 258mm high, the FDTC series is one of the most compact ceiling cassettes on the market, allowing for easy installation in spaces with minimal roof space. Optional motion sensor offers an energy saving solution by monitoring activity in the room and automatically switching to energy-saving mode at times of low activity. Fascia panel available in both honeycomb and grid design – see brochure for more info.
POWER: Single Phase | AVAILABLE IN: Reverse Cycle
CAPACITIES: 2.5kW | 3.5kW | 5.0kW | 5.6kW
Key features
- Compact design
- DRAUGHT CONTROL TECHNOLOGY TO DELIVER EFFICIENT AIRFLOW AND PREVENT DRAUGHTS
- VARIOUS TIMER FUNCTIONS FOR CONVENIENCE
- OPTIONAL MOTION SENSOR FOR INCREASED ENERGY SAVING
- 600mm built-in drain pump
Mitsubishi Heavy Industries FDTC60ZSXAWVH 6.0kW Four Way Compact Cassette Air Conditioner – Brochure
Description
5.6 kW Cooling
6.7 kW Heating
Compact Cassette | High Power Operation
