Mitsubishi Heavy Industries FDTC35ZSAVH1 3.5kW Four Way Compact Ceiling Cassette | RC-EXZ3A Wired Controller

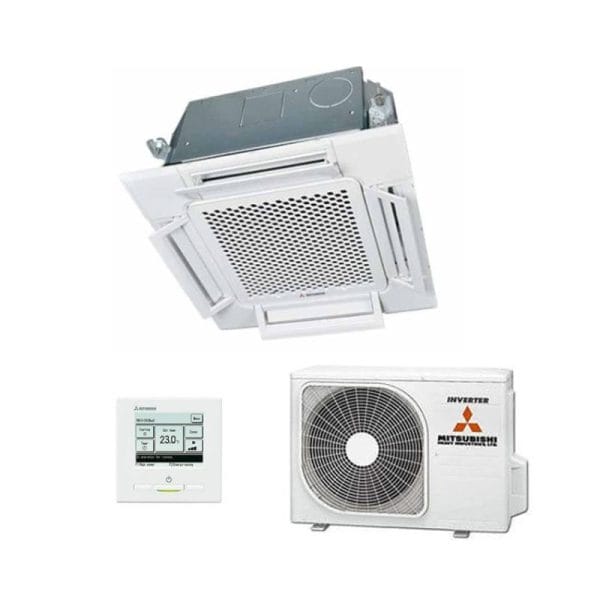

Mitsubishi Heavy Industries FDTC35ZSAVH1 3.5kW Four Way Compact Ceiling Cassette
Indoor: FDTC35VH1
Outdoor: SRC35ZSA-W
Controller: RC-EXZ3A
Panel: TC-PSAE-5AW-E
| CAPACITY | 3.5kW | |||
| Set | FDTC35ZSAVH1 | |||
| Indoor | FDTC35VH1 | |||
| Outdoor | SRC35ZSA-W | |||
| Power Source (Outdoor Unit) | 1 Phase 240V 50Hz | |||
|
*Operation Data |
Nominal Capacity (Range) |
Cooling T1 |
kW |
3.5 (0.9-4.3) |
| Heating H1 | 4.25 (0.9-4.6) | |||
| Heating H2 | 3.95 | |||
| Power Consumption | Cooling T1 | 0.91 (0.18-1.37) | ||
| Heating H1 | 1.08 (0.19 -1.33) | |||
| Maximum Power Consumption | 1.65 | |||
| Running Current | Cooling T1 |
A |
4.1 | |
| Heating H1 | 4.8 | |||
| Inrush Current, Maximum Current | 4.8, 9 | |||
| EER | Cooling T1 | 3.85 | ||
| COP | Heating H1 | 3.94 | ||
| Sound Power Level (JIS C9612) | Outdoor |
dB(A) |
62 | |
|
Sound Pressure Level (JIS C9612) |
Indoor | P-Hi:39 Hi:36 Me:32 Lo:29 | ||
| Outdoor | 50 | |||
|
External dimensions (HXWXD) |
Indoor |
mm |
248x570x570 | |
| Panel | 10X620X620 TC-PSAE-5AW-E (Honeycomb) / TC-PSAGE-5AW-E (Grid) | |||
| Outdoor | 540×780(+62)x290 | |||
| Net weight | Indoor | kg | Unit 14 Panel 2.5 | |
| Outdoor | 34.5 | |||
| Airflow | Cooling (Indoor) | l/s | P-Hi: 150 Hi: 133 Me: 125 Lo: 108 | |
| Heating (Indoor) | P-Hi: 183 Hi: 150 Me: 133 Lo: 117 | |||
|
Installation Data |
Refrigerant (R32) | Quantity | kg | 0.78 |
| Pre-Charged to Pipe | m | 15 | ||
| Refrigerant Piping | Liquid Line | mm | Ø6.35 | |
| Gas Line | Ø9.52 | |||
| Connection Method | Flare Connection | |||
| Maximum Pipe Length (One Way) | m | 20 | ||
| Max Vertical Height Diff. Between O.U. and I.U. | 10 ( O.U. above I.U. ) / 10 ( O.U. below I.U. ) | |||
| Controller | RC-E5, RC-EXZ3A, RCH-E3 or RCN-TC-5AW-E2 / RCN-TC-5AW-E3 (Fine Snow) | |||
| Motion Sensor (Optional) | LB-TC-5W-E | |||
| Demand Response (AS4755) | Yes | |||
| Outdoor air temperature (upper, lower limits) | Cooling | oC | -15 to 46 | |
| Heating | -15 to 24 | |||
Description
3.5 kW Cooling
4.2 kW Heating
Compact Cassette | R32
