CAPACITY | 2.5kW | |||
Set | FDTC25ZSAVH1 | |||
Indoor | FDTC25VH1 | |||
Outdoor | SRC25ZSA-W | |||
Power Source (Outdoor Unit) | 1 Phase 240V 50Hz | |||
*Operation Data |
Nominal Capacity (Range) |
Cooling T1 |
kW |
2.5 (0.9-3.5) |
Heating H1 | 3.4 (0.9-4.6) | |||
Heating H2 | 3.45 | |||
Power Consumption | Cooling T1 | 0.54 (0.18-0.89) | ||
Heating H1 | 0.77 (0.18-1.36) | |||
Maximum Power Consumption | 1.65 | |||
Running Current | Cooling T1 |
A |
2.7 | |
Heating H1 | 3.6 | |||
Inrush Current, Maximum Current | 3.6, 9 | |||
EER | Cooling T1 | 4.63 | ||
COP | Heating H1 | 4.42 | ||
Sound Power Level (JIS C9612) | Outdoor |
dB(A) |
59 | |
Sound Pressure Level (JIS C9612) |
Indoor | P-Hi:38 Hi:34 Me:30 Lo:27 | ||
Outdoor | 47 | |||
External dimensions (HXWXD) |
Indoor |
mm |
248x570x570 | |
Panel | 10X620X620 TC-PSAE-5AW-E (Honeycomb) / TC-PSAGE-5AW-E (Grid) | |||
Outdoor | 540×780(+62)x290 | |||
Net weight | Indoor | kg | Unit 14 Panel 2.5 | |
Outdoor | 34.5 | |||
Airflow | Cooling (Indoor) | l/s | P-Hi: 142Hi: 125 Me: 117 Lo: 100 | |
Heating (Indoor) | P-Hi: 175 Hi: 142 Me: 125 Lo: 108 | |||
Installation Data |
Refrigerant (R32) | Quantity | kg | 0.78 |
Pre-Charged to Pipe | m | 15 | ||
Refrigerant Piping | Liquid Line | mm | Ø6.35 | |
Gas Line | Ø9.52 | |||
Connection Method | Flare Connection | |||
Maximum Pipe Length (One Way) | m | 20 | ||
Max Vertical Height Diff. Between O.U. and I.U. | 10 ( O.U. above I.U. ) / 10 ( O.U. below I.U. ) | |||

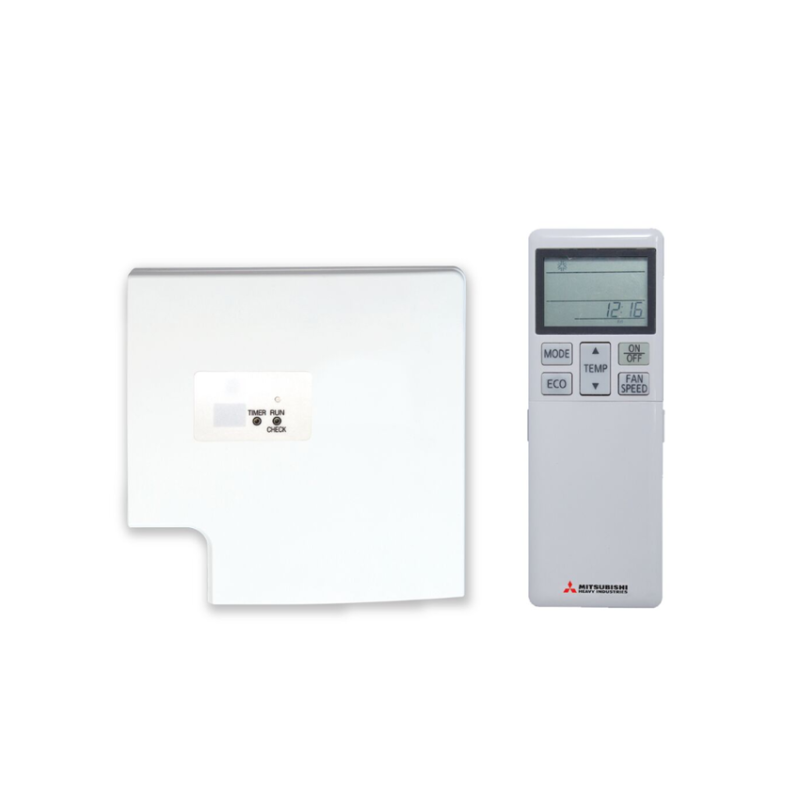

Controller | RC-E5, RC-EXZ3A, RCH-E3 or RCN-TC-5AW-E2 / RCN-TC-5AW-E3 (Fine Snow) | |||

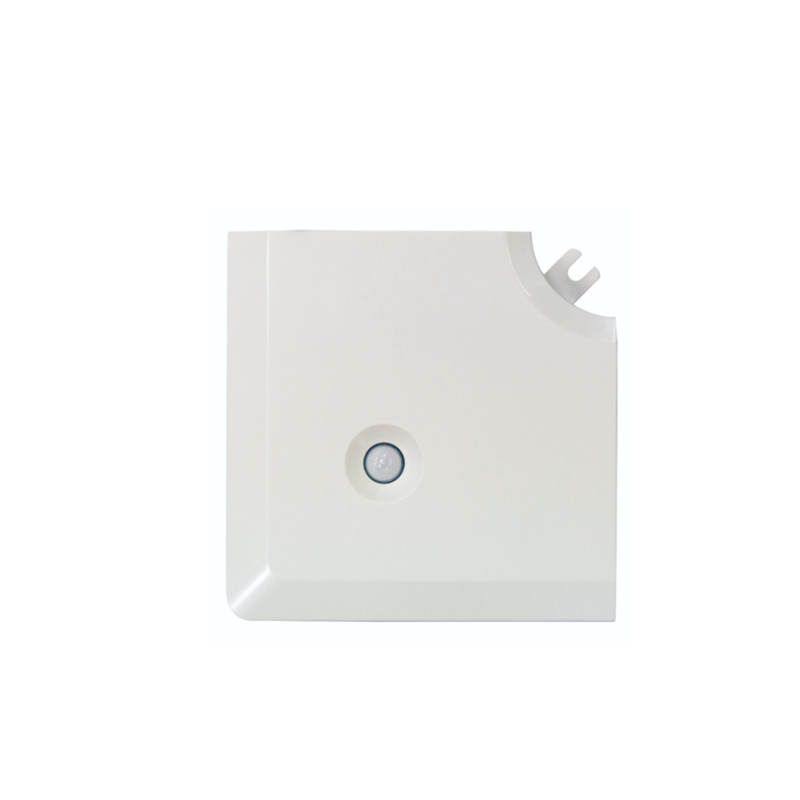

Motion Sensor (Optional) | LB-TC-5W-E | |||
Demand Response (AS4755) | Yes | |||
Outdoor air temperature (upper, lower limits) | Cooling | oC | -15 to 46 | |
Heating | -15 to 24 |
Mitsubishi Heavy Industries FDTC25ZSAVH1 2.5kW Four Way Compact Ceiling Cassette | RC-EXZ3A Wired Controller

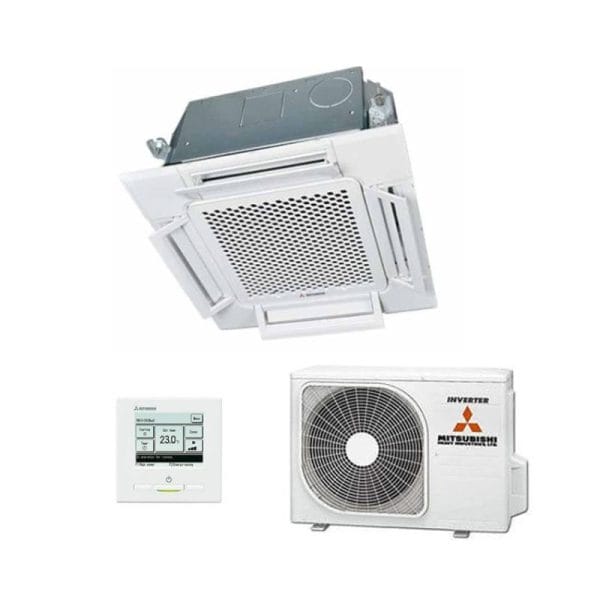

Mitsubishi Heavy Industries FDTC25ZSAVH1 2.5kW Four Way Compact Ceiling Cassette
Indoor: FDTC25VH1
Outdoor: SRC25ZSA-W
Controller: RC-EXZ3A
Panel: TC-PSAE-5AW-E
Description
2.5 kW Cooling
3.4 kW Heating
Compact Cassette | R32
