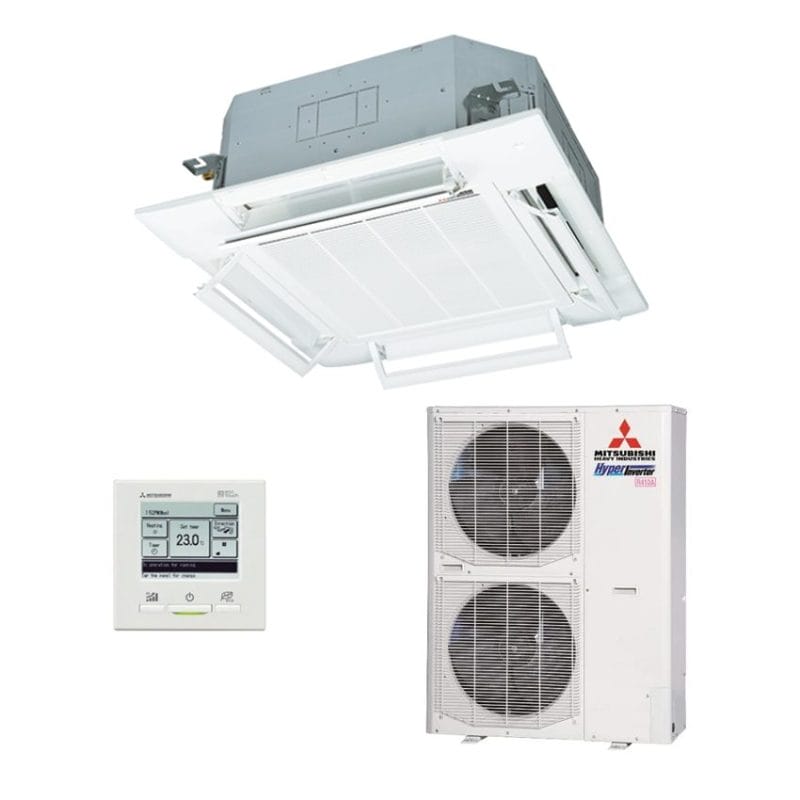

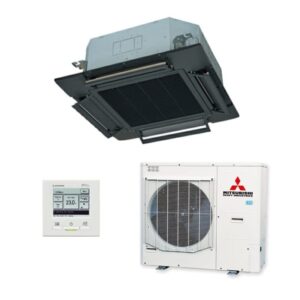

Mitsubishi Heavy Industries FDT100AVNAWVH 10kW Ceiling Cassette Single Phase | Wired Controller

SKU: FDT100AVNAWVH

Mitsubishi Heavy Industries FDT100AVNAWVH 10kW Ceiling Cassette Single Phase | Wired Controller

Refrigerant R32: 3.3 kg

Pre charged to pipe : 30 m
length

Maximum pipe length : 50 m


CAPACITY 10.0kW
Set FDT100VNPWVH
Indoor FDT100VH
Outdoor FDC100VNP-W
Power Source (Outdoor Unit)   1 Phase 240V 50Hz
















*Operation Data



Nominal Capacity (Range)

Cooling T1





kW

10 (2.1 -10.2)
Heating H1 10 (1.7 – 10.4)
Heating H2 7.60
Power Consumption Cooling T1 2.84
Heating H1 2.33
Maximum Power Consumption 4.46
Running Current Cooling T1



A

12.1
Heating H1 9.9
Inrush Current, Maximum Current 5,19
EER Cooling T1 3.52
COP Heating H1 4.29
Sound Power Level (JIS C9612) Outdoor



dB(A)

68


Sound Pressure Level (JIS C9612)

Indoor P-Hi: 47 Hi: 39

Me: 36 Lo: 30

Outdoor 56


External dimensions (HXWXD)

Indoor

mm

298x840x840
Panel 35x950x950 T-PSAE-5BW-E (Fine Snow) / T-PSAE-5BB-E (Shadow Black)
Outdoor 750 × 880(+88) × 340
Net weight Indoor kg Unit 25 Panel 5
Outdoor 57
Airflow Cooling (Indoor) l/s P-Hi:616 Hi:433 Me:383 Lo:283
Heating (Indoor)










Installation Data

Refrigerant (R32) Quantity kg 1.7
Pre-Charged to Pipe m 15
Refrigerant Piping Liquid Line mm **Ø6.35
Gas Line Ø15.88
Connection Method   Flare Connection
Maximum Pipe Length (One Way)



m

30


Max Vertical Height Diff. Between O.U. and I.U.



20 ( O.U. above I.U. ) /

20 ( O.U. below I.U. )

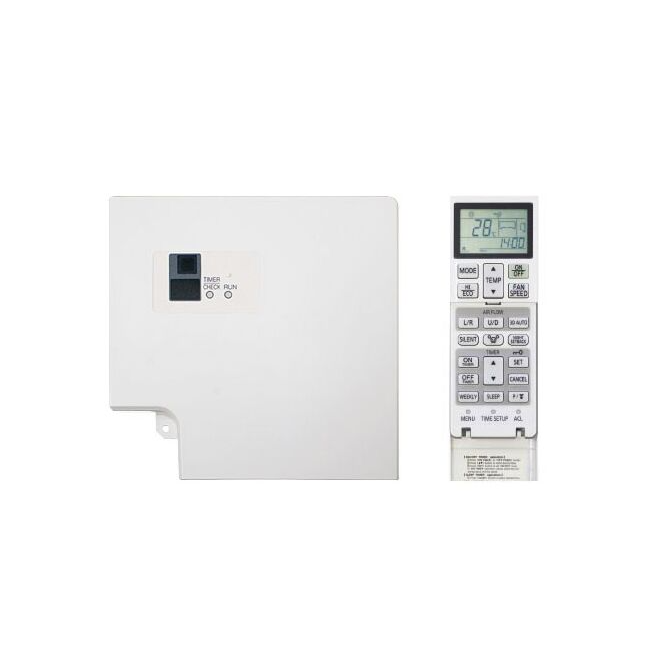

Controller RC-E5, RC-EXZ3A, RCH-E3 or RCN-T-5BW-E2 (Fine Snow) / RCN-T-5BB-E2 (Shadow Black)

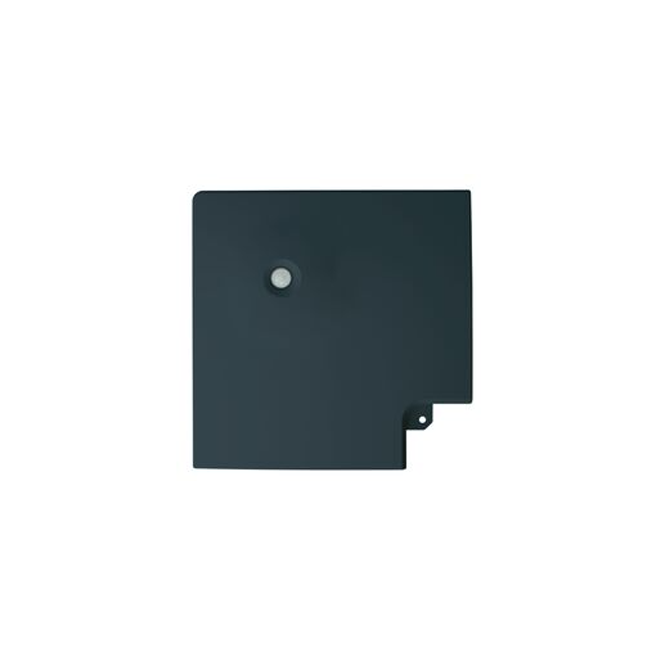

Motion Sensor (Optional) LB-T-5BW-E (Fine Snow) / LB-T-5BB-E (Shadow Black)
Demand Response (AS4755) No
Outdoor air temperature (upper, lower limits) Cooling oC -15 to 46
Heating -15 to 20

Description

10.0 kW Cooling
11.2 kW Heating

NEW Draught Control Technology

air conditioning enquiry
