PKA-M Series (Wall Mounted) | |||
Indoor Unit | PKA-M100KAL | ||
Outdoor Unit | PUZ-ZM100YKA2-A | ||
Refrigerant | R32 | ||
Power Supply (V, Phase, Hz) | V: 230V, Single-phase, 50Hz Y: 400V, Three-phase, 50Hz | ||
Capacity | kW | 4.90 – 10.00 – 11.40 | |
[Min-Rated*4-Max] | |||
Total Input [Rated]*4 | kW | 2.81 | |
AEER/EER | 3.37/3.55 | ||
Cooling | Running Current [Rated]*4 | A | 5.60 |
Sound In (Lo-Mid-Hi) Pressure
Level*2 Out (PWL) |
dB(A) |
41 – 45 – 49 | |
49 (69) | |||
Air Volume (In) Lo-Mid-Hi | L/S | 333 – 383 – 433 | |
Capacity | kW kW
A |
4.50 – 11.20 – 14.00 | |
[Min-Rated*5-Max] | |||
Total Input [Rated]*5 | 3.10 | ||
ACOP/COP | 3.44/3.61 | ||
Heating | Running Current [Rated]*5 | 5.60 | |
Sound In (Lo-Mid-Hi) Pressure
Level*2 Out (PWL) |
dB(A) |
41 – 45 – 49 | |
52 (70) | |||
Air Volume (In) Lo-Mid-Hi | L/S | 333 – 383 – 433 | |
Max. Running Current
Input [Rated] |
A | 12.07 | |
kW | 0.08 | ||
Indoor | Dimensions [HxWxD] | mm | 365 × 1170 × 295 |
Unit | |||
Weight | kg | 21.0 | |
Outdoor |
Dimensions [HxWxD] | mm | 1338 × 1050 × 330 (+40) |
Weight | kg | 114.0 | |
Unit | |||
Breaker Size | A | 16 | |
Ext. Diameter [Liquid/Gas] | mm | ø9.52/ø15.88 | |
Piping Max. Length/Height | m | 75/30 | |
Guaranteed Cooling*3 | °C | -5 (-15) ~ 52 | |
Operating Range
[Outdoor] Heating |
°C | -20 ~ 21 | |
Pre-Charge Refrigerant | kg | 4.0 (30m) | |
Additional Refrigerant | g/m | 40 |

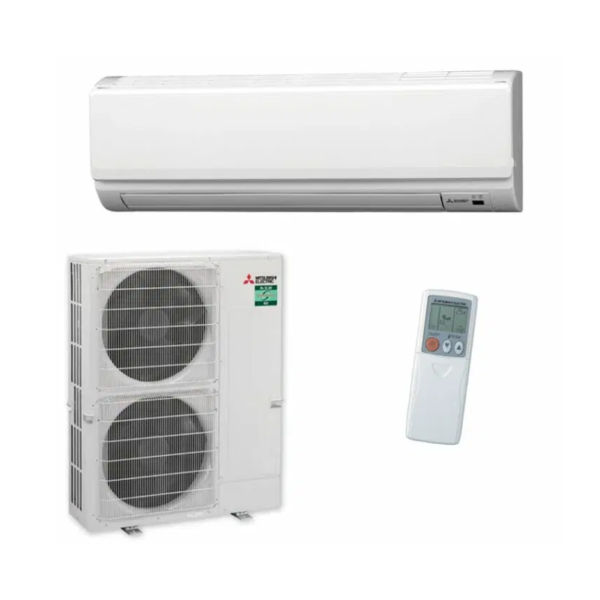

Mitsubishi Electric PKA-M100KAL.TH / PUZ-ZM100YKA-A2.TH 10.0kW Light Commercial High Wall Split System 3 Phase
Indoor : PKA-M100KAL.TH Outdoor : PUZ-ZM100YKA-A2.TH Three Phase R32 . Wireless Controller Included. 10.0kW Cooling and 11.2kW Heating.
Quick Clean Grille
The intake grille can easily slide out completely, allowing easy cleaning without any special tools and simply washed with water.
Next Generation R32 Technology
R32 is a refrigerant with just one-third the global warming potential of R410A and has zero ozone depletion potential. R32 offers increased energy efficiency, and is said to be the next generation of refrigerants
Auto-Vane Shutter
The vane closes automatticaly when the unit is not running, creatimng a sleek flat finish.
Deluxe PAR Weekly Controller Available (Optional)
Wired Remote Controller Available (Optional) A separately sold wired remote controller and terminal block are available to suit various installation sites. When connecting a wired remote controller the MAC-333IF-E interface is not required.
Suitable for Server Room Applications
The PKA Series provides an economical split system solution for high sensible application due to their larger coil size. As a result, they are ideal for server room and laboratoes where there is a need for sensible cooling.
Drain Pump Option
Installation of a drain pump enables a drain outlet as high as 800m above the base of the indoor unit. Drain water can be discharged easily, even if the surface where the unit is mounted does not have direct outside access; icreasing installation possibilities.
Description
10.0 kW Cooling
11.2 kW Heating
Suitable for Server Room Applications
