Indoor unit | PEA-M180LAA.TH | ||
---|---|---|---|
Outdoor unit | PUZ-ZM180VKA-A.TH | ||
Refrigerant | R32 | ||
Cooling | Capacity (Min-Rated*1-Max) | kW | 4.9-18.0-20.0 |
Air Volume (In) Lo-Mid-Mid2-Hi | L/S | 600-833-1017-1200 | |
Total Input (Rated)*1 | kW | 5.92 | |
Heating | Capacity (Min-Rated*1-Max) | kW | 5.4-20.0-22.4 |
Air Volume (In) Lo-Mid-Mid2-Hi | L/S | 600-833-1017-1200 | |
Total Input (Rated)*1 | kW | 5.10 | |
Indoor unit | Dimensions (HxWxD) | mm | 470x1370x1120 |
Weight | kg | 88 | |
Outdoor unit | Dimensions (HxWxD) | mm | 1338×1050×330(+40) |
Weight | kg | 115 | |
System Name PEAM180LAAVKIT |
MITSUBISHI ELECTRIC PEAM180LAAVKIT 18.0kW Ducted Air Conditioner System 1 Phase
18.0kW Cooling | 20.0kW Heating
MITSUBISHI ELECTRIC PEAM180LAAVKIT 18.0kW Ducted Air Conditioner System 1 Phase
Includes:
PEA-M180LAA.TH Indoor- 2 Piece Ducted
PUZ-ZM180VKA-A.TH.TH R32 Outdoor – Single Phase
Includes PAR-41MAAM Wired Control with Back Light

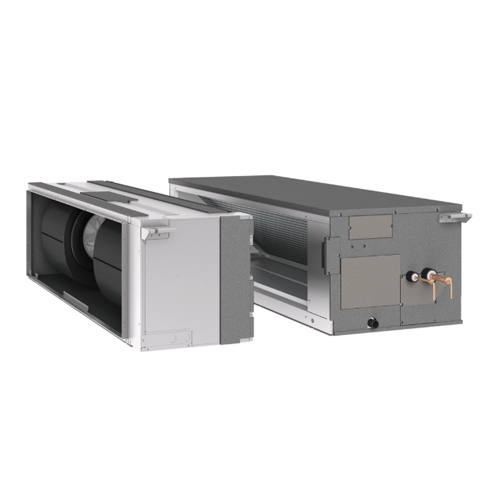

2 piece construction
This ducted fan coil has a two-piece construction, which allows for the separation of the indoor unit heat exchanger and the fan deck assembly. This is beneficial for installation into the roof space, for greater room capacities and increased variation in airflow; ensuring operation that suits most room layouts.
Ideal for remodelling of existing houses
The unit can be installed in roof trusses thanks to the two-piece structure.
Easier Installation
The fan deck section and the heat exchanger can be separately transported and assembled in the ceiling space. This feature requires an access panel large enough to pass each part through.
High external static pressure
The HAA Series incorporate three-stage external static pressure conversions and four fan speed selections, offering the ultimate in comfort solutions. HAA Series units are designed for human comfort and to be installed in a wide range of building types with broad static pressures requirements ranging from 50 to 150Pa. *Application dependent on site conditions.
Optional zone controller
Upgrading to an optional zone controller gives the option of up to 4 or 8 zones, to provide control to different rooms of the home. Zone Controller is compatible with the optional Wi-Fi Control interface and app.
Wi-Fi Control
Unlock the door to smarter heating and cooling systems, for total home comfort. This innovative technology connects your Mitsubishi Electric air conditioner to your smartphone, tablet or online account, giving you the freedom to fully control each unit on-the-go via an internet connection from anywhere in the world.
*1 Optional Wi-Fi adapter required per unit. Requires an internet connection and the Wi-Fi Control App downloaded on your smartphone or tablet with the latest operating system available.
*2 To use Amazon Alexa to control your air conditioner you will need an Amazon Alexa Echo device.
*3 To use Google Assistant to control your air conditioner you will need a Google Home Smart speaker.
Flexible ducting design
With the flexibility of ducted design and 150Pa external static high-pressure are incorporated. The increased variation in airflow options ensures operation that best matches virtually all room layouts.
R32 refrigerant
R32 enables increased energy efficiency compared to R410A, with just one third of the global warming potential, the risk of environmental harm is greatly reduced.
Click here to download the brochure of MITSUBISHI ELECTRIC PEAM180LAAVKIT 18.0kW Ducted Air Conditioner System 1 Phase
Mitsubishi Electric Ducted Air Conditioning
PEA-M-HAA Series
Range: PEA-M100-140HAA
Mitsubishi Electric is pleased to expand the connection line up of its Mr Slim INVERTER M Series. Now connectable to our range of HAA Series 2 piece construction ducted units, PLA cassettes and PCA under ceiling units in 10 and 12.5 kW models. Together with our range of GAA and low profile PEAD Series ducted units provides a flexible choice to suit most applications.
- Capacity Range: 10.0 kW – 14.0 kW
- High external static pressure
- 2 piece construction
- Flexibility in design
- Ideal for existing homes
- R32 refrigerant
Full Inverter Control
Mitsubishi Electric Inverters ensure a high level of performance, including the finer control of operation frequency. As a result, improved power management is applied in all heating/ cooling ranges, and maximum comfort is achieved while consuming less energy.
Compact Design & Less Intrusive
Compared to our current Twin Fan model, PUZ-M100/125 is now a smaller unit for the same capacity. Due to its size it is less obtrusive and more easily hidden from view. Provides flexibility with installations depending on location of the unit.
Easier Transportation & Installation
The PUZ-M100/125 have a 26% reduction in height and 35% reduction in weight, compared to our Twin Fan model. Making it easier to transport and handle during installation.
Description
18.0 kW Cooling
20.0 kW Heating
Large Ducted Systems Power Inverter | Wired Control with Back Light
7 Day Wired Controller (PAR-41MAAM)
A large easy to read display with backlit LCD. Features:
- Weekly timer – 8 patterns up to 7 days
- Auto-off timer
- Temperature range restriction – Limit minimum and maximum to prevent over heating/cooling
- Operation lock
- Multi Language (EN/FR/DE/ES/IT/PT/SV/RU)
Zone Controller
What is Zoning?
Zoning is the ability to turn off a section of your ducted air conditioning system when not in use.
The Mitsubishi Electric Zone Controller expands functionality, delivering conditioned air where you want it in the home/office. With the ability of creating up to 4 or 8 separate zones, why condition air in unoccupied areas?
