-$1,680.04

MITSUBISHI ELECTRIC PEAM140HAAVKIT 14.0 kW Ducted Air Conditioner System 1 Phase

SKU: PEA-M140HAAVKIT

PEA-M140HAA Indoor- 2 Piece Ducted
PUZ-ZM140VKA-A.TH R32 Outdoor – Single Phase
Includes PAR-40MAA Backlit Controller
PEAM140HAAVKIT System
14.0kW Cool / 16.0kW Heat


Ceiling-Concealed (PEA-M HAA Series)
Indoor Unit PEA-M140HAA


Outdoor Unit

PUZ-ZM 140VKA-A
Refrigerant R32
Power supply (V, phase, Hz) Outdoor V:230V, Single-phase, 50Hz Y:400V, Three-phase, 50Hz












Cooling

Capacity [Min-Rated-Max] (kW) 6.2-14.0-15.3
Total Input [Rated] (kW) 4.19
AEER/EER 3.26 / 3.34
AEER [Part-load %] *1
Running Current [Rated] A 18.30




Sound Pressure Level

In (Lo-Mid2- Mid1-Hi) (SPL) *3

35-38-42-45

Out (PWL) 50 (70)
Air Volume

(Lo-Mid2-Mid1-Hi)



L/S *3



700-800-900-1000













Heating

Capacity [Min-Rated-Max] (kW) 5.7-16.0-18.0
Total Input [Rated] (kW) 3.97
ACOP/COP 3.92 / 4.03
ACOP (Part-load %) *1
Running current (Rated) A 17.70




Sound Pressure Level

In (Lo-Mid2 Mid1-Hi) (SPL) *3

35-38-42-45

Out (PWL) 52 (71)
Air Volume In

(Lo-Mid2-Mid1-Hi)

L/S *3 700-800-900-1000
Max. Running Current A 32.20




Indoor Unit

Input (Cool Heat) (Rated) kW *3 0.477 / 0.477

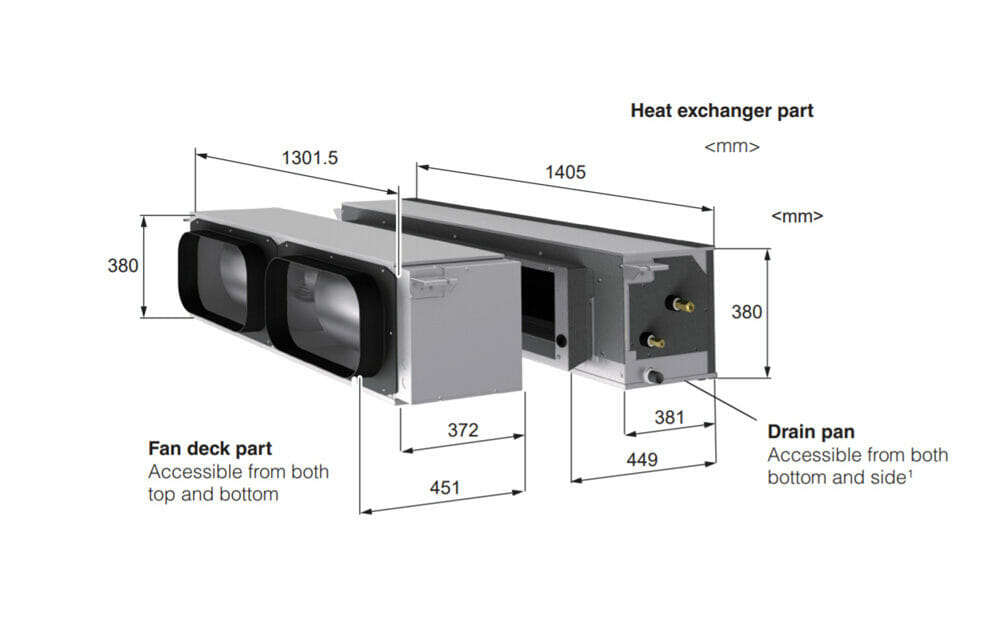

Dimensions [HxWxD] mm 380 x 1405 x 900
Weight kg 66
Static Pressure Pa 50 / 100 /1 50




Outdoor Unit



Dimensions [HxWxD]



mm



1338x1050x330 (+40)

Weight kg 113
Breaker Size A 40


Piping

Diameter [Gas/Liquid] mm 15.88 / 9.52
Max. Length/Height m 75 / 30
Guaranteed Operating Range (Outdoor) Cooling (°C) *2 -5(-15)−52
Heating (°C) -20−21
Supply Air Duct mm 1325 x 266
Return Air Duct mm 2 x 400 (1 x 16”)
Precharge Refrigerant R32 kg 4 (30m)


Additional Refrigerant

Per M (g)

60



Description

14.0 kW Cooling
16.0 kW Heating

New Model
Includes PAR-40MAA Backlit Controller
