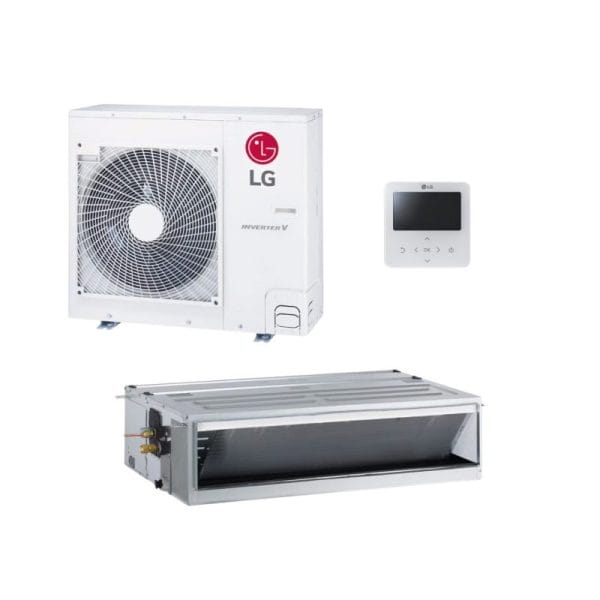

LG UMS85SET 8.0kW Slim Ducted Mid Static Air Conditioner System
$2,829.00
8.0 kW Cooling | 9.0 kW Heating
- LG UMS85SET 8.0 kW Slim Ducted Mid Static Air Conditioner System
- 270mm Slim | Built in Drain Pump | Black Fin
- Indoor UMN85M1 | Outdoor UU85WR3 | System UMS85SET
- Wired Controller Included: PREMTB101
- Google Assistant Compatible with Wi-Fi (optional)
- 5 Years Manufacturer’s Warranty
- Specification
- Features
- Brochure
- Description
- Faqs
- Additional information
- Reviews
| Indoor | UMN85M1 | ||
| Outdoor | UU85WR3 | ||
| Cooling Capacity | Rated 2) | kW | 8 |
| Min ~ Max | kW | 3.10 ~ 9.00 | |
| Heating Capacity | Rated 2) | kW | 9 |
| Min ~ Max | kW | 3.60 ~ 10.10 | |
| AEER | 3.448 | ||
| ACOP | 3.383 | ||
| Rated Current | Cooling | A | 9.9 |
| Heating | A | 11.7 | |
| Full Load Amps | A | 17 | |
| Air Flow Rate | Rated | L/s | 367 |
| Air Flow Rate | Min ~ Max | L/s | 240 ~ 477 |
| External Static Pressure | Min ~ Max | Pa | 25 ~ 147 |
| Indoor | Net (W x H x D) | mm | 900 x 270 x 700 |
| Net Weight | kg | 25 | |
| Cooling ((SH)/H/M/L) | dB(A) | – / 37.0 / 35.0 / 34.0 | |
| Outdoor | Net (W x H x D) | mm | 950 x 834 x 330 |
| Net Weight | kg | 59 | |
| Cooling / Heating (@ 1.5 m height) | dB(A) | 50.0 / 52.0 | |
| Power Supply | Ø, Hz, V | 1, 50 Hz, 220-240 V | |
| Compressor | Type | – | Twin Rotary |
| Motor Type | – | BLDC | |
| Heat Exchanger | Fin Type | – | Wide Louver Plus |
| Corrosion Protection (Coating) | – | Black 2 | |
| Refrigerant | Type | – | R32 |
| Pre-charge Length | m | 10 | |
| Pipe size | Liquid | mm(inch) | Ø9.52 (3/8) |
| Gas | mm(inch) | Ø15.88 (5/8) | |
| Drain Pipe (Drain Pump) OD/ID |
mm(inch) | Ø32 (1-1/4) / 26 (1-1/32) | |
| Piping Length | IDU – ODU (Rated / Max / Min) |
m | 7.5 / 50 / 5.0 |
| Maximum Height Difference | IDU – ODU (Max) | m | 30 |
| Supply Air Opening | H x W, Flange (Discharge) | mm | 200 x 857 |
| Return Air Opening | H x W, Flangeless | mm | 231 x 849 |
| Continuous Operation | Cooling | °C (DB) | -15 ~ 48 |
| Heating | °C (WB) | -18 ~ 18 | |
| Wi-Fi Compatible 4) | Optional |
Key Features
- Wifi Smart control Capability*
- Auto ESP setting
- 270mm Slim & Easy Service Maintenance
- Corrosion Resistance
- Black Fin Coated
- Built In drain pump
Description
8.0kW Cooling
9.0kW Heating
Free Shipping Business Address Only NSW, VIC, QLD
Q1: What are the main features of the LG Slim Ducted Mid Static Air Conditioner System?
The LG Slim Ducted Mid Static Air Conditioner System features a 270mm slim design, Auto ESP setting, built-in drain pump, corrosion-resistant Black Fin coating and wired controller compatibility.
Q2: Is the LG Slim Ducted Mid Static Air Conditioner System suitable for compact installation spaces?
Yes. The LG Slim Ducted Mid Static Air Conditioner System has a 270mm slim design, making it suitable for installations where ceiling or roof cavity space is limited. Its design also allows easier service and maintenance.
Q3: Does the LG Slim Ducted Mid Static Air Conditioner System support Wi-Fi control?
The LG Slim Ducted Mid Static Air Conditioner System offers Wi-Fi smart control capability, providing convenient control through compatible smart technology and supported devices.
Q4: Does the LG Slim Ducted Mid Static Air Conditioner System provide quiet and comfortable operation?
The LG Slim Ducted Mid Static Air Conditioner System is designed to provide consistent air distribution and comfortable indoor conditions, while its ducted configuration helps keep the indoor unit discreetly installed above the ceiling.
Q5: Not sure what size air conditioner you need?
Use our free Air Conditioning Calculator & Size Guide as a starting point to estimate the right capacity for your room or home. Please note this calculator is a guide only — actual requirements may vary depending on your ceiling height, insulation, window size, orientation, and local climate conditions.
For a more accurate sizing recommendation tailored to your specific home or office, we recommend booking a quote with our team. Our air conditioning experts will assess your space and help you choose the perfect Slim Ducted Mid Static Air Conditioner System unit with confidence — ensuring maximum comfort, efficiency, and value for money.
For more information about the Slim Ducted Mid Static Air Conditioner System Series, and available models, click here.
Additional information
| Weight | 91 kg |
|---|---|
| kW | 6.0 |
| Select State | NSW – ACT – QLD – VIC – Price Only, WA – NT – SA – TAS – Price Only |
