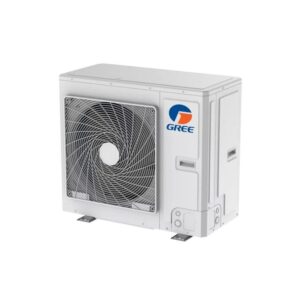

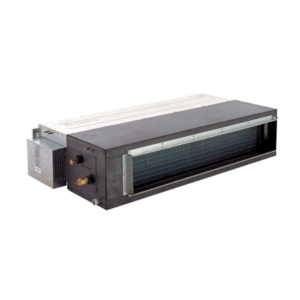

Gree GUD100PHS1/C-S | 10.0kW U-Match Inverter Ducted System 1 Phase
Includes Indoor GUD100PHS1/C-S | Outdoor GUD100W1/NhC-S

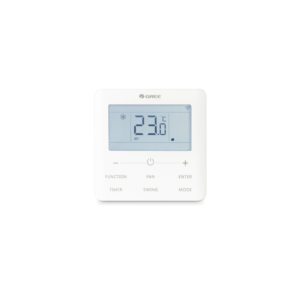

Includes standard controller XE74-24/HC
Wifi Control | 80C Heating | 3D Airflow | Lock | I Feel | Three Sleep Modes
Clock Display | 3DC Inverter | X-fan | Timer |Turbo Button | Self-Diagnosis | Soft Start | LED Display
| Type | U-Match Ducted | |
| Range | U-Match | |
|
Model
|
GUD100PHS1/C-S | |
| GUD100W1/NhC-S | ||
| Performance | ||
| Cooling Capacity (Range) | kW | 10.0 (3.0~11.7) |
| Heating Capacity (Range) | kW | 12.0 (3.6~13.5) |
| Cooling Power Input | kW | 2.7 |
| Heating Power Input | kW | 3 |
| Cooling AEER | W/W | 3.64 |
| Heating ACOP | W/W | 3.9 |
| SERL Star Label | Cool | 4/3.5/4 |
| Hot/Ave/Cold | Heat | 3/2.5/2 |
| Dehumidifying Volume | L/Hr | 3 |
| Air Flow Volume | L/Sec | 583 |
| ESP, Factory set | Pa | 37 |
| ESP, Range | Pa | 0 ~ 160 |
| Sound Pressure (Min/Max) Ind | dB(A) | 40 ~ 42 |
| Sound Pressure / Power Out | dB(A) | 58 / 72 |
| Electrical | ||
| Power Supply | V-Hz-Ph | |
| Recommended Circuit Breaker | A | 32 |
| Nominal Current (Cool / Heat) | A | 12.3 / 13.7 |
| Control Wiring | ||
| Dimensions and Weights | ||
| Indoor Dimensions (WxHxD) | mm | 1340 x 260 x 655 |
| Indoor Net Weight | kg | 43 |
| Outdoor Dimensions (WxHxD) | mm | 940 x 820 x 370 |
| Outdoor Net Weight | kg | 67 |
| Installation | ||
| Operating Temp Range Cool | °C | -15 ~ 52 |
| Operating Temp Range Heat | °C | -15 ~ 24 |
| Refrigerant Type | R32 | |
| Refrigerant Charge | kg | 2.2 |
| Max Pipe Length (pre-charged) | M | 75 (15) |
| Max height | 30 | |
| Additional Refrigerant | g/m | 25 |
| Pipe Connection | 3/8″ ~ 5/8″ | |
|
Plenum Sizes
|
Supply | 215 x 1153 |
| Rtn | 220 x 1188 | |
10.0kW Cooling
12.0 kW Heating
I-Feel Mode | R32 | Wifi
6 Year Warranty
