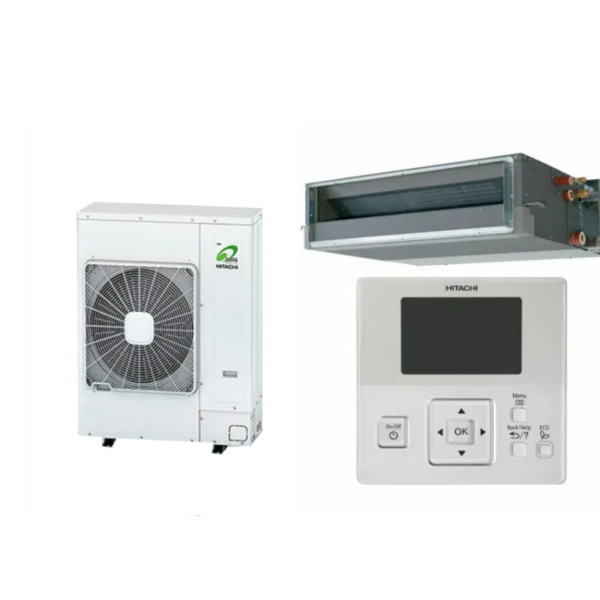

Fully Installed Hitachi RPI-4.0FSN2SQ / RAS-4HVNC1 10.0kW Ducted Air Conditioner System Single Phase

SKU: RPI-4.0FSN25Q / RAS-4HVNC1 /PC-ARF1- | Fully Installed

Fully Installed Hitachi RPI-4.0FSN2SQ / RAS-4HVNC1 10.0kW Ducted Air Conditioner System Single Phase

  • 5 outlets and 2 zones
  • Based on Single Storey dwelling
  • Installed by License and Arctick Certified Installers
  • Outdoor unit to be placed on Concrete slab | PVC Slab | PVC Mounting Blocks.
  • Weatherproof isolator placed at outdoor.
  • Use of PVC or Colourbond Ducts.
  • Includes electrical circuit up to 15 metres.
  • 5 years full manufacturer warranty on Parts and Labour.
  • Sydney, Central Coast, and Newcastle Only.
    *T and C Applies

Hitachi Ducted System RPI-4.0FSN2SQ/RAS-4HVNC1
Indoor

Outdoor

RPI-4.0FSN2SQ

RAS-4HVNC1

Capacity kW
Cooling Capacity

Cooling Capacity Range

Heating Capacity

Heating Capacity Range

10.0

4.5 – 11.2

11.2

5.0 – 14.0

Air Flow l/sec
Air Flow l/s (Hi / Med / Low / S low)

External Static Pa

600 / 550 / 416 / –

120(max)

Energy Efficiency
EER / AEER

COP / ACOP

3.92 / 3.45

4.53 / 4.02

Sound Pressure Level (dB(a))
Indoor Unit (Hi / Med / Low / S low) cooling

Outdoor Unit (Cool / Heat / Night)

48 / 45 / 41 / –



52 / 54 / 50

Dimensions (mm)
Indoor Unit: (H x W x D mm)

Outdoor (H x W x D)

Indoor Unit Separable

Weights: Indoor kg / Outdoor kg

350 x 1076 x 800

1140 x 950 x 370

Yes

57/79

Weights (kg)
Indoor / Outdoor 57/79
Working Range (°C db)
Cooling -5 to 46 °C
Heating -15 to 24 °C
Piping
Pipe Connection Sizes Liquid Ømm / Gas Ømm

Max Pipe Length (m)

Max Pre Charged Length (m)

Max Pipe Lift (m) (Outdoor Above / Outdoor Below)

Refrigeration Connections (Indoor / Outdoor

9.52 / 15.88

70

30

20

Flare Nut / Flare Nut

Air Spigot / Drain Dimensions
Supply Air Spigot (W x H mm)

Return Air Spigot (W x H mm)

Drain dimensions

980 x 220

813 x 306

Ø25

Electrical
Power Supply

Outdoor Unit Max Current

Recommend fuse size

Interconnection Wires mains

Interconnection Wires comms

AC 1 Ph 220 – 240V 50Hz

26

0.75mm2 2C + E(min)

Twisted Pair cable with Shield 0.75mm2 min

Refrigerant R410A



Description

10.0 kW Cooling
11.2 kW Heating

High Static Pressure | R410A Refrigerant
