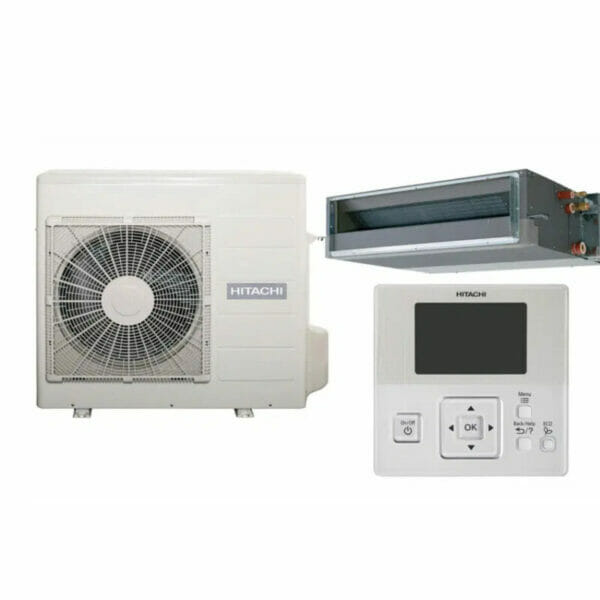

Fully Installed Hitachi RAD-E70YHA / RAC-E70YHA 7.0kW Ducted Air Conditioner System Single Phase
7kw Cooling 8kW Heating R32 E series with wired controller
Inverter System
- 4 outlets and 2 zones
- Based on Single Storey dwelling
- Installed by License and Arctick Certified Installers
- Outdoor unit to be placed on Concrete slab | PVC Slab | PVC Mounting Blocks.
- Weatherproof isolator placed at outdoor.
- Use of PVC or Colourbond Ducts.
- Includes electrical circuit up to 15 metres.
- 5 years full manufacturer warranty on Parts and Labour.
- Sydney, Central Coast, and Newcastle Only
*T and C Applies
| Hitachi Ducted System RAD-E70YHA/RAC-E70YHA | |
| Indoor
Outdoor |
RAD-E70YHA
RAC-E70YHA |
| Capacity kW | |
| Cooling Capacity
Cooling Capacity Range Heating Capacity Heating Capacity Range |
7.0
1.5 – 8.0 8.0 1.5-8.5 |
| Air Flow l/sec | |
| Air Flow l/s (Hi / Med / Low / S low)
External Static Pa |
415 / 325 / 200 / 170
50 ~ 160 |
| Energy Efficiency | |
| EER / AEER
COP / ACOP |
3.34 / 3.32
3.40 / 3.39 |
| Sound Pressure Level (dB(a)) | |
| Indoor Unit (Hi / Med / Low / S low) cooling
Outdoor Unit (Cool / Heat / Night) |
39 / 35 / 32 / 29
50 / 53 |
| Dimensions (mm) | |
| Indoor Unit: (H x W x D mm)
Outdoor (W x H x D) Indoor Unit Separable Weights: Indoor kg / Outdoor kg |
270 x 900 x 720
850 x 850 x 298 No 35/52 |
| Weights (kg) | |
| Indoor / Outdoor | 15/52 |
| Working Range (°C db) | |
| Cooling | -15 to 46 °C |
| Heating | -15 to 24 °C |
| Refrigerant Type | R410A |
| Piping | |
| Pipe Connection Sizes Liquid Ømm / Gas Ømm
Max Pipe Length (m) Max Pre Charged Length (m) Max Pipe Lift (m) (Outdoor Above / Outdoor Below) Refrigeration Connections (Indoor / Outdoor |
6.35 / 15.88 (1/4″ / 5/8″)
30 30 20 Flare Nut / Flare Nut |
| Air Spigot / Drain Dimensions | |
| Supply Air Spigot (W x H mm)
Return Air Spigot (W x H mm) Drain dimensions |
815 x 219
805 x 220 Ø32 |
| Electrical | |
| Power Supply
Outdoor Unit Max Current Recommend fuse size Interconnection Wires mains Interconnection Wires comms |
AC 1 Ph 220 – 240V 50Hz
16 20A 3pcs + Earth 1.5mm2 Refer installation manual |
| Refrigerant | 32 |
Description
7.0 kW Cooling
8.0 kW Heating
Eco Mode | 24/7 time schedule
