FUJITSU ASTH22KMTD 6.0kW Lifestyle Inverter Wall Split System Air Conditioner
Air Conditioning Free Pickup Locations
FUJITSU ASTH22KMTD 6.0kW Lifestyle Inverter Wall Split System Air Conditioner

FUJITSU SET-ASTH22KMTD 6.0kW Lifestyle Inverter Wall Split System Air Conditioner

SKU: SET-ASTH22KMTD / AOTH22KMTD

6.0kW Cooling | 7.2kW Heating
Fujitsu Lifestyle Range SET-ASTH22KMTD Reverse Cycle Inverter Split System Air Conditioner

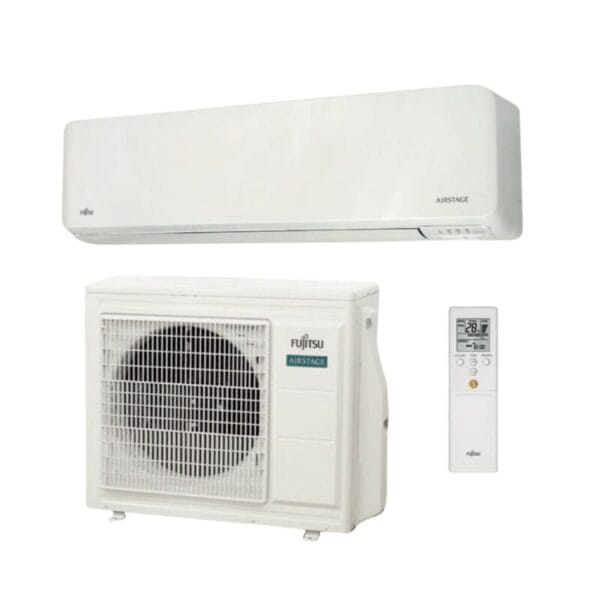

Includes Indoor ASTH22KMTD | Outdoor AOTH22KMTD
Wireless Remote


$1,699.00

Or own it from $65.35 weekly for 6 months* zip money
Or pay in slices, no interest ever
> > > > > >
Indoor unit

Outdoor unit

 ASTH22KMTD

AOTH22KMTD
Operation Type Reverse Cycle
Power Source V/Ph/Hz 230 / 1 / 50
Cooling Capacity kW (Rated (Min – Max)) 6.00 (1.1 – 7.5)
Heating Capacity kW (Rated (Min – Max)) 7.20 (1.1 – 9.4)
Input Power Cooling kW (Rated (Min – Max)) 1.58 (0.24 – 2.72)
Input Power Heating kW (Rated (Min – Max)) 1.7 (0.14 – 2.75)
EER Cooling kW/kW 3.8
COP Heating kW/kW 4.24
Star Rating Cooling (0-10) (Hot / Average / Cold) 4.5 / 4 / 4.5
Star Rating Heating (0-10) (Hot / Average / Cold) 3 / 2.5 / 2
Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold) 6.009 / 5.714 / 6.146
Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold) 4.64 / 4.258 / 3.722
Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold) 6.672 / 7.138 / 8.111
Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold) 4.631 / 4.393 / 3.951
Running Current amps (Cooling / Heating) 7.1 / 7.7
Moisture Removal l/hr 2.3
Indoor Sound Pressure Cooling dBA (High / Quiet) 48 / 29
Indoor Sound Pressure Heating dBA (High / Quiet) 48 / 29
Outdoor Sound Pressure dBA (Cooling / Heating) 49 / 52
Outdoor Sound Power dBA 61
Air Circulation (Indoor – High Fan) Cooling l/sec 294
Air Circulation (Indoor – High Fan) Heating l/sec 300
Indoor Unit Dimensions mm (Height x Width x Depth) 280 x 980 x 240
Indoor Unit Weight kg 12.50
Outdoor Unit Dimensions mm (Height x Width x Depth) 716 x 820 x 315
Outdoor Unit Weight kg 42.00
Piping Connects mm Ø (Liquid / Gas) 6.35 / 12.7
Pipe Length m (Max (Precharged)) 30 (15)
Max Height Difference m 25
Operation Range Cooling °CDB (Min to Max) -10 to 50
Operation Range Heating °CDB (Min to Max) -15 to 24
Refrigerant Type R32

Comfort Functions

  • 10º C Heat Operation The room temperature can be set to go no lower than 10°C, ensuring that the room does not get too cold when not occupied.
  • Up/Down Swing Louvre The up/down louvre automatically swings up and down. Right/Left Swing Louvre¹ The right/left louvre automatically swings in either direction.
  • Double Swing Automatic¹ Complex swing action of the louvres enables them to swing automatically in both horizontal and vertical directions.
  • Automatic Louvre The position of the louvres is set automatically to match the operating mode. It is also possible to adjust the louvres using the remote control.
  • Auto Shut Louvre The auto shut louvres close or open automatically when the unit stops or starts.
  • Automatic Air Flow Adjustment When auto mode is selected for the fan, the micro-processor adjusts the airflow to follow changes in room temperature.
  • Auto Restart Should there be temporary loss of power, the unit will automatically restart itself in the same operating mode, once the power is restored.
  • Auto-Changeover The unit automatically switches between heating and cooling modes based on the temperature setting and room temperature.
  • Powerful Mode Powerful mode will operate the indoor unit fan and outdoor unit compressor at maximum operation to quickly make the room conditioned and comfortable

Convenience Functions

  • Sleep Timer The micro-processor gradually changes the room temperature, allowing you to sleep comfortably at night.
  • Program Timer This timer allows selection of one of four options. ON, OFF, ON ––> OFF, or OFF ––> ON.
  • Filter Sign Set the interval frequency to be reminded to clean the air filter on your unit.
  • On-Off Timer ON-OFF timer can be set to operate once every 24 hours.
  • Weekly Timer Different ON-OFF timers can be set for up to 7 days.
  • Auto-Off Timer² The unit automatically stops operating when a fixed time has elapsed.

FUJITSU ASTH22KMTD 6.0kW Lifestyle Inverter Wall Split System Air Conditioner – Brochure

Description

6.0 kW Cooling
7.2 kW Heating

Human Sensor Inbuilt | Super Quiet Mode
